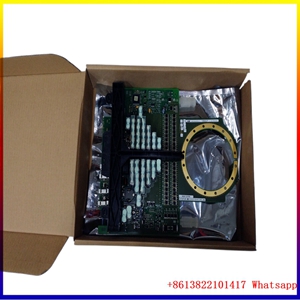

The ABB 086370-001 is a specialized automation control module designed for high-performance industrial applications. This component is primarily associated with ABB’s legacy and specialized power electronics control systems, including the Sami Star and ACV 700 drive families. It serves as a critical processing or interface unit that facilitates deterministic control over motor parameters, power conversion, and system diagnostics.
As a core element in a distributed control architecture, the 086370-001 is engineered to operate in harsh industrial environments where electromagnetic interference (EMI), vibration, and thermal fluctuations are common. It bridges the gap between high-level process commands and field-level execution, ensuring that drive systems respond with millisecond-level precision.
Product Introduction
The 086370-001 module functions as an intelligent node within a larger automation framework. Depending on its specific system configuration, it can act as a pulse encoder interface, a digital signal processing unit, or a communication bridge. Its architecture is built around a robust printed circuit board (PCB) featuring high-grade semiconductors and logic gates optimized for reliability.
In the context of motor control, this module is essential for maintaining the torque and speed accuracy of large AC or DC motors. By processing feedback signals from the field and comparing them against setpoints provided by the main controller, the 086370-001 helps maintain the “health” of the power electronic switches (such as IGBTs or thyristors), preventing overcurrent conditions and ensuring smooth acceleration and deceleration curves.
Product Parameters (Datasheet)
The following parameters represent the typical technical specifications for the 086370-001 module:
| Parameter | Specification |
| Model Number | 086370-001 |
| Manufacturer | ABB |
| Part Type | Automation Control / Drive Interface Module |
| Input Voltage | +5V DC, +/- 15V DC (Supplied via backplane) |
| Processor Type | High-speed Microprocessor/Logic Controller |
| Response Time | < 1 ms |
| Communication Interface | Proprietary Parallel/Serial Bus |
| Operating Temperature | 0°C to +55°C (32°F to 131°F) |
| Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Humidity | 5% to 95% (Non-condensing) |
| Cooling | Forced air or natural convection (System dependent) |
| Mounting Type | Plug-in Card for Subrack/Chassis |
Technical Description & Logic
The 086370-001 utilizes a multi-layer PCB design with integrated circuit (IC) logic designed for Real-Time Execution. Unlike standard IT hardware, this module is “hardened” against the electrical noise generated by high-frequency switching in power converters.
- Galvanic Isolation: The module features optocouplers and isolation transformers to separate the sensitive low-voltage control logic from the high-voltage power components. This prevents field-side faults from destroying the central processing unit.
- Signal Conditioning: It includes filtering circuits to remove high-frequency noise from feedback loops, ensuring that only “clean” data is used for control calculations.
- Self-Diagnostics: The module is programmed to perform power-on self-tests (POST) and continuous monitoring of internal bus health. If a memory or logic error is detected, it communicates a fault signal to the system HMI (Human-Machine Interface).
Country of Origin
- Primary Origin: Finland / Switzerland. (The majority of ABB’s high-power drive and automation engineering for these series was historically centered in Helsinki, Finland, and Turgi, Switzerland).
Product Related News
In recent industrial developments (2025-2026), the 086370-001 has seen a resurgence in demand within the Sustainability and Retrofitting sector. Many heavy industries, such as paper mills and mining operations, are choosing to “evolve” their existing ACV 700 or Sami Star drives rather than undertaking complete system replacements.
ABB has expanded its Legacy Support Program, which provides certified refurbished 086370-001 modules and technical upgrades. The focus is on integrating these older control modules with the ABB Ability™ digital suite. This allows engineers to extract diagnostic data from the 086370-001 and send it to cloud-based predictive maintenance platforms, effectively turning a legacy hardware component into an IIoT (Industrial Internet of Things) data source. This strategy significantly reduces electronic waste and capital expenditure for large-scale industrial plants.
Installation & Maintenance Guidelines
- ESD Protection: The 086370-001 contains sensitive CMOS components. Always wear a grounded anti-static wrist strap when handling the module.
- Backplane Alignment: When inserting the module into a subrack, ensure the card guides are properly aligned. Applying excessive force can bend the high-density pins on the backplane connector.
- Firmware Verification: If replacing an existing module, ensure that the firmware revision on the EPROM (if applicable) matches the version required by the master controller.
- Cleaning: Periodically inspect the module for dust accumulation. Use only non-conductive, dry compressed air to clean the PCB, as dust can act as a bridge for short circuits in high-humidity environments.
Recommended Related ABB Models
For users working with the 086370-001 or similar drive control architectures, the following models are frequently used in the same systems:
- 086318-001: Often used as a companion power supply or auxiliary interface card.
- SDCS-CON-2: A common COB (Control Board) used in DC drive applications that may interface with the 086370 series.
- S800 I/O Series (e.g., DI810, AI810): Modern remote I/O modules used when expanding systems that originally utilized the 086370-001.
- CI854A: A Profibus communication interface module often used to connect legacy drive racks to modern System 800xA controllers.
- PM861 / PM866: The main AC 800M controller CPUs used in the “Evolution” path for older drive systems.
- TP830: The standard baseplate used for mounting and powering the newer generation of ABB control modules.
