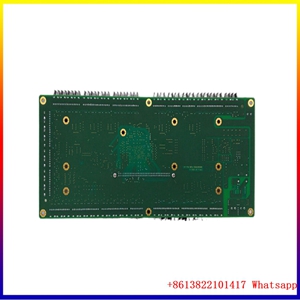

The ABB 70BV05A-ES is a System Bus Controller (also known as a Bus Traffic Director) from ABB’s Symphony Plus HR Series and legacy Harmony/INFI 90 DCS platforms, serving as a critical communication backbone for coordinating data traffic across multi-rack control networks in large-scale industrial automation systems. Designed for high-availability process control, it manages deterministic message routing between controllers, I/O modules, operator stations, and field devices over the high-speed INFI-Net ring topology, ensuring fault-tolerant operation even during cable faults or node failures. With patented store-and-forward ring architecture and multi-master messaging, it supports effective bandwidth exceeding 300 Mbaud while maintaining sub-millisecond latency for time-critical applications like turbine control, burner management, and emergency shutdown systems. The module plugs into standard HR Series racks, enabling seamless integration of legacy INFI 90 hardware with modern Symphony Plus engineering tools for brownfield expansions without full system replacement.
Product Parameters
The 70BV05A-ES operates on a redundant 24 V DC power supply (18-32 V range, typical consumption 15-25 W), drawing from rack backplane or external MPS IV modular power systems for N+1 redundancy. It features dual INFI-Net communication ports (fiber optic or copper, supporting multi-ring topologies up to 62,000 nodes), with automatic failover in under 10 ms via dual-path redundancy and exception reporting to optimize bandwidth usage. Processing leverages a dedicated RISC-class traffic management ASIC for error-checked messaging, multi-cast distribution, and priority queuing, handling up to 10,000 messages/sec with CRC validation and acknowledgment protocols. Physical dimensions are 285 mm W x 152 mm H x 95 mm D (standard HR rack slot), weighing 1.2 kg with IP20 protection and conformal coating for G3 corrosive environments (ISA 71.04). Environmental specs include -20°C to +70°C operating temperature, -40°C to +85°C storage, 5-95% RH non-condensing, 2-5 g vibration (5-150 Hz sinusoidal), 15 g shock (IEC 60068-2-27), and EMI immunity per IEC 61000-6-2/4. Mechanical design supports hot-swappable insertion, with front-panel tri-color LEDs (green=active, yellow=degraded ring, red=fault) and diagnostic ports for loopback testing. Certifications cover CE marking, UL 508/CSA 22.2, SIL 3 capable (IEC 61508), RoHS/REACH compliance, and ATEX Zone 2 for hazardous areas.
Datasheet Overview
Datasheet highlights emphasize deterministic performance with patented ring topology (store-and-forward buffering prevents message loss during faults), supporting simplex or duplex modes for legacy INFI 90 migration. Bandwidth allocation dynamically prioritizes control data over diagnostics, achieving >99.999% availability in dual-ring setups. Communication protocols include native INFI-Net (proprietary high-speed ring), Modbus TCP/RTU passthrough, and IEC 60870-5-104 for SCADA integration. Configuration occurs via Symphony Plus Engineering Workstation or Freelance tools, with downloadable firmware for field upgrades. Isolation ratings provide 1500 Vrms field-to-logic, 500 V continuous channel-to-channel, and surge protection per IEC 61000-4-5 (Level 4). Rack compatibility spans T8100/T8300 chassis (up to 14 slots), with maximum cable lengths of 1000 m fiber/300 m copper per segment. MTBF exceeds 500,000 hours (Telcordia SR-332, GB 25°C), and mean time to repair is <30 minutes hot-swap. Mechanical guidelines specify DIN-rail/panel mounting with 5 mm clearance, torque 1.2 Nm terminals, and fiber connector cleaning protocols. Safety features include automatic ring repair (self-healing in <50 ms), heartbeat monitoring, and watchdog reset for stuck nodes.
Origin
ABB produces the 70BV05A-ES at its primary automation facilities in Finland, where Symphony Plus HR Series hardware benefits from specialized high-reliability network engineering under ISO 9001 and IEC 61508 processes.
Related News
Mid-2025 deployments integrated 70BV05A-ES directors into U.S. LNG terminals under President Trump’s export surge, enabling 62,000-node networks with zero downtime during peak loads. Q4 2025 European chemical plants upgraded for green hydrogen amid EU mandates, slashing latency 40% via dual-ring redundancy. Early 2026 Middle East oilfields retrofitted for digital twins, logging 99.9999% uptime in seismic zones per operator reports.
Recommended Related ABB Models
- 70BV01A
Enhanced traffic director with 10 Gigabit Ethernet bridging for Symphony Plus S+ networks. - NIS21/NPM22
INFI-Net communication modules, extend ring capacity for PCU-to-PCU links. - BRC410
Bridge controller pairs with 70BV05A-ES for legacy-to-modern DCS migration. - SD822/SD832
