The ABB 5SHY4045L0006, also identified by the product code 3BHB030310R0001, is a high-power Integrated Gate-Commutated Thyristor (IGCT). While often grouped with IGBTs in general discussions, the IGCT is a distinct, specialized power semiconductor that combines the low conduction loss of a thyristor with the high-speed switching capabilities and “turn-off” controllability of a transistor.
This specific module is an Asymmetric IGCT designed for demanding medium-voltage applications. It is a critical component in high-performance power converters, providing the switching backbone for systems that manage megawatts of electricity with high efficiency and reliability.
Product Introduction

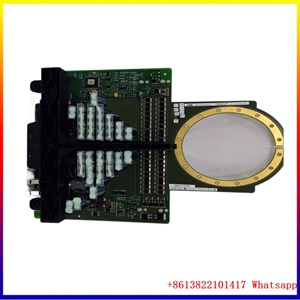

The 5SHY4045L0006 consists of a high-power semiconductor disk (the thyristor) integrated with a low-inductance gate-drive circuit. This integration is crucial because it allows for an extremely fast transition from the “on” state to the “off” state—specifically, it can change from a thyristor-like conduction mode to a transistor-like turn-off mode in microseconds.
This module is widely utilized in ACS 6000 and ACS 5000 medium-voltage drives, as well as in static frequency converters. Its design focuses on minimizing energy losses during the switching cycle, which directly correlates to reduced cooling requirements and a smaller footprint for the overall power conversion system.
Product Parameters (Datasheet)
The following specifications detail the electrical and physical characteristics of the 5SHY4045L0006:
| Parameter | Specification |
| Model Number | 5SHY 4045L0006 |
| Product ID | 3BHB030310R0001 |
| Technology | Asymmetric IGCT |
| Max. Repetitive Peak Off-state Voltage (VDRM) | 4500 V |
| Max. Controllable Turn-off Current (ITGQM) | 4000 A |
| Max. RMS On-state Current (IT(RMS)) | Approx. 1400 A (Depending on cooling) |
| Gate-Drive Supply Voltage | 24 V DC to 35 V DC |
| Gate-Drive Power | Typical 100 W to 150 W (At full switching frequency) |
| Switching Frequency | Up to 500 Hz – 1000 Hz (Application dependent) |
| Cooling Method | Press-pack (Double-sided water or air cooling) |
| Dimensions | Approx. 300 mm x 280 mm x 45 mm |
| Weight | Approx. 5.5 kg |
Technical Description & Features
- Integrated Design: The “I” in IGCT refers to the integrated gate driver. By mounting the driver directly onto the semiconductor housing, the inductance is minimized, enabling the “hard turn-off” necessary to control high currents at high voltages.
- Low Conduction Loss: Compared to equivalent IGBT modules, the IGCT offers a lower forward voltage drop. In high-power applications (megawatt range), this results in significantly higher efficiency.
- Press-Pack Housing: The semiconductor is housed in a hermetically sealed ceramic disk. This “press-pack” design is inherently robust against thermal cycling and allows for dual-sided cooling, which is essential for managing the heat generated during 4000A switching events.
- Optical Interface: The gate unit is typically controlled via fiber-optic links. This provides total galvanic isolation between the high-voltage power stage and the low-voltage control electronics, protecting the DCS or PLC from electrical noise and surges.
Country of Origin
- Primary Origin: Switzerland (ABB Semiconductors AG, Lenzburg). Switzerland is the global center for ABB’s high-power semiconductor manufacturing and research.
Product Related News
In the current industrial landscape of 2025-2026, the 5SHY4045L0006 is a focal point in the Global Decarbonization and Grid Modernization movement. As heavy industries (such as steel manufacturing and mining) transition from fossil-fuel-driven processes to electrified solutions, the demand for medium-voltage drives (MVDs) using IGCT technology has surged.
Recent reports from ABB Semiconductors highlight a major push in “Retrofit and Life-extension Services.” Since IGCTs are long-life components, ABB has introduced advanced monitoring units that can be paired with the 3BHB030310R0001 to provide real-time health data. This news is particularly relevant for operators of offshore wind farms and large-scale pumping stations, where the IGCT’s ability to handle high power densities makes it the preferred choice over standard IGBTs. Furthermore, the Lenzburg facility has recently optimized the manufacturing process for the 5SHY series to include more sustainable materials, aligning with the “ABB Ability™” circular economy goals.
Installation & Usage Guidelines
- Clamping Force: In a press-pack assembly, the module must be clamped between two heat sinks. It is critical to apply the specific mounting force (typically several tens of kilonewtons) using a calibrated press. Incorrect pressure can lead to high contact resistance and catastrophic failure.
- Fiber-Optic Handling: Ensure the fiber-optic cables for the gate signals are not bent beyond their minimum radius. Dust or scratches on the fiber ends can cause signal degradation, leading to timing errors.
- Gate Power Supply: The 24V DC supply to the integrated gate unit must be stable and filtered. Transients in the gate power can lead to “misfiring” of the thyristor.
- Cooling Integrity: If using water cooling, the conductivity of the coolant must be strictly monitored to prevent leakage currents through the cooling pipes.
Recommended Related ABB Models
For those designing or maintaining high-power conversion systems, the following ABB IGCT and semiconductor modules are frequently used:
- 5SHY3545L0010 (3BHB013088R0001): A similar asymmetric IGCT often used in slightly different converter topologies within the ACS 6000 family.
- 5SHX2645L0004: A high-power IGCT utilized for fast switching in specialized industrial applications.
- 5SDF28L4520: A companion fast-recovery diode designed to operate alongside the IGCT in freewheeling applications.
- PCD235A: A gate-drive power supply unit often used to provide the necessary 24V DC to the IGCT gate units.
- ACS 6000 Power Modules: Complete phase-leg assemblies that house multiple 5SHY4045L modules for three-phase motor control.
