ABB NU8976A99 HIER466665R0099 Excitation System Module

Model: ABB NU8976A99 (Sub-codes: HIER466665R0099 / HIEE320693R0001)
Brand: ABB (Switzerland)
Series: UNITROL 6000 / MEGATROL Power Electronics
Core Function: Control and synchronization interface for large synchronous generator excitation systems.
Product Type: Control Interface Module / Firmware Carrier
Key Specs: High-speed digital processing | Fiber optic I/O | Multi-layered PCB

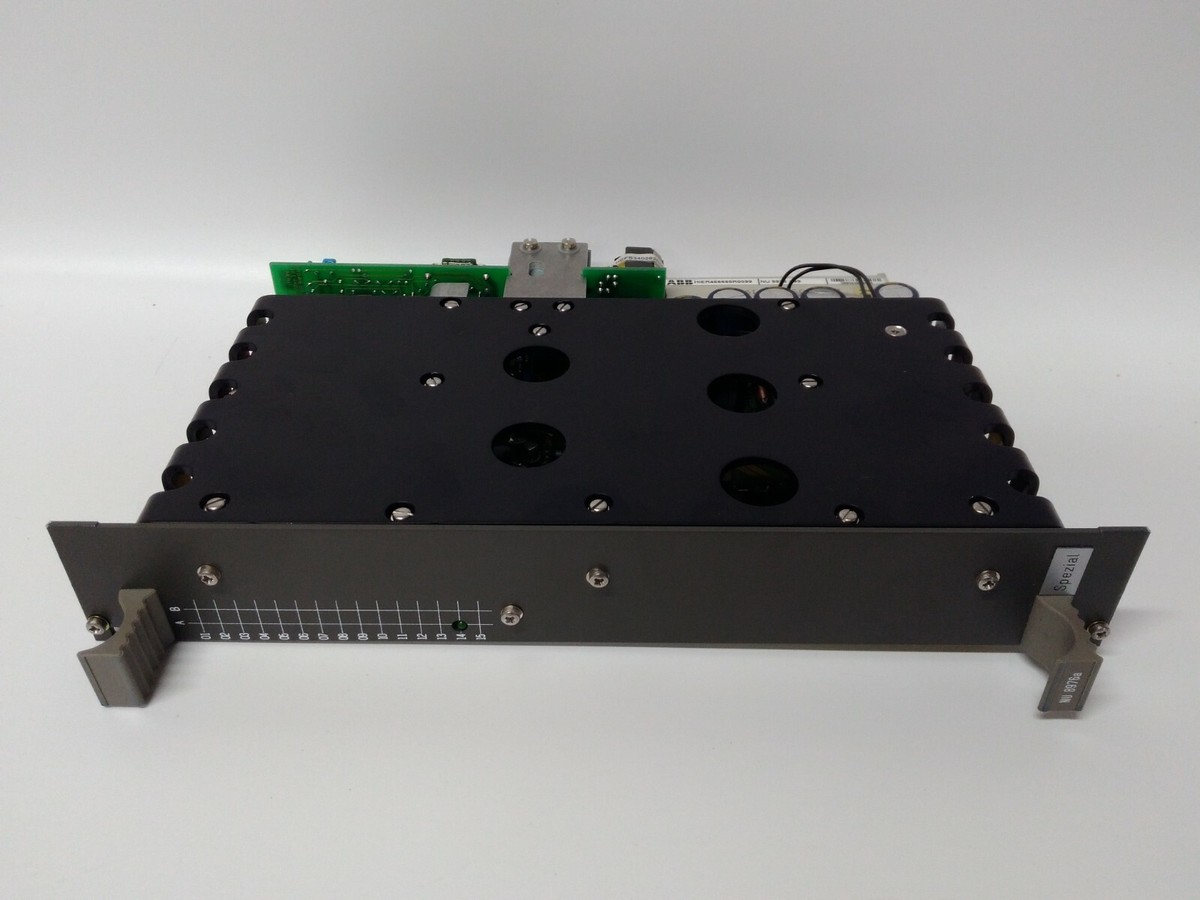

HIER466665R0099

Key Technical Specifications

Operating Voltage: Internal bus powered (typically 24 V DC / 5 V DC logic)
Application: Static Excitation Systems (SES)
Cooling: Natural Convection
Interface: Dedicated backplane connector + Fiber Optic ports
Processor Type: High-performance DSP/FPGA (Model-specific)
Isolation: High-voltage galvanic isolation compliant with IEC 60255
Firmware Slot: Integrated EEPROM/Flash for application-specific parameters
Environment: Rated for Cabinet Mounting (Pollution Degree 2)
Compliance: CE, IEEE 421.1 Standard for Excitation Systems

Application Scenarios & Pain Points

The NU8976A99 is a critical component within the UNITROL 6000 architecture. These systems govern the magnetic field of massive generators in hydroelectric, nuclear, and thermal power plants. In this environment, “small” errors in voltage regulation don’t just cause downtime—they can lead to grid instability or catastrophic generator damage.

Typical Application Scenarios:

Hydroelectric Power Generation Precise control of the excitation current to maintain reactive power limits and terminal voltage stability during load fluctuations.
Thermal Power Plant Modernization Used in retrofitting older analog excitation systems with digital UNITROL 6000 controllers to improve response times.
Synchronous Condensers Managing grid voltage support in substations by controlling the reactive power flow.

Case Study: The “Near-Miss” at a Hydro Station

Background: A 200MW hydro plant was using a UNITROL series system. During a peak demand period, the secondary control loop reported a “Control Deviation” error. The system failed to switch to the redundant channel because the cross-communication module (an older NU8976A99 variant) had failed silently.

The Problem: The plant was forced to run on manual excitation—an incredibly risky maneuver. The OEM lead time for a replacement control board was quoted at 16 weeks due to the specialized nature of the HIER/HIEE series components.

The Solution: We sourced a verified HIER466665R0099 from a decommissioned-but-unused strategic reserve. We provided the specific test report showing the fiber-optic port signal strength was within 0.5 dB of factory specs.

The Result: The module was flown in via specialized courier and installed within 72 hours. The redundancy was restored, and the plant avoided a mandatory shutdown order from the grid regulator.

Compatible Replacement Models

These modules often carry multiple part numbers (NU, HIER, and HIEE). Understanding the hierarchy is vital for procurement.

Part Number	Role	Compatibility	Modification
NU8976A99	Assembly Number	✅ Direct Match	Ensure HIER sub-code matches.
HIER466665R0099	Hardware Revision	✅ Direct Match	Current standard for this revision.
HIEE320693R0001	Base Board	⚠️ Software Dep.	Requires firmware flash to match your system.

System Integrator’s Insight: These boards are rarely “plug-and-play.” Even if the hardware matches, the firmware (the “R” number suffixes) must align with your control version. I always recommend backing up your current parameters using the UNITROL CMT (Commissioning and Maintenance Tool) before swapping this module.

Troubleshooting Quick Reference

Symptom	Likely Cause	Relevance	Action
“Fiber Link Fail” LED	Damaged Fiber or Port	✅ High	Clean fiber tips; check Tx/Rx levels with an optical meter.
Watchdog Reset Alarm	Processor Stall / Heat	✅ High	Check cabinet fans and ambient temp; verify 5V logic stability.
No Pulse Output	Gate Trigger Failure	⚠️ Medium	Check the ribbon cables leading to the thyristor bridges.
Parameter Mismatch	EEPROM Corruption	✅ High	Reload parameters via CMT; check battery backup if applicable.

❗ Technical Trap: The “Invisible” ESD Damage

Excitation control boards like the NU8976A99 are extremely sensitive to Electrostatic Discharge (ESD). I’ve seen technicians handle these boards without a wrist strap, and while the board worked for a month, it failed prematurely due to “latent defects”—microscopic damage to the silicon traces. If your supplier doesn’t ship this in a sealed, high-spec anti-static bag, send it back.
