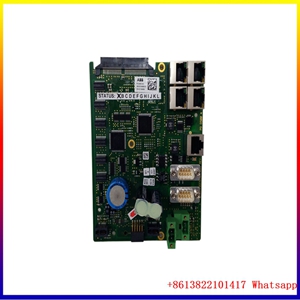

The ABB PFSK142, identified by the product ID 3BSE006505R1, is a high-precision control board designed primarily for the ABB Stressometer flatness control system. The Stressometer system is a world-leading solution used in the metals industry (steel, aluminum, and copper rolling mills) to measure and control the flatness of metal strips during the rolling process.
Product Introduction
The PFSK142 serves as a core processing and control interface within the Stressometer 6.0 and 7.0 systems. Its primary function is to act as a communication and logic hub that interfaces between the high-speed measurement sensors (Pressductor® transducers) located within the measuring roll and the central processing unit of the mill’s control system. The board is engineered to handle real-time data acquisition, signal conditioning, and complex mathematical calculations required to determine the exact tension distribution across the width of the metal strip.
Product Parameters (Datasheet)
| Technical Parameter | Specification |
| Model Number | PFSK142 |
| Product ID | 3BSE006505R1 |
| Device Type | Control / Processor Board |
| System Compatibility | Stressometer 6.0 / 7.0 / 8.0 Systems |
| Processor Architecture | Digital Signal Processor (DSP) based logic |
| Input Channels | Multi-channel sensor interface (Pressductor) |
| Communication Ports | Serial (RS-232/485) and high-speed internal bus |
| Power Supply | +24 V DC (System powered via backplane) |
| Operating Temperature | 0°C to +55°C |
| Humidity | 5% to 95% (Non-condensing) |
| Weight | Approximately 0.48 kg |
| Mounting | Standard ABB module rack / sub-rack |
Technical Description & Features
The PFSK142 is built for deterministic performance. In metal rolling, the strip travels at high speeds; therefore, the control board must process thousands of measurements per second to allow for instantaneous hydraulic adjustments.
- Signal Conditioning: Converts raw analog force signals from the measuring roll into calibrated digital data.
- Thermal Stability: Designed to operate in the harsh environments of cold and hot rolling mills, where ambient temperatures can fluctuate significantly.
- Self-Diagnostics: The board includes sophisticated internal monitoring to detect sensor failures, cable breaks, or internal logic errors, ensuring that the rolling mill does not produce scrap material due to faulty readings.
- Redundancy Support: Often implemented in pairs or as part of a multi-module cluster to ensure maximum uptime for the production line.
Country of Origin
- Origin: Sweden (ABB AB, Force Measurement Division in Västerås/Malmö).
Product Related News
As of 2025-2026, the PFSK142 remains a vital component for the global metals modernization initiative. While ABB has introduced the Stressometer 8.0, many mills continue to rely on the PFSK142 for their existing infrastructure. ABB has recently reinforced its “Lifecycle Management” strategy, ensuring that legacy control boards like the 3BSE006505R1 are available as certified refurbished parts or as part of “Evolution Kits.” These kits allow older Stressometer systems to communicate with the latest ABB Ability™ digital platforms, enabling cloud-based analytics for strip quality without requiring a total mechanical overhaul of the rolling mill.
Installation & Usage Guidelines
- Safety: Before installation, ensure the control rack is powered down. The PFSK142 contains sensitive CMOS components that are susceptible to Electrostatic Discharge (ESD). Always use a grounded wrist strap.
- Addressing: Configure any hardware jumpers or dip switches on the board to match the specific node address required by the system configuration software.
- Backplane Insertion: Align the board with the rack guides and push firmly until the DIN-style connectors are fully seated. Tighten the front-panel captive screws to ensure a proper ground connection.
- Calibration: After replacement, a system-level calibration is required to sync the PFSK142 with the specific force constants of the installed measuring roll.
Recommended Related ABB Models
For those maintaining Stressometer or high-performance force measurement systems, the following related models are frequently used alongside or as successors to the PFSK142:
- PFSK152 (3BSE018877R1): A high-speed signal concentrator board often used in tandem with the PFSK142 for data distribution.
- PFSK151 (3BSE018876R1): A specialized interface board for internal system communication.
- PFSK162 (3BSE015088R1): A modem/communication module used for interfacing with external controllers.
- PFCL201 / PFTL201: Pressductor® load cells used for web tension measurement, often integrated into the same control network.
- PFSA103 / PFSA140: Signal processing units used in specialized force measurement applications.
- 3BSE006503R1 (PFSK140): An earlier version of the control board used in legacy 6.0 systems.
