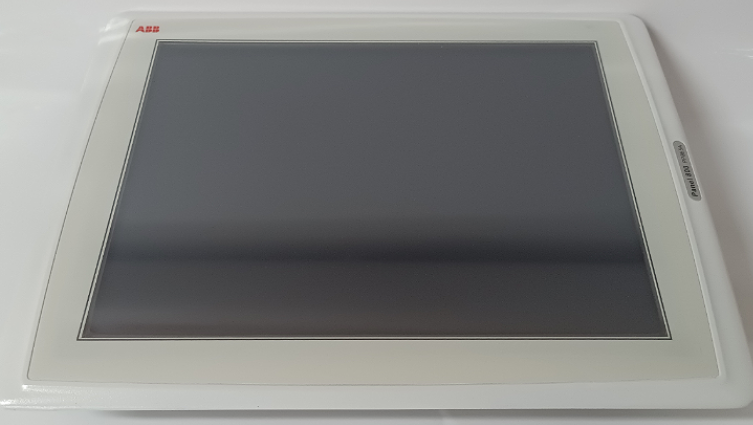

- Model: ABB PP865A (3BSE042236R2)
- Brand: ABB (Sweden)
- Series: Panel 800 Version 5
- Core Function: High-performance Operator Interface (HMI) for industrial process visualization.
- Product Type: Touchscreen Operator Panel
- Key Specs: 12.1″ TFT-LCD | 800 x 600 SVGA | Aluminum Housing | IP66 Front
PP865A 3BSE042236R2
Key Technical Specifications
- Display Type: TFT-LCD, 64k colors
- Screen Size: 12.1 inch diagonal
- Resolution: 800 x 600 pixels
- Processor: Intel Celeron 600 MHz
- Memory: 128 MB Communication / 80 MB Application
- Communication Ports: 2 x Ethernet (10/100 Mbps), 3 x Serial (RS232/422/485), 2 x USB 2.0
- Input Voltage: 24 V DC (18–32 V DC)
- Backlight Life: 50,000 hours
- Configuration Software: Panel Builder 800
- Operating System: Windows CE
Application Scenarios & Pain Points
The PP865A is the industrial “window” into your process. When an HMI fails, the operators are essentially flying blind. You can’t see alarms, you can’t adjust setpoints, and you certainly can’t troubleshoot the PLC. In high-stakes environments like chemical batching or oil refining, a dead touchscreen means an immediate, controlled shutdown of the entire line to ensure safety.
Typical Application Scenarios:
- Oil & Gas – Compressor Stations Monitoring vibration, temperature, and pressure data from AC 800M controllers in remote, outdoor-sheltered environments.
- Food & Beverage – Batch Processing Displaying complex recipe management systems where the IP66 front rating allows for wash-down procedures.
- Marine & Offshore Used in bridge control systems or engine room monitoring due to its robust aluminum construction and vibration resistance.
Case Study: The “Sun-Baked” Display Failure
Background: A solar farm in the high desert used PP865A panels to monitor inverter efficiency. The panels were mounted inside outdoor kiosks that reached internal temperatures of 50°C daily.
The Problem: Over six years, the resistive touch membrane on one unit began to delaminate, causing “phantom touches” where the screen would randomly navigate menus without user input. This eventually led to an accidental emergency stop (E-Stop) being triggered digitally.
The Solution: We provided a New Surplus 3BSE042236R2. Because the client had their project file (.pbp) backed up, the hardware swap took less than 20 minutes.
The Result: By replacing only the HMI rather than upgrading the entire monitoring system to the newer Panel 800 Version 6, the client saved roughly $4,500 in licensing and engineering labor.
Compatible Replacement Models
| Original Model | Replacement | Compatibility | Difference | Modification Required |
| PP865A | PP865 | ✅ Drop-in | PP865 is the older rev (Version 1-4) | May need firmware alignment |
| PP865A | PP885 | ⚠️ Software | Newer Version 6 hardware | Must upgrade Panel Builder software |
| PP865A | PP885H | ❌ Not Recommended | High-brightness version | Physically fits, but excessive cost |
Systems Integrator’s Tip: If you’re replacing an older PP865 (non-A) with this PP865A, check your Panel Builder 800 version. You generally need Version 5.1 or higher to support the “A” hardware revision. If you try to download an old project to new hardware, you might get a “Hardware Mismatch” error.
Troubleshooting Quick Reference
| Symptom | Likely Cause | Spare Related? | Action |
| Black Screen (Power LED On) | Backlight Failure | ✅ High | Shine a flashlight at the screen; if you see ghost images, the backlight is dead. |
| Touch Not Responding | Calibration Loss | ⚠️ Medium | Plug in a USB mouse to navigate to the “Control Panel” and re-run calibration. |
| “No Comm” Message | IP Address Mismatch | ❌ Low | Check if the HMI IP matches the PLC’s expected subnet. |
| Stuck on Boot Screen | Corrupt CompactFlash | ✅ High | The internal memory card may be failing. Replace card and reload project. |
❗ Technical Trap: The Power Connector
I’ve seen it too many times—someone pulls a PP865A out of the panel and forgets to check the 24V polarity on the green terminal block. While the unit has reverse polarity protection, some “cheap” power supplies can spike when shorted, potentially damaging the HMI’s internal fuse. Label your wires before you unplug!
