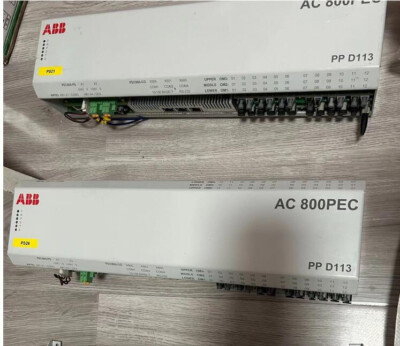

ABB PPD113-B03-10-150000 AC 800PEC Processing Unit

• Model: ABB PPD113-B03-10-150000
• Brand: ABB (Switzerland)
• Series: AC 800PEC (Power Electronics Controller)
• Core Function: High-speed processing unit for controlling power converters and large-scale drives.
• Product Type: Central Processing Module / Controller
• Key Specs: FPGA-based fast control loop | Integrated Ethernet/Fiber ports | 24V DC

Key Technical Specifications

• Processor Architecture: Combination of Industrial PC (COM Express) and FPGA for ultra-fast task cycles.
• Control Cycle Time: Down to 25 microseconds for power electronic regulation.
• Communication Interfaces:
  • 10/100/1000 Mbps Ethernet (Service/TCP/IP)
  • Fiber Optic Links for fast I/O communication
  • RS232/RS485 Serial ports
• Input Voltage: 24 V DC ± 20%
• Memory: High-capacity Flash for OS and application, RAM for real-time data.
• Operating System: Real-time OS (VxWorks or similar depending on firmware).
• Programming: ABB Control IT / PEC Designer (Matlab/Simulink integration).
• Mounting: Rack-mounted or dedicated sub-rack.
• Protection: Industrial grade EMC shielding for high-interference environments.



Application Scenarios & Pain Points

The PPD113-B03-10-150000 is the “brain” of the AC 800PEC system. Standard PLCs are simply too slow to manage the switching frequencies of high-power semiconductors like IGBTs or IGCTs. This module bridges that gap, handling the complex math required for pulse-width modulation (PWM) and grid synchronization in real-time.

Typical Application Scenarios:

1. Wind Power Generation Controlling full-scale converters in multi-megawatt turbines to ensure grid code compliance and efficient energy capture.
2. High-Power Rectifiers Managing massive DC power supplies for aluminum smelting or chemical electrolysis plants.
3. Static Var Compensators (SVC) Rapidly adjusting reactive power on high-voltage transmission lines to stabilize the grid.
4. Traction Power Main control unit for railway converters, managing the high-speed transitions required for locomotive propulsion.

Case Study: The “Surge” at the Smelting Plant

Background: A primary aluminum smelter in the Middle East relied on AC 800PEC controllers for their rectifier stations. During a regional sandstorm, the cooling system partially failed, leading to a thermal trip.

The Problem: Upon restart, the PPD113 unit failed to boot, stuck in a continuous watchdog reset loop. Without this controller, the entire potline (worth millions in daily production) was at risk of “freezing” if power wasn’t restored within hours.

The Solution: The OEM lead time for a specialized PPD113 variant was 20 weeks. We provided a New Surplus unit with the exact hardware suffix (B03-10-150000) from our strategic reserve.

The Result: Our module was air-freighted and arrived within 48 hours. The local team swapped the CompactFlash card from the failed unit into the new one, and the controller synchronized with the grid on the first attempt. The plant avoided a catastrophic “freeze-up” of the smelting pots.



Compatible Replacement Models

The PPD113 suffix (B03-10-150000) is critical. Even minor variations in the suffix can mean different FPGA capacities or interface configurations.

System Integrator’s Note: The AC 800PEC is not a standard AC 800M. While they share some “Control IT” DNA, the PPD series uses a different backplane and programming environment (often involving Matlab/Simulink). Do not attempt to use AC 800M CPU modules in an AC 800PEC rack.



Troubleshooting Quick Reference

❗ Technical Trap: The Suffix Matching

I’ve seen engineers order a “PPD113” without verifying the B03-10-150000 string. These units are often customized at the factory for specific applications (e.g., Wind vs. Traction). If the FPGA logic gate count or the internal memory mapping differs, your application software will fail to load, even if the hardware looks identical. Always verify the full part number on the side sticker.
