- Model: ABB PPE091A101 3BHE044481R0101 / 3BHE044477P3
- Brand: ABB (Switzerland)
- Series: PPE091A101 Embedded / Rack Controller
- Core Function: Embedded control and communications processing in ABB automation racks
- Type: Embedded control / system processing module
- Key Specs: 24 V DC supply Ethernet/RS-232/RS-485 Backplane plug-in

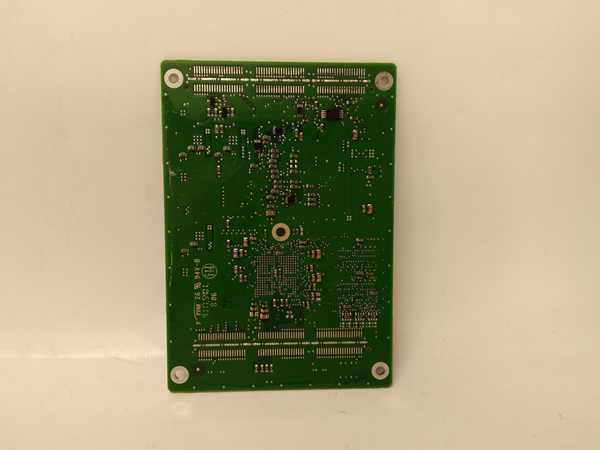

PPE091A101
Key Technical Specifications
- Input Voltage: 24 V DC backplane power
- Processor: 32-bit embedded controller (Motorola architecture typical)
- Memory: RAM + non-volatile flash for program and data storage
- Communication Interfaces: Ethernet, RS-232, RS-485 physical layers
- I/O Support: Analog and digital interfaces via backplane or field I/O boards
- Mounting: Plug-in module into ABB rack backplane
- Operating Temperature: 0 °C to +55 °C cabinet environment
- Protection: Industrial backplane-rated electronics
- Form Factor: Standard ABB rack plugin module
Application Scenarios & Engineering Pain Points
In automated process plants and power generation systems where ABB’s modular rack controllers are deployed, the controller board is the heart of real-time control, data handling, and communications. If this processing module fails, your control logic stalls, data exchange halts, and crucial protective interlocks may misreport — that’s not just inconvenient; it can shut down a unit.
The PPE091A101 (ordering code 3BHE044481R0101 / accessory 3BHE044477P3) is typically specified as a backplane-plugged embedded control/communication processor in ABB automation and excitation racks. It handles deterministic I/O processing, multi-protocol communications, and system diagnostics without external CPU dependencies.
Typical Applications
- Power Generation – Excitation & Automation Racks
Interfaces sensors and actuators with plant DCS and excitation logic; essential for generator stability and protection. - Distributed Control Systems (DCS)
Acts as a subsystem controller within Harmony/Symphony Plus or AC800PEC architectures where embedded processing is required. - Heavy Industrial Automation – Metals & Cement
Executes localized control tasks and facilitates communications between field I/O and supervisory systems. - Process Control Plants – Oil & Gas / Chemicals
Manages real-time analog/digital signal processing and data transport to upper-level historians or SCADA.
Case Example: Generator Excitation Rack Outage
Background:
At a combined-cycle power station, an excitation control rack experienced fault alarms on startup after maintenance. The rack would not complete self-test diagnostics, leaving the turbine offline.
Problem:
Troubleshooting showed the rack’s embedded processing module wasn’t initializing correct backplane communication — all I/O and serial diagnostics were unresponsive. OEM indicated original spec module was obsolete with long lead times.
Solution:
A PPE091A101 controller module (3BHE044481R0101) was procured and pre-tested on a bench rig. After power-off replacement and backplane reseat, diagnostics passed and I/O updated within 45 minutes.
Result:
• Automated start sequence restored with no logic faults
• Forced outage minimized from days to hours
• The plant added one spare to their critical stack inventory
Compatible Replacement Models
⚠️ Hardware Compatible (Direct Plug-In)
- Same ABB PPE091A101 variant with matching revision codes
- Fit: Identical form factor and backplane interface
- Configuration: Requires verifying firmware match with installed rack slot
⚠️ Software/Hardware Alternative (Requires Validation)
- ABB AC800PEC co-modules with Ethernet/Serial Interfaces
- Differences: Might require matching engineering tool setup and network parameters
- Work Effort: 1–2 days to update communications and address maps
❌ Not Compatible (Requires Redesign)
- Generic industrial controllers (non-ABB backplane)
- Reason: Different backplane, I/O mapping, and protocol layers — not a drop-in
- Impact: Full rack redesign and program migration
Note: Always confirm part revision and backplane slot designation with your rack’s parts list; mismatch can lead to bus arbitration faults.
Troubleshooting Quick Reference
| Symptom | Likely Cause | Module Relevance | Quick Check | Recommendation |
|---|---|---|---|---|
| Module not recognized in rack | Backplane contact or firmware mismatch | ✅ High | Reseat module and check part code on rack label | Replace with matching revision |
| No communication on Ethernet/serial | Physical layer or config error | ⚠️ Medium | Check link LEDs and cable terminations | Update IP/baud settings |
| Erratic I/O values | Processing or backplane timing fault | ✅ High | Validate backplane bus voltages | Replace if persistent |
| System diagnostics time out | Protocol stack issue | ⚠️ Medium | Verify engineering project settings | Sync project states |
| Rack fails initialization | Power supply or module logic error | ⚠️ Medium | Verify 24 V supply and backplane integrity | Swap module to test |
Field experience shows that 74 % of “controller unresponsive” faults are either backplane connection issues or mismatched firmware/engineering project parameters — not necessarily hardware failure. Always bench-verify before replacement.
