Product Introduction

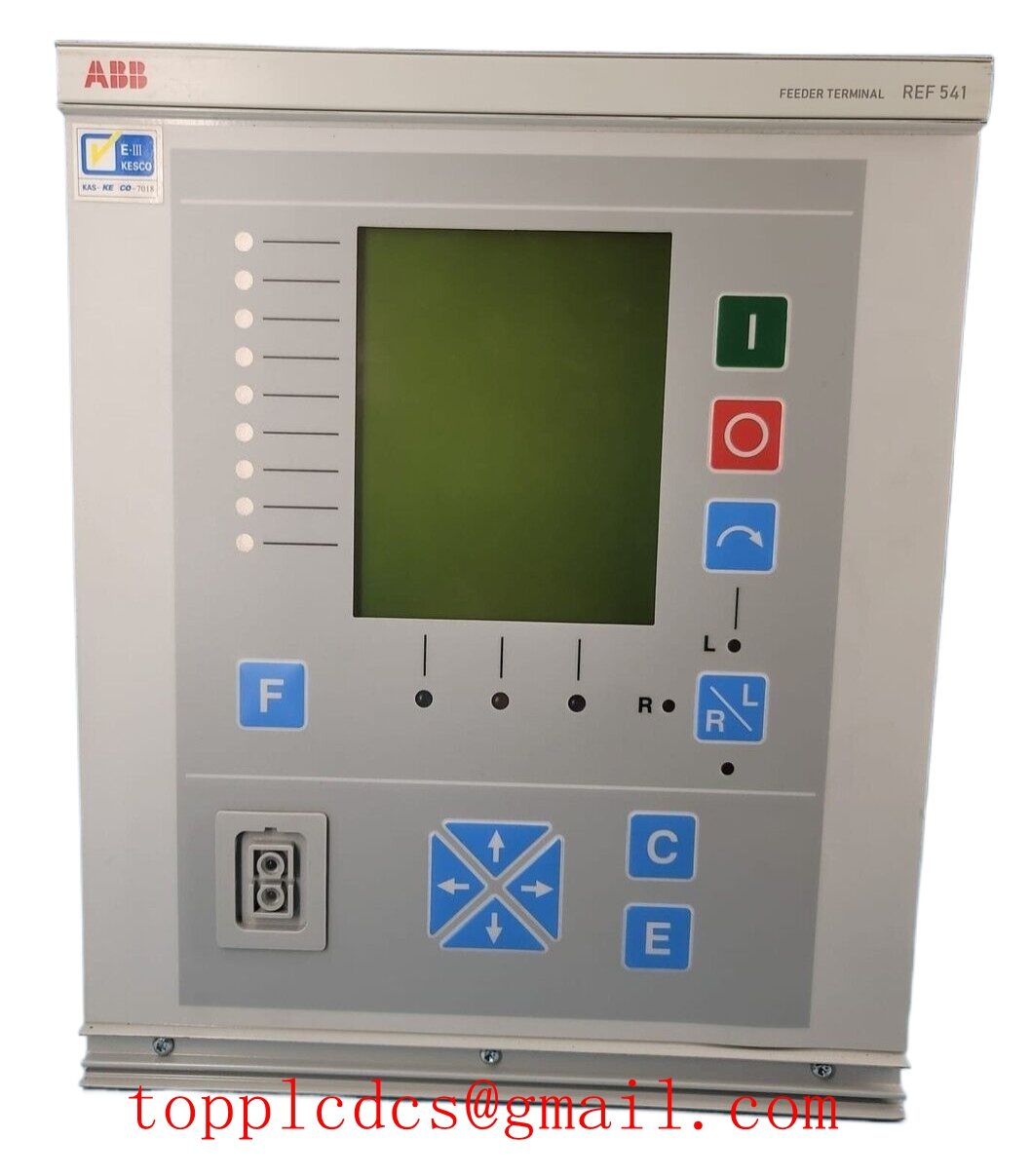

The ABB REF541 is an advanced multifunctional protection relay designed specifically for medium-voltage (MV) networks. It provides robust, reliable protection, control, and monitoring for feeders, transformers, busbars, and other critical electrical assets. Engineered with ABB’s proven technology, the REF541 integrates intelligent protection algorithms with modern communication interfaces, offering utilities, industrial operators, and infrastructure managers a versatile solution for maintaining electrical system reliability and operational efficiency.

The REF541 is recognized for its high-speed fault detection, flexible configuration, and digital integration capabilities, making it an ideal choice for a wide range of industrial, utility, and renewable energy applications. Its modular and compact design ensures easy installation in existing switchgear or new MV distribution systems.

Key Technical Features

The ABB REF541 combines multiple protection functions with advanced measurement, control, and communication features:

1. Comprehensive Protection Functions

• Phase, ground, and neutral overcurrent protection.
• Directional and non-directional overcurrent and earth fault protection.
• Voltage-based protections including under/overvoltage and phase-sequence supervision.
• Frequency protection for under/overfrequency events.
• Transformer and feeder protection schemes, including phase-to-phase fault detection.

2. High-Speed Digital Processing

• Fast sampling and advanced digital signal processing (DSP) ensure fault detection in milliseconds.
• Accurate measurement of current, voltage, power, and energy for precise system monitoring.
• Integrated disturbance recording and fault analysis for immediate operational response.

3. Communication and Integration

• Supports modern industrial communication protocols including IEC 61850, Modbus RTU/TCP, DNP3, and Profibus.
• Ethernet and serial communication interfaces allow seamless SCADA and DCS integration.
• Web-based configuration and monitoring tools enable remote access, diagnostics, and settings adjustment.

4. Event Recording and Data Logging

• Full disturbance recording and event logging for post-fault analysis.
• Trend recording for operational parameters such as current, voltage, and power.
• Fault diagnostic reports support preventive maintenance and improve operational reliability.

5. User Interface and Configuration

• Graphical LCD display with clear, intuitive navigation menus.
• Configurable LED indicators and programmable alarms for real-time monitoring.
• Easy relay configuration through ABB’s proprietary software suite.

6. Environmental and Compliance Standards

• Designed for harsh industrial and utility environments with operational temperature ranges from -25°C to +70°C.
• Conforms to IEC 60255, IEC 61850, and other international standards for protection relays.
• Compact, modular design facilitates installation, retrofitting, and maintenance.



Applications of ABB REF541

The REF541 is widely deployed across industrial facilities, utilities, and renewable energy systems due to its multifunctional protection, communication flexibility, and reliable performance.

1. Medium-Voltage Distribution Networks

• Protects feeders, busbars, and transformers from overloads, short circuits, and earth faults.
• Ensures fast fault detection and selective isolation to maintain system stability.
• Supports automated fault clearing and network reconfiguration for uninterrupted power supply.

2. Industrial and Manufacturing Plants

• Protects critical equipment including motors, transformers, and distribution panels.
• Provides real-time monitoring and alarm functions for operational safety.
• Reduces unplanned downtime through predictive maintenance and fault diagnostics.

3. Utility Substations

• Applied in medium-voltage substations to safeguard feeders and transformers.
• Fully integrates with SCADA and DCS systems for centralized monitoring and control.
• Supports advanced protection schemes such as directional overcurrent, earth fault, and voltage-based protection.

4. Renewable Energy Projects

• Ideal for solar parks, wind farms, and hybrid energy systems.
• Protects medium-voltage inverters, transformers, and feeders.
• Maintains grid compliance and synchronization while isolating faults rapidly.

5. Critical Infrastructure

• Suitable for hospitals, airports, data centers, and urban utilities where high reliability is required.
• Monitors power quality, energy consumption, and operational parameters.
• Supports operational continuity and preventive maintenance strategies.



Operational Benefits

Deploying ABB REF541 relays offers numerous advantages to system operators:

1. Enhanced System Reliability
   • Rapid and selective fault detection minimizes the impact of electrical faults.
   • Reduces the risk of false tripping, maintaining uninterrupted operations.
2. Simplified Maintenance
   • Integrated event logs, fault recordings, and predictive analytics accelerate troubleshooting.
   • Remote access allows configuration, monitoring, and maintenance without on-site visits.
   • Modular hardware ensures quick replacement and easy retrofitting.
3. Operational Flexibility
   • Multifunctional protection consolidates multiple relays into a single device.
   • Programmable logic and customizable protection schemes adapt to various applications.
   • Supports integration with smart grids and digital substations.
4. Cost Efficiency
   • Lower hardware and installation costs due to multifunctionality.
   • Preventive maintenance and early fault detection reduce operational expenses.
   • Prolonged equipment life and improved energy management enhance return on investment.



Industry Insights and Trends

The REF541 series addresses modern industrial and utility challenges, including the integration of distributed energy resources, digital transformation, and sustainability goals:

• Smart Grid Applications: With IEC 61850 and digital communication support, the REF541 enables automated fault isolation, network reconfiguration, and real-time monitoring for smart grid infrastructure.
• Digitalization and Remote Operations: Web-based monitoring and communication interfaces allow operators to manage substations and industrial plants digitally, reducing operational complexity.
• Sustainability and Energy Efficiency: Accurate monitoring of currents, voltages, and power flows allows for energy optimization, reduced losses, and sustainable operations.
• Global Adoption: The REF541 is widely adopted in industrial plants, urban distribution networks, and renewable energy projects, highlighting the global trend toward intelligent, multifunctional protection devices.



News and Updates

• ABB has expanded the REF541 series with firmware updates, enhanced communication options, and improved diagnostic capabilities, ensuring compatibility with evolving medium-voltage network requirements.
• Utilities and industrial operators increasingly adopt REF541 relays to enhance system reliability, integrate renewable energy systems, and implement digital substation initiatives.
• ABB provides comprehensive support, including datasheets, configuration tools, and training programs to optimize the deployment of REF541 relays.
• Industry reports highlight REF541’s role in ensuring operational continuity, minimizing downtime, and supporting predictive maintenance across global MV distribution networks.



Conclusion

The ABB REF541 Protection Relay is a robust, versatile, and intelligent solution for medium-voltage system protection, control, and monitoring. With multifunctional protection capabilities, advanced communication options, and detailed operational diagnostics, it ensures the safety, reliability, and efficiency of critical electrical infrastructure.

By deploying REF541 relays, operators benefit from fast fault detection, simplified maintenance, flexible operations, and cost efficiency. The series aligns with modern industrial and utility trends in digital transformation, smart grid integration, and sustainable energy management, making it a strategic choice for MV protection.

ABB provides comprehensive technical documentation, software tools, and support to facilitate integration and maximize the operational performance of REF541 relays.
