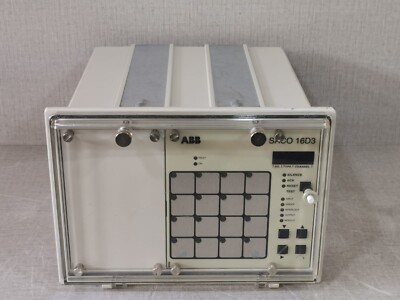

ABB SACO 16D3 RS 811 163-AA Digital Annunciator Unit

• Model: ABB SACO 16D3 (RS 811 163-AA / SACO16D3AA358)
• Brand: ABB (Finland / Distribution Automation)
• Series: SACO Alarm Systems
• Core Function: Centralized digital alarm annunciation for substations and industrial power plants.
• Product Type: Digital Annunciator Unit (16 Channels)
• Key Specs: 16 Alarm Channels | Serial Communication (SPA Bus) | LED Visual Indicators

Key Technical Specifications

• Input Channels: 16 independent digital alarm channels
• Auxiliary Voltage: 110/120/220/240 V AC or 110/125/220 V DC (dependent on suffix)
• Communication Protocol: SPA-bus (Serial) for integration with SCADA/DCS
• Indicators: 16 red LED alarm lamps + 1 green Power LED
• Input Delay: Adjustable per channel (typically 5 ms to 160 s)
• Output Relays: 2 signal relays (group alarms) + 1 self-supervision (IRF) relay
• Sequence Modes: Supports multiple flash/reset sequences (ISA standards)
• Enclosure: 19-inch rack mount or flush mounting in panel cutouts
• Resolution: 1 ms event recording (when integrated via SPA bus)



Application Scenarios & Pain Points

In power transmission and heavy industry, the SACO 16D3 is the critical “eye” of the protection system. While modern HMIs are great, local hard-wired annunciators are often required by safety regulations because they provide an immediate, foolproof visual of the fault—even if the network or SCADA computer crashes. If this unit fails, operators might miss a critical cooling pump failure or a transformer over-temperature alarm, leading to catastrophic equipment damage.

Typical Application Scenarios:

1. Electrical Substations Monitoring relay trips, circuit breaker positions, and SF6 gas pressure alarms.
2. Power Plant Control Rooms Providing local backup annunciation for critical boiler or turbine interlocks.
3. Marine & Offshore Power Monitoring generator health and switchgear status in high-vibration engine room environments.

Case Study: The “Blind” Substation

Background: A regional utility provider in Southeast Asia used SACO 16D3 units in several unmanned 33kV substations. During a monsoon-driven lightning strike, the auxiliary power surge damaged the communication board of a frontline annunciator.

The Problem: The SCADA system stopped receiving updates from that site. The maintenance team could see “Substation Offline” on their screens, but when they arrived on site, the local annunciator was dead—no LEDs, no relays. They were effectively blind to the status of the breakers.

The Solution: We supplied a verified SACO16D3AA358 with the exact RS 811 163-AA hardware revision. Since these units use the SPA-bus protocol, we helped the client confirm the slave address settings.

The Result: The unit was replaced, and the communication handshake with the central SCADA was restored within 10 minutes of installation. The utility avoided a manual “walk-down” of every breaker, saving hours of hazardous work in the storm.



Compatible Replacement Models

The SACO series has many variants based on input voltage and channel density. The RS 811 163-AA code is your best bet for a perfect match.

Systems Integrator’s Insight: These units often feature an “Internal Relay Failure” (IRF) contact. If you are integrating this into a new panel, always wire the IRF contact to a master alarm. It’s the only way to know if the annunciator itself has failed.



Troubleshooting Quick Reference

❗ Technical Trap: Input Voltage Matching

The SACO 16D3 comes in different versions for different wetting voltages (e.g., 24V, 48V, 110V, or 220V DC for the alarm inputs). If you install a 48V unit into a 110V system, you will smoke the input opto-isolators the moment the first alarm triggers. Always check the “Uin” rating on the side label before connecting field wiring!
