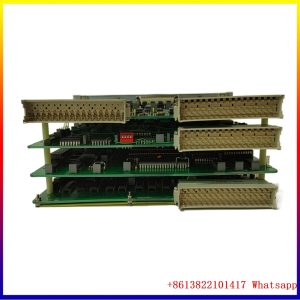

The ABB UAA326A04, identified by the part number HIEE300024R4, is a high-reliability power supply and interface module primarily used within the UNITROL 5000 and MEGATROL excitation and static frequency converter (SFC) systems. This module is a critical component for power plant automation, specifically designed to provide stable DC power and signal isolation for control electronics.
Product Introduction
The UAA326A04 belongs to the specialized family of ABB power electronics components developed for large-scale synchronous machine control. In a power generation environment, the excitation system must maintain the magnetic field of the generator. The UAA326A04 supports this by acting as a robust power distribution hub, converting primary AC or DC supply voltages into regulated, low-noise DC levels required by the system’s sensitive microprocessors and gate-drive units.
Beyond power conversion, the HIEE300024R4 serves as a vital signal interface. It facilitates the flow of diagnostic data between the power modules and the central control unit. Its design prioritizes “fault tolerance” and “long-term stability,” ensuring that even under high electromagnetic interference (EMI) conditions common in power plants, the control signals remain pure and the power supply remains uninterrupted.
Product Parameters (Datasheet)
The following technical specifications represent the operational characteristics of the UAA326A04 module:
| Parameter | Specification |
| Model Number | UAA326A04 |
| Part Number | HIEE300024R4 |
| Input Voltage Range | 115V / 230V AC or 110V / 220V DC (System dependent) |
| Output Voltage | Regulated +5V DC, ±15V DC, and +24V DC |
| Output Current | Optimized for driving up to 8 control cards |
| Isolation Voltage | 2.5 kV RMS (Input to Output) |
| Efficiency | > 85% at full load |
| Protection | Overvoltage, Short-circuit, and Thermal protection |
| Cooling | Natural convection or forced air (via rack fans) |
| Mounting | Standard ABB Power Electronics Subrack |
| Weight | Approx. 1.85 kg |
| Operating Temperature | -10°C to +70°C |
Country of Origin
- Origin: Switzerland
ABB’s Power Electronics and Excitation systems division is centered in Turgi/Baden, Switzerland. The UAA326A04 is manufactured and rigorously tested in this facility, ensuring it meets the stringent European safety and performance standards required for international power grid applications.
Technical Description & Features
The UAA326A04 HIEE300024R4 is built using high-grade industrial components to ensure a long service life, often exceeding 20 years.
- Redundant Power Support: In many configurations, two UAA326A04 modules are used in parallel. If one unit fails, the other can take over the full load without causing a system reset or trip.
- EMI/EMC Shielding: The module is housed in a metal casing that acts as a Faraday cage. This is essential in excitation systems where thyristor switching generates significant high-frequency noise.
- Soft-Start Capability: To prevent inrush current from damaging the backplane or upstream breakers, the module includes an integrated soft-start circuit.
- Diagnostic Feedback: The module communicates its internal health status to the main AC 800PEC or PSR controller. If an output voltage drifts outside of the ±5% tolerance, an alarm is triggered in the DCS (Distributed Control System).
Product Usage Instructions
1. Pre-Installation Inspection
Before installing the module into the rack, check the HIEE300024R4 for any visible shipping damage. Verify that the jumpers (if any) are set according to your specific system voltage (e.g., 115V vs 230V).
2. Mounting and Connections
- Subrack Insertion: Slide the module into its designated slot in the power electronics frame. Ensure the DIN connectors at the rear are fully seated.
- Grounding: Tighten the front panel screws. These screws are not just for mechanical stability; they provide the primary path for the module’s ground connection to the rack.
- Wiring: Connect the input supply cables to the designated terminals. Ensure that high-voltage input wires are physically separated from low-voltage DC output wires to minimize noise.
3. Powering Up
When the primary power is applied, the “OK” or “Power On” LED on the front panel should illuminate green. If the “Fault” LED turns on, immediately disconnect power and check for a short circuit on the DC distribution bus.
Product Related News
- UNITROL 5000 Support Extension: ABB has recently confirmed extended support for the UNITROL 5000 platform through 2030. This ensures that genuine spare parts like the UAA326A04 (HIEE300024R4) will remain in production and in stock for global maintenance cycles.
- Supply Chain Resilience: Due to the critical nature of these modules in the global energy sector, ABB has increased its strategic inventory of the UAA326 series in its regional hubs (Singapore, Houston, and Dubai) to reduce lead times for emergency power plant repairs.
- Retrofit Success: Several major hydroelectric plants in South America have recently completed retrofits where legacy UAA units were replaced with the latest HIEE300024R4 revision, resulting in improved system diagnostics and reduced unplanned downtime.
Common Problems Q&A
Q: Can I replace a UAA326A01 with a UAA326A04? A: Generally, yes. The A04 is the latest revision and is designed to be backwards compatible with earlier versions like the A01 or A02. However, always verify the specific jumper settings for your system voltage before installation.
Q: Why is my UAA326A04 outputting 0V despite having input power? A: Check the internal fuse or the thermal cutoff. If the module has overheated due to a fan failure in the rack, it will automatically shut down. Allow it to cool and check the ventilation before restarting.
Q: What does a flashing yellow LED signify? A: On some revisions, a flashing yellow LED indicates that the module is operating at its maximum current limit. This may happen if a downstream card has a partial short or if the load has exceeded the module’s rating.
Q: Does this module require software configuration? A: No. The UAA326A04 is a hardware-level power and interface module. All “intelligence” is handled by the connected controller cards, although the module does report its hardware status to the software.
Recommended Related ABB Models
- ABB UNS0882A-Z (HIEE300882R0001): A universal control and interface board often used in the same UNITROL racks.
- ABB SDCS-POW-4: Power supply board for larger DC drive and excitation systems.
- ABB 3BHE022293R0101 (PCD232A): A communication and I/O module frequently found in UNITROL 6000 systems.
- ABB UNS0885A-Z: High-speed measurement and signal processing card.
- ABB AC 800PEC: The high-performance controller that serves as the “brain” for systems using the UAA326A04.
