The ABB UNITROL 1020 is a state-of-the-art Automatic Voltage Regulator (AVR) designed to provide precise excitation control and voltage regulation for synchronous generators in power generation applications. Part of ABB’s UNITROL product family, the 1020 AVR offers high-speed, reliable, and accurate control, ensuring optimal generator performance, grid stability, and operational efficiency in industrial and utility power systems.
UNITROL 1020 is engineered for thermal, hydro, and gas turbine generators, as well as hybrid and distributed energy systems. By providing fast, stable voltage regulation, the system protects generators from over- and under-voltage conditions, enhances power quality, and ensures compliance with international grid codes. It is particularly suited for retrofit projects, modernization of legacy excitation systems, and new installations in small to medium-sized power plants.
ABB has developed the UNITROL 1020 AVR to deliver a compact, modular, and flexible solution, capable of interfacing with a wide range of generators, protection relays, and plant automation systems. Its proven reliability and ease of integration make it a preferred choice for power generation operators seeking enhanced stability, operational safety, and reduced maintenance requirements.

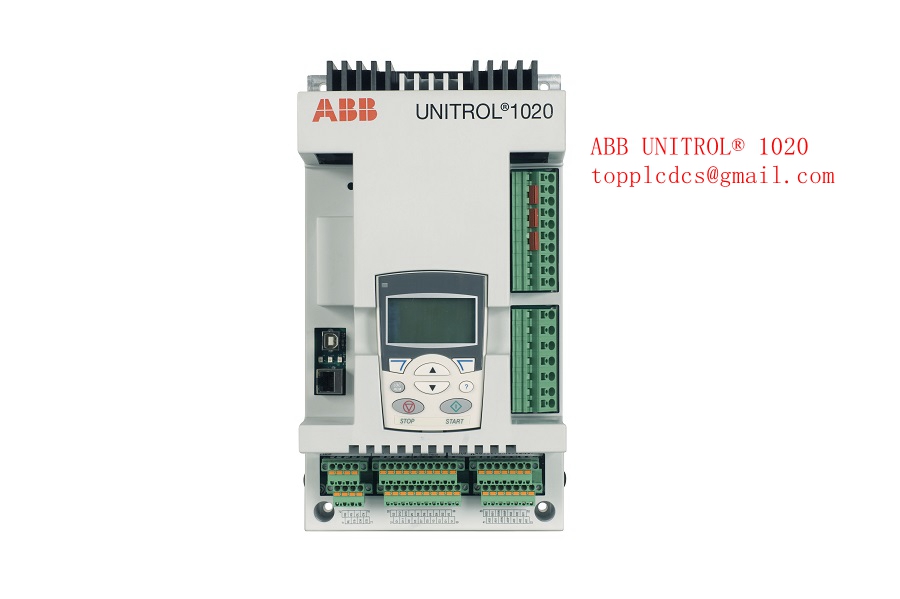

ABB UNITROL® 1020
ABB UNITROL® 1020 User Manual Automatic Voltage Regulator
Key Technical Features
The ABB UNITROL 1020 integrates multiple advanced features to optimize generator excitation, control, and protection:
1. Precise Voltage Regulation
- Maintains generator terminal voltage within tight tolerance limits under varying load conditions.
- Supports automatic control of generator field excitation to stabilize output voltage.
- Minimizes voltage fluctuations, ensuring high-quality power delivery and grid compliance.
2. Fast and Reliable Excitation Control
- High-speed digital control loops respond rapidly to load changes, disturbances, and transient events.
- Prevents generator over-excitation and under-excitation scenarios that can damage equipment.
- Supports both single-unit and multi-unit generator installations.
3. Comprehensive Protection Functions
- Generator protection against overvoltage, undervoltage, overcurrent, and field overexcitation.
- Integrated excitation system monitoring for temperature, voltage, and current to prevent damage.
- Supports emergency shutdown (ESD) and tripping sequences to safeguard personnel and equipment.
4. Communication and Integration
- Supports multiple industrial communication protocols: Modbus, Profibus, DNP3, and IEC 61850.
- Interfaces seamlessly with SCADA, DCS, and plant automation systems for centralized monitoring and control.
- Enables remote monitoring, configuration, and diagnostics through digital communication channels.
5. Modular and Scalable Design
- Compact hardware footprint suitable for generator control panels and retrofit applications.
- Modular construction allows expansion with additional input/output channels or communication modules.
- Flexible configuration to support a wide range of synchronous generators, from small industrial units to medium-sized utility generators.
6. Advanced Monitoring and Diagnostics
- Real-time monitoring of generator voltage, current, excitation, and load.
- Event logging, fault recording, and predictive diagnostics for preventive maintenance.
- Alarm prioritization and automated notifications to support operational decision-making.
7. User Interface and Engineering Tools
- Intuitive graphical HMI for local operation and configuration.
- ABB’s engineering software allows easy parameter tuning, system setup, and performance optimization.
- Clear LED indicators and display panels provide real-time operational status and alarms.
8. Compliance and Environmental Standards
- Complies with IEC, ANSI, and IEEE standards for excitation and generator control.
- Designed for harsh industrial environments with wide operating temperature and humidity ranges.
- High resistance to electromagnetic interference (EMI), vibration, and mechanical shock.
Applications of ABB UNITROL 1020
The UNITROL 1020 AVR is deployed across a broad spectrum of industrial and utility power generation applications due to its precision, reliability, and flexibility.
1. Thermal Power Plants
- Provides voltage regulation for steam and gas turbine generators.
- Ensures stable generator excitation under load changes and start-up/shutdown sequences.
- Integrates with plant SCADA and DCS for coordinated operation with other power generation units.
2. Hydropower Plants
- Controls excitation for synchronous hydro generators to maintain stable voltage output.
- Supports variable water flow and fluctuating load conditions while minimizing voltage oscillations.
- Enhances grid stability and power quality in renewable hydro installations.
3. Industrial Facilities
- Applied in industrial power generation systems, including chemical plants, pulp & paper, steel mills, and manufacturing facilities.
- Provides reliable voltage regulation for on-site generators supplying critical industrial loads.
- Reduces downtime and equipment stress by ensuring proper generator excitation under variable load conditions.
4. Renewable Energy and Hybrid Systems
- Suitable for small- and medium-sized distributed energy resources integrating hydro, gas, or steam generation.
- Ensures stable grid synchronization of generators with renewable sources.
- Supports predictive maintenance and real-time monitoring for hybrid energy systems.
5. Retrofit and Modernization Projects
- UNITROL 1020 is ideal for upgrading legacy excitation systems to digital, high-performance control.
- Compatible with older generators and excitation systems, enabling extended equipment life.
- Reduces operational risks associated with obsolete analog excitation equipment.
Operational Benefits
Implementing the ABB UNITROL 1020 AVR provides significant operational advantages:
- Enhanced Generator Reliability
- Fast and precise excitation control minimizes the risk of voltage deviations and generator faults.
- Integrated protection features safeguard generators from overvoltage, under-excitation, and overcurrent conditions.
- Improved Grid Stability
- Maintains stable voltage output under varying load and network disturbances.
- Supports compliance with grid codes and reduces the impact of power quality issues.
- Simplified Maintenance
- Real-time monitoring, diagnostics, and predictive maintenance reduce unplanned downtime.
- Modular design allows easy replacement and upgrades without extensive system modifications.
- Operational Efficiency
- Optimized excitation control reduces energy losses and improves overall generator performance.
- Reduces stress on generator windings and excitation components, prolonging equipment life.
- Flexibility and Scalability
- Supports a wide range of generator sizes and types, including retrofits of legacy systems.
- Integrates with modern SCADA, DCS, and ABB control systems for centralized operation.
Industry Insights and Trends
The ABB UNITROL 1020 addresses the evolving needs of modern power generation, industrial automation, and renewable energy integration:
- Digitalization: UNITROL 1020 supports remote monitoring, predictive maintenance, and integration with plant automation systems for smart plant operations.
- Sustainable Energy: Used in hybrid energy and renewable projects, including hydro and gas-based distributed generation, ensuring stable and efficient power supply.
- Legacy System Modernization: Increasing demand for upgrading analog excitation systems drives adoption of digital AVRs like UNITROL 1020, which improve reliability and extend equipment life.
- Global Adoption: Widely deployed in small- and medium-sized power plants, industrial facilities, and renewable energy projects worldwide.
- Energy Efficiency: Advanced excitation algorithms reduce energy losses, improve generator efficiency, and minimize operational costs.
News and Updates
- ABB continues to enhance UNITROL 1020 with improved communication protocols, enhanced protection features, and digital integration capabilities.
- Recent projects demonstrate UNITROL 1020 adoption in industrial and renewable energy plants for retrofitting old excitation systems and improving generator performance.
- ABB provides comprehensive technical documentation, training, and configuration tools to ensure optimal deployment and operational efficiency.
- Industry reports highlight the growing importance of digital AVRs in maintaining grid stability, reducing generator stress, and enabling predictive maintenance strategies.
Conclusion
The ABB UNITROL 1020 Automatic Voltage Regulator (AVR) is a high-performance, reliable, and flexible solution for generator excitation control and voltage regulation. With its precise control, fast response, integrated protection, and modern communication capabilities, UNITROL 1020 ensures generator reliability, operational safety, and optimal performance across industrial, utility, and renewable energy applications.
Operators benefit from reduced downtime, enhanced efficiency, and extended equipment life, while supporting grid stability and compliance with international standards. Its modular, compact, and digital design makes it ideal for new installations, retrofits, and hybrid energy projects, positioning UNITROL 1020 as a strategic solution for modern power generation and industrial operations.
ABB provides extensive technical support, configuration software, and engineering guidance to maximize the performance and operational benefits of UNITROL 1020 controllers.
