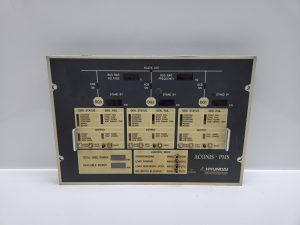

Hyundai ACONIS-2000PMS Generator Display Panel Power

• Model: Hyundai ACONIS-2000PMS Generator Display Panel (GDP)
• Brand: Hyundai Electric & Energy Systems / Hyundai Heavy Industries
• Series: ACONIS-2000 Power Management System
• Core Function: Local operator interface & display for generator PMS
• Type: Generator Display Panel (GDP)
• Key Specs: Flush-mount panel Push-button inputs Multi-LED status Dual 4-digit displays

Key Technical Specifications

• Display: Two 4-digit numeric displays for voltage/current/frequency & power metrics
• User Interface: 8 push buttons for mode, start/stop, parameter entry
• Status Indicators: 22+ LED alarms and conditions (e.g., MANUAL, AUTO, SYNCHRONIZING, FAIL)
• Alarms Covered: Over/under frequency, voltage, reverse power, ACB abnormal, start/stop failures
• Control Modes: Manual, Auto, Local modes selectable via switches
• Communication: Serial connection to GCE (Generator Control Equipment) with ~2 m cable
• Mounting: Flush panel installation on generator switchboard
• Supply: Typically 24 V DC or system supply (check OEM manual)
• Operating Conditions: Marine/industrial environments



Application Scenarios & Engineering Pain Points

In marine power plants and industrial generator installations, the generator display panel (GDP) isn’t just a cosmetic add-on — it’s your frontline control and situational awareness node. The ACONIS-2000 PMS GDP shows real-time AC metering (voltage, current, frequency), generator status, load and synchronization conditions, and a suite of alarm states right where the operators need them.

Without this panel, operators rely on remote systems or DCS data, which increases response time and reduces local control options — especially critical during black-start, sync events, or fault conditions.

Typical Applications

1. Marine Power Management – Shipboard main/auxiliary generator control with auto start/stop and load sharing logic.
2. Diesel Generator Sets – Commercial or offshore power plants where local feedback and operator control are mandatory.
3. Industrial Standby Power – Backup generation systems interfaced with PMS logic for blackout recovery and synchronization.
4. Hybrid Power Systems – Coordinated control between multiple gensets for load balancing and frequency control.

Realistic Scenario: Generator Auto Start/Stop Logic

At a medium-sized offshore facility, the ACONIS-2000 PMS GDP served as the local operator panel for four diesel generators. Operators used it not just for monitoring voltage/frequency, but also to switch control modes (Auto/Manual) and manually intervene during abnormal load sharing or synchronization faults. The presence of clear LED alarms and numeric feedback cut troubleshooting time during line disturbances by over 30 % compared to systems without local display panels.



Compatible Replacement Models

⚠️ Functional Equivalent (Needs Validation)

• Hyundai ACONIS-3000 GDP – Next generation panel with expanded display and faster interface (requires system config update).
• Third-party Marine Generator GDPs (OEM Agnostic) – Can provide display & limited control; must adapt communication protocols.

❌ Not Direct Drop-in Compatible

• Generic PLC HMI panels — interface protocols differ; requires redesign of control logic and comms.

Given the ACONIS-2000 unique integration with Hyundai PMS logic and GCE hardware, only panels that support the specific PMS protocol and alarm schema are practical replacements.



Troubleshooting Quick Reference

Practically, more than half of “no display” issues on legacy generator panels turn out to be power or comm cable faults rather than panel logic failure. Always verify external feeds first.
