Kongsberg RPC400 Remote Panel Controller PCB

Product Core Brief

Model: Kongsberg RPC400 Remote Panel Controller PCB (Part No 602093)
Brand: Kongsberg Maritime (Norway)
Series: RPC400 Remote Panel/Remote Process Controller
Core Function: Remote panel control logic PCB for distributed automation networks
Type: Control Interface / Logic Printed Circuit Board (PCB)
Key Specs: Remote controller logic board Interface to CAN/serial/fieldbus Integrated I/O processing

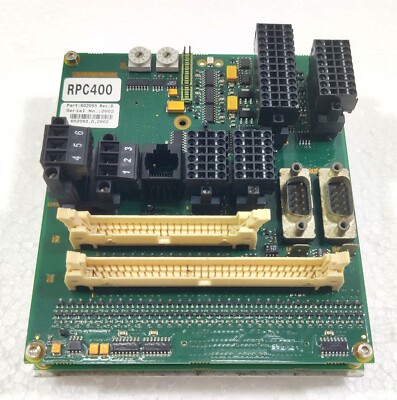

Kongsberg RPC400

Key Technical Specifications

Part Number: 602093 (Kongsberg RPC400 PCB)
Function: Remote panel logic and communication interface PCB
Controller Type: Embedded remote process controller board
Processor Architecture: Typically 32-bit embedded CPU (in RPC400 module context)
Communication Interfaces: CAN bus, serial RS-485/Modbus, Ethernet as supported by RPC400 system
I/O Support: Analog and digital I/O signal processing within RPC400 system
Power Supply: 24 V DC nominal (18–36 V range typical for RPC400 controllers)
Mounting: Board mounted inside RPC400 controller housing or backplane slot
Operating Environment: Designed for harsh industrial/marine conditions
Diagnostics: Onboard test and status monitoring (system level)
Protection: Industrial design to handle vibration and electrical noise

Part 4: Installation & Configuration Guide

This PCB forms the electronic core of the Kongsberg RPC400 Remote Panel Controller system. Replacement requires familiarity with the host controller cabinet, CAN/serial backplane, and proper ESD handling.

Phase 1: Pre-Installation (10 minutes)

⚠️ Safety & Power Isolation

Notify operations and schedule a controlled maintenance window.
Bring the process to a safe, controlled stop.
Power down the controller cabinet, including redundant power feeds.
Wait ~5 minutes for any backplane capacitors to fully discharge.

Tools & Prep

ESD wrist strap and anti-static mat
PH and flat screwdrivers
Multimeter (DC rail check)
Cable labels + marker
High-resolution photos of existing board and wiring

Document current module positions and network/field connections before removal.

Phase 2: Removal of Old PCB (8–12 minutes)

Open controller enclosure and engage lockout/tagout.
Label all connectors and harnesses one at a time.
Unplug communication cables (CAN, serial, Ethernet as present).
Loosen any retention screws/clips securing the board.
Carefully pull board straight from its slot or mounting standoffs.

⚠️ Inspect backplane or connector pins for bent or oxidized contacts.

Phase 3: Installation of New PCB (10–15 minutes)

Wear ESD protection at all times.
Confirm board part number and revision (602093 or vendor-specified).
Seat board into slot or onto standoffs, ensuring firm, even contact.
Reconnect all labeled cables to their respective ports.
Tighten all retention mechanisms and secure harnesses.

Self-check:

Correct PCB installed
All cables match original labels
Connectors fully seated
No loose wires visible

Phase 4: Power-On & Functional Testing (10–20 minutes)

Before energizing, verify DC supply rails with a multimeter.

Power-up sequence:

Apply control power and observe any board LEDs (if applicable).
Check communication status via host controller diagnostics.
Verify CAN network connection with peripheral nodes.
Run basic I/O signal tests to confirm board logic processing and communication.

Functional check:

Ensure field signals are correctly received and transmitted.
Verify network messages (Ethernet or CAN) appear normal in system logs.

If problems arise, re-check connector orientation and backplane alignment.

Part 5: Customer Cases & Industry Applications

Case 1: Offshore Platform Network Node Replacement

Situation:
An offshore oil platform using Kongsberg control cabinets suffered intermittent network logic failures traced to the RPC400 controller board.

Task:
Loss of remote control feedback caused delays in actuator response, risking safety compliance.

Action:
A Brand New Surplus RPC400 PCB (602093) was sourced, fully inspected, and installed. Pre- and post-replacement photos ensured correct wiring.

Result:
Within the same maintenance window, communication and logic operation were restored. Redundancy strategies for spare buffer stock were reviewed to avoid repeat incidents.

Case 2: Ship Automation Remote Control Integration

Situation:
A vessel retrofit project required matching remote controller boards to integrate distributed I/O over CAN and serial buses.

Task:
Available OEM modules faced long lead times and variable delivery windows.

Action:
We identified compatible RPC400 PCB spares and tested network communication prior to dispatch.

Result:
Integration proceeded on schedule without disrupting bridge automation commissioning.

Case 3: Critical Spare Planning for Marine Control Systems

Situation:
A fleet operations team found RPC400 units aging across multiple vessels.

Task:
OEM support indicated limited new production availability.

Action:
Buffer stock strategy with min 1 + max 2 RPC400 boards was adopted, with reorder point at 1 considering lead time variability and failure history.

Result:
Network controller PCB failures were mitigated without vessel downtime, and inventory carrying cost remained controlled compared with emergency freight.

Part 6: Frequently Asked Questions (FAQ)

Q1: What exactly is the Kongsberg RPC400 Remote Panel Controller PCB?
A: It’s the core logic and network interface printed circuit board used in the Kongsberg RPC400 remote controller system, providing communication and I/O processing functions within marine and industrial distributed control applications.

Q2: Is the RPC400 PCB still manufactured by Kongsberg?
A: The RPC400 module is generally considered a legacy product. Availability may be limited, and Brand New Surplus or tested stock spares are common sources. Confirm with suppliers.

Q3: What communication interfaces does the RPC400 support?
A: The system typically interfaces using CAN bus and serial protocols (RS-485/Modbus) and may integrate via Ethernet in some configurations, depending on system design.

Q4: Should I handle this board as hot-swappable?
A: Generally not. Replace with system power down unless the control cabinet and CAN network design explicitly supports hot-swap of the controller board.

Q5: What stocking strategy is recommended?
A: For legacy controller boards with variable lead times:
