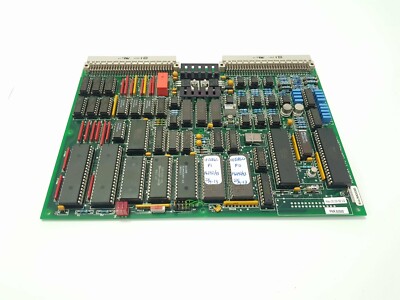

Liaaen Helitron DC0016A I/O Controller Module

• Model: DC0016A (I 96177)
• Brand: Liaaen Helitron (Commonly integrated with Rolls-Royce/Kongsberg)
• Series: Helitron Propulsion Control Systems
• Core Function: Specialized I/O controller for pitch and speed command processing (New Surplus)
• Product Type: I/O Controller Board / Marine Interface Module
• Key Specs: 24 V DC Power | Multi-channel Analog/Digital Interface | Marine Certified

Key Technical Specifications

• Operating Voltage: 24 V DC (Marine standard)
• Hardware ID: I 96177
• I/O Channels: Mixed Analog (for joystick/pitch command) and Digital (for alarm/interlock status)
• Form Factor: Rack-mount Eurocard PCB
• Indicator LEDs: On-board diagnostics for power status and I/O activity
• Communication: Proprietary internal bus for Helitron rack systems
• Environmental Rating: Marine bridge and engine room temperature rated
• Protection: Conformal coating for humidity and salt-air resistance



Installation & Configuration Guide

Phase 1: Pre-Installation

Estimated time: 15 minutes

⚠️ Marine Safety Protocol:

1. This module often controls Controllable Pitch Propellers (CPP). Ensure the propulsion system is in “Local/Manual” mode at the Engine Room console.
2. If the vessel is at sea, ensure the autopilot and DP systems are disengaged before swapping the controller.
3. Compare the jumper settings on the new DC0016A board with the old one. These jumpers define the signal types (e.g., 4-20mA vs 0-10V) and must be identical.

Preparation:

• Anti-static wrist strap.
• Fine-tipped needle-nose pliers for adjusting jumpers.
• Contact cleaner for backplane connectors.

Phase 2: Removal

Estimated time: 10 minutes

1. Power Off: Switch off the control power to the specific Helitron rack.
2. Marking: If there are front-panel connections, label them immediately using the terminal numbers printed on the PCB.
3. Extraction: Release the locking tabs on the top and bottom of the card handle. Pull the board straight out of the rack.
4. Inspection: Check the backplane for “green” corrosion (oxidation) which is common in older marine installations.

Phase 3: Installation

Estimated time: 15 minutes

1. Alignment: Carefully align the PCB edges with the plastic guide rails in the rack.
2. Seating: Slide the module in until you feel the rear DIN connector mate with the backplane. Press firmly but avoid using excessive force.
3. Securing: Engage the locking tabs.
4. Wiring: Reconnect any front-panel terminal blocks or signal wires according to your previous labels.

Phase 4: Power-On & Testing

Estimated time: 30 minutes

1. Initial Power-Up: Monitor the LEDs. A healthy DC0016A should show a “Power OK” light without “Fault” indicators.
2. Command Check: Move the pitch lever/joystick and verify that the feedback signal on the HMI follows the command smoothly without jitter.
3. Alarm Verification: Simulate a wire-break (if safe to do so) to ensure the controller correctly identifies and reports a signal loss.
4. Full Sea Trial: If in port, perform a full-range pitch stroke test. If at sea, monitor the system during low-load conditions before returning to full maneuverability.



Customer Cases & Industry Applications

Case 1: CPP Pitch Control Failure in a Tanker

Situation: A Suezmax tanker reported that the Controllable Pitch Propeller (CPP) was “hunting” (oscillating) and eventually locking in the full-ahead position. The diagnostic trace pointed to a failing Liaaen Helitron DC0016A module that was sending erratic analog signals.

Task: The vessel was entering a high-traffic zone. Without pitch control, the ship would have required tug assistance, costing thousands of dollars per hour.

Action: We provided a New Surplus DC0016A (I 96177) unit from our emergency stock. Since the ship was near a major hub, we arranged for a 24-hour delivery via a local marine service partner.

Result: The onboard engineer swapped the board and matched the jumpers. The pitch oscillation stopped immediately. The vessel resumed its voyage without the need for tugs or dry-docking, saving an estimated $60,000 in operational costs.



Frequently Asked Questions (FAQ)

Q1: What does the “I 96177” designation mean? A: This is the hardware identification number for the Liaaen Helitron series. It ensures the board layout and component density match the specific control requirements of your propulsion rack. Always verify this number when ordering.

Q2: Can I use this board for bow thruster control? A: Yes, many Liaaen Helitron systems use the DC0016A for both main propulsion pitch and bow thruster pitch control. The functionality is determined by the rack position and jumper settings.

Q3: Does the module require a software upload? A: In these legacy Helitron systems, the DC0016A is typically a hardware-configured I/O controller. As long as your Jumpers and Potentiometers (if any) are set to match the old board, it is usually a “Plug-and-Play” replacement.

Q4: Is “New Surplus” reliable for a part this old? A: Actually, it is the safest option. Refurbished boards often have traces that have been weakened by heat or vibrations. Our New Surplus units have been kept in protective packaging, meaning the copper traces and solder joints are in pristine condition.

Q5: What is the lead time for express shipping to a vessel in port? A: We prioritize marine orders. For major ports (Rotterdam, Singapore, Houston, Dubai), we can typically deliver within 3 business days.
