- Model: Lyngso Marine SIM 401
- Brand: Lyngso Marine (SAM Electronics / Wärtsilä)
- Series: UCS 2100 / SAM 825 Automation Systems
- Core Function: Dual-channel serial communication interface for connecting bridge equipment and engine sensors.
- Product Type: Serial Communication Module
- Key Specs: Dual RS-422/RS-485/RS-232 support | Marine-grade isolation | Plug-in format

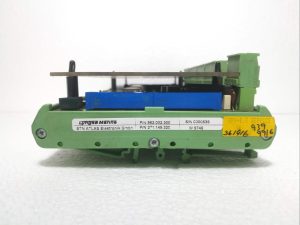

Lyngso Marine SIM 401
Key Technical Specifications
- Channels: 2 independent serial ports
- Interface Standards: Software/Jumper configurable for RS-232, RS-422, or RS-485
- Baud Rate: Supports standard rates up to 38.4 kbps (depending on system config)
- Isolation: Galvanic isolation between channels and system logic
- Connector Type: Industrial-grade terminal headers or D-sub (system dependent)
- Power Supply: Powered via the system backplane (5 V DC / 24 V DC)
- Protocol Support: NMEA 0183, Modbus RTU, and proprietary Lyngso bus protocols
- Diagnostics: On-board Tx/Rx LEDs for real-time monitoring of data flow
- Certification: Marine Type Approved (DNV-GL, LR, ABS)
Application Scenarios & Pain Points
In the world of marine automation, the SIM 401 acts as the essential translator between the “brain” of the ship (the UCS 2100 or SAM 825 system) and external devices like GPS, Gyros, or engine monitoring sensors. If this module fails, the central automation system loses its eyes and ears. On a vessel, a lost NMEA feed from the GPS doesn’t just trigger an alarm; it can disable critical navigation functions and autopilot integration.
Typical Application Scenarios:
- Integrated Navigation Systems (INS) Interfacing GPS, AIS, and Speed Log data into the main bridge workstations.
- Engine Monitoring (DCS) Collecting serial data from third-party engine control units (ECUs) or fuel flow meters.
- Tank Gauging Systems Communicating with remote tank level sensors via Modbus RTU protocols.
Case Study: The Autopilot Disconnect
Background: A container vessel equipped with a SAM 825 system was experiencing intermittent “Data Invalid” alarms on its bridge console. The autopilot would randomly disengage, forcing the deck officer to manual steering during a night transit.
The Problem: The SIM 401 module responsible for the Gyro-compass input had developed a thermal fault. As the control cabinet warmed up, the serial transceiver on Channel 1 would hang, causing the NMEA string to freeze. Finding a “New” unit through standard marine channels proved difficult due to the age of the UCS system.
The Solution: We supplied a tested SIM 401 from our surplus stock. Before shipping, we verified the isolation resistance on both serial channels to ensure no signal leakage.
The Result: The chief electrician swapped the module during a 4-hour port stay. The autopilot regained a stable heading feed, and the vessel cleared its safety inspection before departure. The operator avoided a “Major Non-Conformity” report from the port state control.
Compatible Replacement Models
The SIM 401 is a specialized card. While later systems moved to Ethernet-based architectures, these serial modules remain vital for maintaining legacy fleets.
| Original Model | Replacement | Compatibility | Key Difference |
| SIM 401 | SIM 401 | ✅ Direct Match | Exact hardware rev is required. |
| SIM 401 | SIM 402 | ⚠️ Limited | SIM 402 may have different isolation or baud limits. |
| SIM 401 | Serial-to-Ethernet Gateway | ❌ Not Recommended | Requires significant system reprogramming. |
Engineer’s Note: When replacing a SIM 401, pay extremely close attention to the onboard jumpers. These define whether the port is acting as RS-232 or RS-485. If you copy the hardware but forget the jumpers, you might send RS-232 voltage levels into an RS-485 device, potentially damaging the downstream equipment.
Troubleshooting Quick Reference
| Symptom | Likely Cause | Spare Related? | Action |
| No Tx/Rx LED activity | Port failure or no data | ✅ High | Check cable seating. If no LEDs flash despite verified data, the transceiver is dead. |
| Garbage Data in System | Baud Rate/Parity Mismatch | ❌ Low | Verify software settings in the Lyngso configuration tool. |
| Frequent “Comm Error” | Shielding/Ground Loop | ⚠️ Medium | Ensure the serial cable shield is grounded at the module end only. |
| Module Not Detected | Backplane Address Conflict | ✅ High | Check the address jumpers/ID on the module back. |
❗ Technical Trap: The Termination Resistor
On RS-485 networks, the SIM 401 often requires a 120Ω termination resistor at the end of the line. If the module you are replacing was at the end of a bus, ensure the resistor is either enabled via jumper or physically present on the terminal block. Without it, you’ll get signal reflections that cause intermittent “Checksum Errors.” Always verify the bus topology before finalizing the swap.
