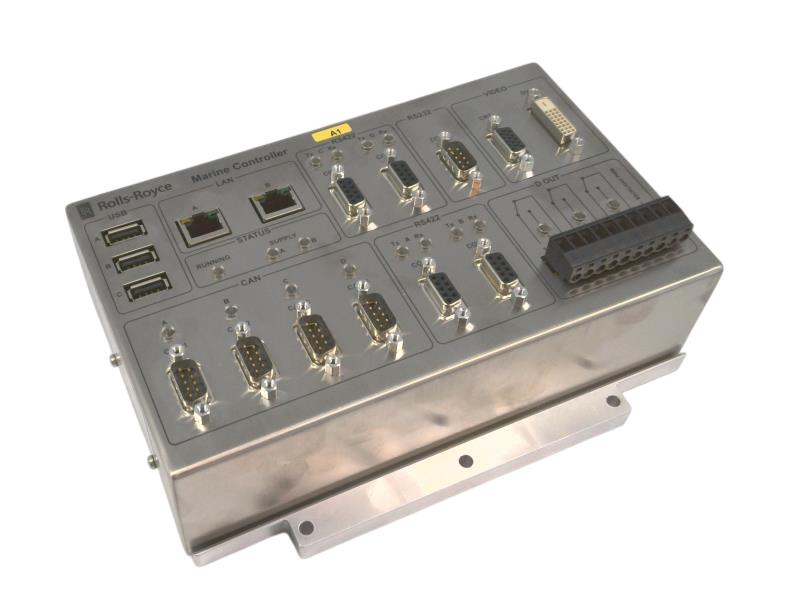

Rolls Royce H1127.0101 Marine Automation Controller

• Model: Rolls Royce H1127.0101
• Brand: Rolls Royce (Marine Division / Kongsberg Maritime)
• Series: Common Control System (CCS) / Marine Automation
• Core Function: High-reliability processing unit for thruster control, steering, and dynamic positioning.
• Product Type: Central Control Module
• Key Specs: Marine-grade vibration resistance | Redundant communication bus | 24V DC

Key Technical Specifications

• Processor: Industrial-grade embedded RISC processor
• Input Voltage: 24 V DC (Dual redundant power inputs)
• Communication:
  • Dual Ethernet ports for system networking
  • CANbus / RS485 for local I/O and sensor interfacing
• Construction: Salt-mist resistant coated PCB, ruggedized aluminum housing
• Operating Temperature: -15°C to +70°C (Extended marine range)
• Certification: DNV-GL, ABS, Lloyd’s Register (Type Approved)
• I/O Integration: Interfaces with remote I/O stations via dedicated fieldbus
• Mounting: Standard 19-inch rack or dedicated marine cabinet bulkhead mount



Application Scenarios & Pain Points

In the marine industry, “reliability” isn’t a buzzword; it’s a survival requirement. The H1127.0101 is typically found deep within the automation racks of PSVs (Platform Supply Vessels), tugs, and cruise ships. It manages the complex logic for azimuth thrusters and steering gear. If this module fails while a vessel is station-keeping near an offshore rig, the result could be a catastrophic collision.

Typical Application Scenarios:

1. Dynamic Positioning (DP) Systems Acts as the localized controller translating DP commands into physical thruster pitch and RPM adjustments.
2. Steering Gear Control Managing the hydraulic feedback loops for main steering rudders on large commercial vessels.
3. Integrated Automation System (IAS) Serving as a distributed processing node for monitoring engine room machinery and auxiliary systems.

Case Study: The “Dead in the Water” Emergency

Background: A specialized offshore construction vessel was operating in the North Sea. During a heavy lift operation, the starboard aft thruster stopped responding to commands. The system flagged a “Controller CPU Fault” on the H1127.0101.

The Problem: The vessel was operating under DP2 rules, meaning they could stay on station, but the operation had to be suspended immediately. The daily charter rate for this vessel was $85,000. The OEM indicated that this specific H1127 revision was “limited availability,” with a 3-week lead time from their central warehouse.

The Solution: We were contacted through a partner in Singapore. We had a New Surplus H1127.0101 in our Xiamen facility. We performed a 24-hour load test and air-freighted the unit to Aberdeen within 48 hours.

The Result: The chief engineer swapped the module and reloaded the configuration from the system’s “Master Controller.” The vessel returned to work 4 days after the failure, saving the operator over $1.5 million in potential downtime penalties.



Compatible Replacement Models

The H1127 series has several variations. Ensuring the .0101 suffix is matched is critical for pin-out compatibility and software driver support.

Marine Engineer’s Advice: Since Rolls Royce Marine was acquired by Kongsberg, some of these parts are now branded differently, but the H1127.0101 remains the core part number for many legacy CCS systems. Always check the “Mod State” (Modification State) sticker on the side of the unit to match hardware revisions.



Troubleshooting Quick Reference

❗ Technical Trap: The “Marine Environment” Factor

I’ve seen many H1127.0101 failures caused by salt-air ingress. Even in air-conditioned control rooms, humidity can cause microscopic corrosion on the backplane connectors. Before installing our replacement, clean the backplane pins with an approved contact cleaner. If you plug a new module into a corroded backplane, you risk “frying” the new interface pins immediately.
