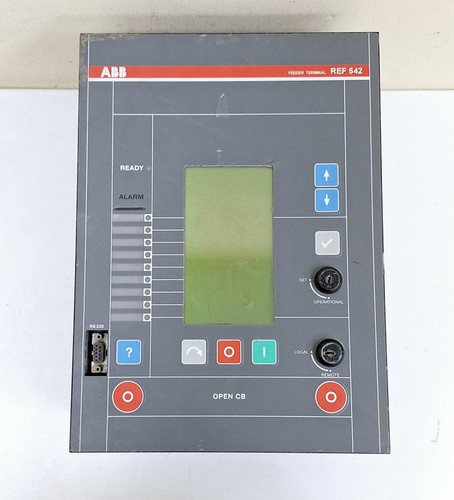

The ABB REF542 (Part Number CRB 001272R0001) is a multifunctional feeder terminal designed for the protection, control, measurement, and supervision of medium-voltage power systems, integrating all bay-level functions into a single programmable unit.
Product Parameters (Datasheet)
- Model Number: REF542
- Catalog Number: CRB 001272R0001
- Function: Feeder Protection and Bay Control Unit
- Hardware Version: Version 1 (V1) or early Version 2 (V2) dependent on series
- Input Voltage (Auxiliary): Wide range DC supply (typically 48–220V DC)
- Analog Inputs: 8 to 10 channels for Current Transformers (CT) and Voltage Transformers (VT)
- Binary I/O: Modular configuration with up to 16/32 digital inputs and outputs
- Communication: SPA-bus, LON-bus, or IEC 60870-5-103 compatibility
- Display: Integrated HMI with LC-Display for local monitoring and control
- Mounting: Flush-mount into switchgear panels
Country of Origin
This advanced protection unit is developed and manufactured by ABB Switzerland Ltd (Power Technologies Division), known for precision utility-grade automation.
Application Fields
The REF542 series is primarily utilized in medium-voltage switchgear for:
- Feeder Protection: Managing outgoing and incoming lines in distribution substations.
- Transformer Protection: Providing overcurrent, earth-fault, and thermal overload monitoring.
- Motor Control: Protecting large MV motors from stalling, unbalance, and frequent starts.
- Busbar Supervision: Monitoring voltage levels and providing interlocking logic.
- Smart Grid Integration: Acting as a gateway for digitized substation automation.
Product Usage Instructions
- Panel Integration: Install the unit into the standard rectangular cutout of the switchgear door. Ensure the earth grounding strap is connected to the chassis.
- CT/VT Connection: Wire the secondary circuits of your instrument transformers to the analog input terminals. Caution: Never open-circuit a live CT.
- Programming: Use the ABB FUPLA (Functional Plan) programming tool to define the protection curves and interlocking logic.
- HMI Operation: Use the front-panel pushbuttons to toggle between “Local” and “Remote” modes for breaker operation.
- Testing: Perform secondary injection testing to verify that the programmed protection stages (e.g., 50/51, 67, 27) trigger the correct binary outputs for tripping.
Product Technical Description
The REF542 is a “Bay Controller” that bridges the gap between traditional relays and modern DCS systems. It utilizes a powerful Digital Signal Processor (DSP) to perform real-time Fourier transforms on analog waves, ensuring high-accuracy measurement of harmonics and fundamental frequencies. Its modular architecture (CRB 001272R0001 specifically referring to a core processor or housing assembly) allows for hardware scalability, where the user can swap I/O modules to fit the specific number of breakers or sensors in a particular bay.
Q&A (Common Questions)
Q: Can the REF542 handle directional earth-fault protection? A: Yes, when equipped with both VT and CT inputs, the unit can calculate the phase angle to provide sensitive directional protection.
Q: Is the firmware upgradable? A: Yes, the firmware can be updated via the optical front port or the rear communication interface using ABB’s configuration software.
Q: What does the “CRB” part number specifically identify? A: “CRB” is an ABB internal hardware identifier often used for specific motherboard or base unit configurations within the REF542 family.
Q: Does it support IEC 61850? A: Newer versions (REF542plus) support IEC 61850. The legacy REF542 series typically uses SPA or LON protocols.
Similar Model Recommendations
- ABB REF542plus (The direct successor with enhanced LCD)
- ABB REF615 (Compact feeder protection for modern smart grids)
- ABB REM543 (Specialized motor protection terminal)
- ABB RET541 (Specialized transformer protection terminal)
- ABB REL511 (Line distance protection unit)
