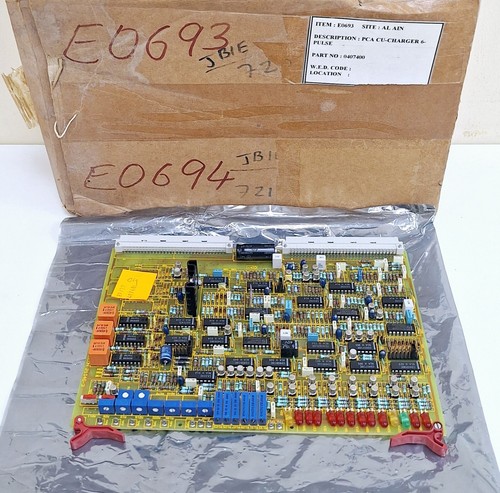

The Gutor Electronics 0407400, identified by the assembly code SILCON 21046-3, is a specialized 6-Pulse Control Unit (CU) charger board designed for precise firing pulse regulation in industrial rectifier and UPS systems.
Product Parameters (Datasheet)
- Model Number: 0407400
- PCB Assembly: SILCON 21046-3
- Type: PCA CU-Charger (Control Unit for Charger/Rectifier)
- Topology Support: 6-Pulse Thyristor (SCR) Bridge
- System Compatibility: Gutor PEW, PXP, and SILCON Industrial UPS series
- Function: SCR Gate Pulse Generation and Synchronization
- Communication: Internal system bus for parameter monitoring and fault reporting
- Protection: Integrated isolation and feedback loop monitoring
- Supply Voltage: Derived from system auxiliary DC or AC supply rails
Country of Origin
This control board is engineered and manufactured by Gutor Electronics (Schneider Electric) in Switzerland, ensuring the high-performance standards required for nuclear, oil, and gas power applications.
Application Fields
The 0407400 PCA is a critical logic component used in:
- Industrial UPS Systems: Managing the rectifier stage to convert AC utility power into clean DC for battery charging.
- Oil & Gas Infrastructure: Ensuring stable DC power for control systems in offshore and onshore facilities.
- Power Plants: Acting as the firing controller for large-scale battery chargers.
- Marine Systems: Providing reliable power conversion for shipboard critical electronics.
Product Usage Instructions
- Safety Protocol: Before installation, ensure the UPS is completely de-energized and the batteries are disconnected. Verify the absence of voltage on the DC bus.
- ESD Handling: Use an anti-static wrist strap and mat. The SILCON 21046-3 contains sensitive logic circuits that can be damaged by static discharge.
- Installation: Align the board with the designated mounting standoffs in the control cabinet. Secure all mounting screws to ensure a proper ground reference.
- Wiring: Reconnect the pulse transformer leads and synchronization cables. Ensure all ribbon cables are seated firmly and the locking clips are engaged.
- Calibration: Upon power-up, use the Gutor service software or front-panel interface to verify the firing angle and DC output voltage parameters match the system specifications.
Product Technical Description
Technically, the 0407400 (SILCON 21046-3) serves as the “brain” for the 6-pulse rectifier bridge. It synchronizes its internal clock with the incoming AC phase rotation to provide precise timing for the SCR (Silicon Controlled Rectifier) firing pulses. This 6-pulse topology is designed to minimize harmonic distortion and provide stable DC current to the battery bank. The board monitors the output DC voltage and current in a continuous feedback loop, adjusting the firing angle in real-time to compensate for load changes or input voltage fluctuations.
Q&A (Common Questions)
Q: What is the significance of the “6-Pulse” designation? A: It refers to a rectifier configuration using six thyristors to produce six pulses of DC current per AC cycle, offering a balance between efficiency and harmonic performance in industrial chargers.
Q: Can this board be used in a 12-pulse system? A: Typically, a 12-pulse system uses two 6-pulse chargers in parallel or series. While this board manages one 6-pulse bridge, the system configuration must support dual-bridge coordination.
Q: How do I know if the board is failing? A: Common indicators include “Rectifier Fault” alarms, unstable DC output voltage, or synchronization errors reported on the main UPS display.
Q: Does the SILCON 21046-3 require firmware programming? A: Yes, the board is often revision-specific and may require the correct firmware to be loaded or recognized by the central system controller during commissioning.
Similar Model Recommendations
- Gutor 0407401 (12-Pulse variant)
- Gutor SILCON 21046-2 (Previous hardware revision)
- Gutor 0500129 (Auxiliary Power Supply PCA)
- Gutor 21108-2 (Internal PSU Board)
- Gutor 0407500 (Inverter Control PCA)
