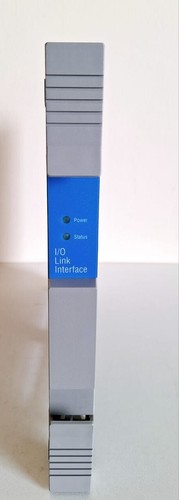

The Honeywell 51303979-400-RP is a high-performance Process Manager Module (PMM) I/O Link interface card designed for the TDC 3000 and Experion PKS control systems, facilitating high-speed communication between the processor and distributed I/O racks.
Product Parameters (Datasheet)
- Part Number: 51303979-400-RP
- Module Type: PMM I/O Link Interface
- Series: TDC 3000 / High-Performance Process Manager (HPM)
- Communication Speed: Standard I/O Link rates (typically 1 MBaud)
- Redundancy: Supports fully redundant I/O Link configurations
- Hardware Revision: -400 (Indicates specific hardware/firmware optimization)
- Suffix: -RP (Replacement Part / Refurbished Program certified)
- Power Consumption: Low-power CMOS technology (supplied via backplane)
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
Country of Origin
This control system component is engineered and manufactured by Honeywell Process Solutions in the USA, built to meet global industrial standards for distributed control systems (DCS).
Application Fields
The 51303979-400-RP serves as the critical communication bridge in various heavy industries:
- Refining & Petrochemical: Managing high-density I/O points across large processing units.
- Power Generation: Interfacing turbine and boiler control signals with the central PMM.
- Oil & Gas Midstream: Used in pipeline compressor stations for remote data acquisition.
- Pharmaceutical Manufacturing: Ensuring precise timing and synchronization for batch processing.
- Water Treatment: Managing distributed pump and valve control over long-distance I/O links.
Product Usage Instructions
- Safety Protocol: Before installation, ensure the HPM/APM rack power is stable. Ground yourself using an ESD strap to protect the card’s sensitive logic circuits.
- Slot Placement: Insert the card into the designated I/O Link slot of the High-Performance Process Manager (HPM) cabinet.
- Cable Connection: Secure the I/O Link cables (shielded twisted pair) to the front connectors. Ensure the termination resistors are correctly placed at both ends of the link.
- Addressing: Configure the card’s hardware address or software parameters via the Honeywell Network Configurator to match the existing system topology.
- LED Diagnostics: Upon power-up, monitor the “OK” LED. A steady green light indicates successful initialization and active communication with the processor.
Product Technical Description
The 51303979-400-RP functions as a specialized gateway. It translates the high-level commands from the PMM processor into the specific timing and protocol required by the I/O Link. This card manages the “polling” of I/O modules, ensuring that real-time process data is updated within milliseconds. The “-400” revision features enhanced noise immunity, which is vital in industrial environments where high-voltage switching can cause electromagnetic interference. By supporting redundant links, this card ensures that a single cable break or connector failure does not result in a loss of process control.
Q&A (Common Questions)
Q: What does the “-RP” suffix signify? A: The “-RP” stands for Replacement Part. These are parts certified by Honeywell to meet original factory specifications, often used to maintain legacy TDC 3000 systems.
Q: Can this card be used in an Experion PKS system? A: Yes, if the Experion system is utilizing HPM or EHPM (Enhanced High-Performance Process Manager) controllers that require I/O Link connectivity.
Q: How many I/O modules can a single link support? A: A standard Honeywell I/O Link typically supports up to 40 I/O modules, though performance and scan times should be calculated based on your specific configuration.
Q: Is this card compatible with older “-100” or “-200” versions? A: Generally, yes. The -400 version is backward compatible and provides improved hardware stability over earlier revisions.
Similar Model Recommendations
- Honeywell 51303979-100 (Legacy version)
- Honeywell 51303979-200 (Mid-revision version)
- Honeywell 51402573-100 (Redundant I/O Link Protector)
- Honeywell 51304362-150 (UCN Interface card)
- Honeywell 51304485-150 (HPM Processor PWA)
For more information on the Honeywell 51303979-400-RP and other DCS replacement modules, please visit our technical product catalog.
