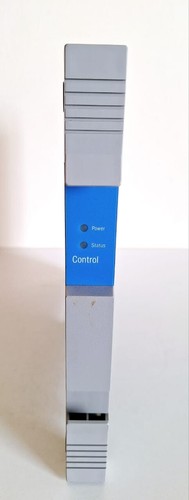

The Honeywell 51304525-100-RP is a high-reliability Power Management Module (PMM) Control Assembly designed for the TDC 3000 and Experion PKS Distributed Control Systems (DCS), ensuring stable power distribution and regulation for critical industrial processing hardware.
Product Parameters (Datasheet)
- Model Number: 51304525-100-RP
- Part Type: PMM Control Assembly (Power Management Module)
- System Compatibility: Honeywell TDC 3000 / TPS / Experion PKS
- Input Voltage: System-defined DC backplane power
- Output Regulation: Precision low-voltage DC rails for logic and I/O modules
- Redundancy: Supports redundant power configuration for high-availability systems
- Form Factor: Plug-in module for standard Honeywell cabinet racks
- Diagnostics: Integrated status LEDs for power health and fault detection
- Protection: Over-current, over-voltage, and thermal shutdown capabilities
Country of Origin
This precision control assembly is manufactured by Honeywell Process Solutions in the United States, adhering to global standards for industrial automation and safety-critical electronics.
Application Fields
The 51304525-100-RP is essential for maintaining power integrity in large-scale control environments:
- Petrochemical Refineries: Powering central controllers and safety manager racks.
- Chemical Processing: Providing stable voltage for sensitive analog and digital I/O modules.
- Power Generation: Supporting the DCS backbone in coal, gas, and nuclear facilities.
- Pharmaceutical Manufacturing: Ensuring zero-downtime power for validated process controllers.
Product Usage Instructions
- Installation: Ensure the rack power is off or in a bypass state if the system is not designed for live-insertion. Slide the PMM assembly into the designated slot until the backplane connectors are fully seated.
- Mounting: Secure the module using the top and bottom retaining screws to ensure proper grounding and vibration resistance.
- Wiring: Verify that the field power input cables are correctly lugged and torqued to the terminal blocks associated with the PMM slot.
- Monitoring: Upon power-up, observe the “OK” or “STATUS” LEDs. A green light indicates normal regulated output; an amber or red light signifies a fault or input power deviation.
- Replacement: When replacing a failed unit, verify the revision level of the new assembly matches the existing system requirements to maintain full redundancy compatibility.
Product Technical Description
The 51304525-100-RP functions as a sophisticated voltage regulator and supervisor within the Honeywell DCS architecture. Technically, it takes raw bulk DC power from the cabinet power supplies and converts it into the highly filtered, stable voltages required by the microprocessor-based control cards. The “-RP” suffix indicates a Replacement Part or a specific revision optimized for the TDC/TPS hardware lifecycle. It includes sophisticated sensing circuitry that communicates with the system’s diagnostic bus, allowing operators to monitor the “health” of the power system from the HMI console.
Q&A (Common Questions)
Q: Is the 51304525-100-RP hot-swappable? A: In many Honeywell DCS configurations, the PMM is part of a redundant pair. If a redundant partner is active and healthy, the failed module can typically be replaced while the system is running, but always consult your specific system manual first.
Q: What is the difference between the -100 and newer revisions? A: Newer revisions often feature improved thermal management or updated components to replace obsolete parts, but the -100 remains a standard for many legacy TDC 3000 installations.
Q: Can this module be used in an Experion PKS system? A: Yes, this assembly is often used in the older UCN/LCN branches that have been integrated into an Experion PKS architecture.
Q: Does it require any software configuration? A: No, the PMM Control Assy is a hardware-level power component. Once installed and powered, it automatically begins its regulation and supervision functions.
Similar Model Recommendations
- Honeywell 51304362-100 (UCN Interface Module)
- Honeywell 51403519-160 (Power Supply Module)
- Honeywell 51304754-100 (I/O Processor Assembly)
- Honeywell 51309204-175 (Control Processor Module)
- Honeywell 51403476-150 (Redundant Power Cable Kit)
For more information on the Honeywell 51304525-100-RP and other Honeywell DCS components, please contact our technical support team.
