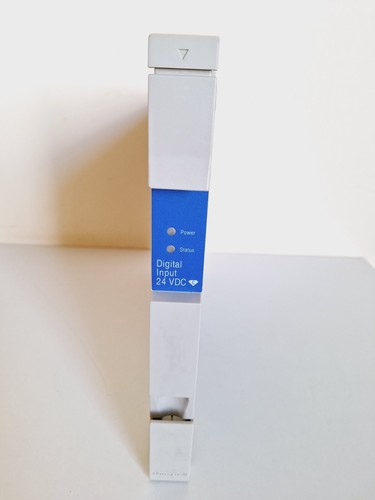

The Honeywell 80363972-150 (Part Number 51404092-400) is a high-density Digital Input (DI) module designed for the Honeywell TDC 3000 and Experion PKS automation platforms, providing 24 VDC signal sensing for critical industrial field devices.
Product Parameters (Datasheet)
- Model Number: 80363972-150
- Part Number: 51404092-400
- Input Type: Digital Input (DI)
- Operating Voltage: 24 VDC (Nominal)
- Channel Density: Typically 32 channels per board
- Input Current: Low-current sensing for reduced heat dissipation
- Signal Logic: Active High / Sinking or Sourcing (Configuration dependent)
- Isolation: Optical isolation between field side and system logic
- System Compatibility: Honeywell TDC 3000 / Experion PKS High Level Process Manager (HLPM/APM)
- Mounting: Standard Honeywell Card File / I/O Rack
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
Country of Origin
This digital input board is engineered and manufactured by Honeywell Process Solutions in the USA, built to meet global standards for distributed control system (DCS) reliability.
Application Fields
The 80363972-150 board is essential for monitoring discrete states in various industries:
- Oil & Gas: Monitoring emergency shutdown (ESD) pushbuttons and fire/gas detector states.
- Chemical Plants: Sensing the open/closed status of limit switches on automated valves.
- Power Generation: Tracking breaker status and auxiliary contact positions in substations.
- Manufacturing: Receiving signals from proximity sensors and photo-eyes on conveyor systems.
- Water Treatment: Monitoring level switches and pump motor “Run” feedback signals.
Product Usage Instructions
- Configuration: Check the hardware jumpers or DIP switches on the 51404092-400 to ensure the input voltage levels and addressing match your system database.
- Installation: Power down the I/O rack if required by site safety protocols. Align the board with the card guides and slide it firmly into the backplane connector.
- Wiring: Connect the 24 VDC field wiring to the corresponding FTA (Field Termination Assembly). Ensure the common return path is correctly grounded to avoid floating signal issues.
- Testing: Use the Honeywell Native Window or Experion Station to toggle the field device and verify the “Bit” status changes in the controller’s database.
- Maintenance: Periodically inspect the card for “Channel Fail” soft alarms in the system diagnostics, which may indicate a blown input fuse on the FTA or a component failure on the PCB.
Product Technical Description
Technically, the 80363972-150 functions as a signal conditioner and logic interface. It takes raw 24 VDC signals from the field and uses opto-couplers to convert them into low-voltage digital signals (typically 5V logic) for the High Level Process Manager (HLPM). This optical isolation is crucial because it prevents high-voltage surges or electrical noise on the field wiring from damaging the expensive central processor units. The board is designed for high-availability “always-on” service, featuring redundant power paths from the I/O backplane to ensure continuous monitoring.
Q&A (Common Questions)
Q: Can this board handle 120 VAC inputs? A: No, the 80363972-150 is strictly for 24 VDC logic. Applying 120 VAC will cause immediate and permanent damage to the input circuitry.
Q: Does the “150” suffix indicate a specific revision? A: Yes, in Honeywell’s numbering system, the suffix often denotes hardware revisions or specific coating options. The -150 is a common standard revision for R300+ systems.
Q: What is the difference between this board and the 51404092-100? A: The -400 version (51404092-400) typically includes updated components or conformal coating for improved longevity in corrosive environments compared to the base -100 series.
Q: Why are all my inputs on this board showing “OFF” despite field power being present? A: Check the 24 VDC supply fuse on the associated Field Termination Assembly (FTA). If the board lacks the reference voltage for its common bus, it cannot sense any inputs.
Similar Model Recommendations
- Honeywell 80363969-150 (Analog Input Module)
- Honeywell 51404305-375 (Digital Output Module)
- Honeywell 51404092-100 (Earlier DI Revision)
- Honeywell 51304441-175 (Pulse Input Card)
- Honeywell 80363975-150 (Low Level Analog Input)
For more information on the Honeywell 80363972-150 and other DCS spare parts, please contact our technical sales department.
