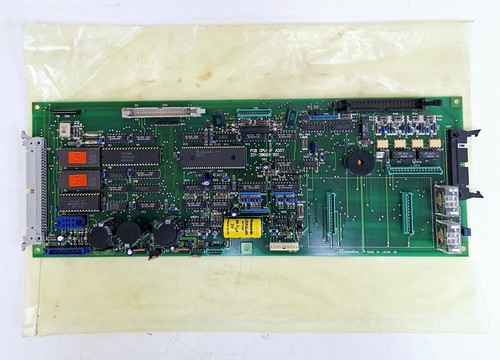

The Shimadzu 221-28603-92E (also referenced as the 221-31837E assembly) is a critical CPU-Interface (CPU-IF) printed circuit board designed for precision analytical instruments, primarily utilized within Shimadzu’s high-performance liquid chromatography (HPLC) and gas chromatography (GC) systems.
Product Parameters (Datasheet)
- Model Number: 221-28603-92E
- Assembly ID: 221-31837E
- Component Type: CPU-Interface PCB Assembly
- System Compatibility: Shimadzu LC-10, LC-20, and specialized GC series
- Processor Architecture: Integrated 16/32-bit control logic
- Communication Ports: RS-232C, specialized fiber-optic links (link-7), and internal bus interfaces
- Operating Voltage: Typically +5V, +12V DC internal rails
- Memory: Onboard EPROM/Flash for firmware storage and SRAM for volatile data buffer
- Protection: ESD-hardened signal paths and localized voltage regulation
Country of Origin
This precision electronic assembly is designed and manufactured by Shimadzu Corporation in Japan, ensuring the highest standards of laboratory-grade reliability and signal integrity.
Application Fields
The 221-28603-92E CPU-IF board is a fundamental part of laboratory automation, including:
- Pharmaceutical Analysis: Controlling the timing and data acquisition of HPLC pumps and autosamplers.
- Environmental Testing: Managing the interface between detector hardware and PC-based workstation software (LabSolutions).
- Chemical Research: High-speed data processing for chromatography peak integration.
- Food Safety: Coordinating the hardware sequence for mass spectrometry front-end systems.
Product Usage Instructions
- Preparation: Power down the main instrument and disconnect the power cable. Wait at least 60 seconds for internal capacitors to discharge.
- ESD Handling: Use a grounded anti-static mat and wrist strap. Touching the 221-28603-92E without proper grounding can damage the high-sensitivity CMOS components.
- Installation: Align the board with the card guides in the internal chassis. Gently press until the multi-pin connector is fully seated.
- Cable Connection: Reattach any internal ribbon cables or fiber-optic links to the designated headers on the PCB.
- Initialization: Upon restart, the system may require a firmware verification or “parameter initialization” via the front panel maintenance menu.
Product Technical Description
The 221-28603-92E functions as the primary communication bridge (CPU Interface) between the instrument’s main processing unit and the various peripheral modules (pumps, detectors, ovens). It handles the real-time conversion of digital commands into physical hardware actions. The “92E” and “E” suffixes denote specific hardware revisions designed for enhanced noise immunity, which is critical when processing the low-microvolt signals generated by analytical detectors. It ensures that data remains synchronized across the entire Shimadzu system bus.
Q&A (Common Questions)
Q: Can I swap this board between an LC-10 and an LC-20 system? A: While they belong to the same family, firmware compatibility varies. Always check the version of the EPROM installed on the 221-31837E before swapping between different models.
Q: What does a “Link Error” on the instrument display indicate regarding this board? A: This often points to a failure in the communication ICs on the CPU-IF board or a damaged fiber-optic cable connected to it.
Q: Is the firmware included on the board? A: Typically, these boards are shipped with base-level firmware, but they may require a specific software flash to match your instrument’s configuration.
Q: Why are there fiber-optic ports on this PCB? A: Shimadzu uses optical links (Link-7) to provide total electrical isolation between modules, preventing ground loops that could interfere with sensitive analytical data.
Similar Model Recommendations
- Shimadzu 221-41130-91 (Alternative CPU Board)
- Shimadzu 221-34440-91 (Power Supply PWA)
- Shimadzu 228-35010-92 (Main Controller PCB)
- Shimadzu 221-31837-00 (Earlier revision of the CPU-IF)
- Shimadzu 228-45000-91 (LC-20 Series System Controller)
For more information on the Shimadzu 221-28603-92E and other laboratory automation components, please visit our technical catalog.
