Description
Product Overview
The Honeywell 05701-A-0301 is a high-reliability, single-channel gas control card designed for the Honeywell Analytics System 57 control framework. This module acts as the centralized interface for a single toxic gas, flammable gas, or oxygen detector, processing analog signals from the field transmitter and translating them into real-time concentration readouts. Engineered for critical safety instrumented systems (SIS), the 05701-A-0301 features an integrated 4-digit LCD display, adjustable alarm thresholds, and fully programmable relay outputs to initiate emergency ventilation, sound alarms, or trigger plant shutdown systems upon detecting hazardous atmospheric changes.
To verify availability and source authentic parts for your plant safety systems, visit the Honeywell Industrial Control Equipment platform.
Technical Specifications
- Manufacturer: Honeywell Analytics / Zellweger
- Series: System 57 Control System
- Model Keyword: HONEYWELL 05701-A-0301 Control Card
- Dimensions: 17.2 cm x 3.1 cm x 11.4 cm
- Weight: 0.28 kg (0.62 lbs)
- Country of Origin: United Kingdom (UK)
- Signal Input: 3-wire or 2-wire 4-20 mA current loops (Sink or Source)
- Display Type: 4-character backlit LCD with integrated engineering unit icons
- Relay Outputs: Three fully programmable alarm relays (A1, A2, A3) and one dedicated fault relay
- Power Supply: 21 to 32 VDC nominal input range
- Power Consumption: 3.5 Watts maximum

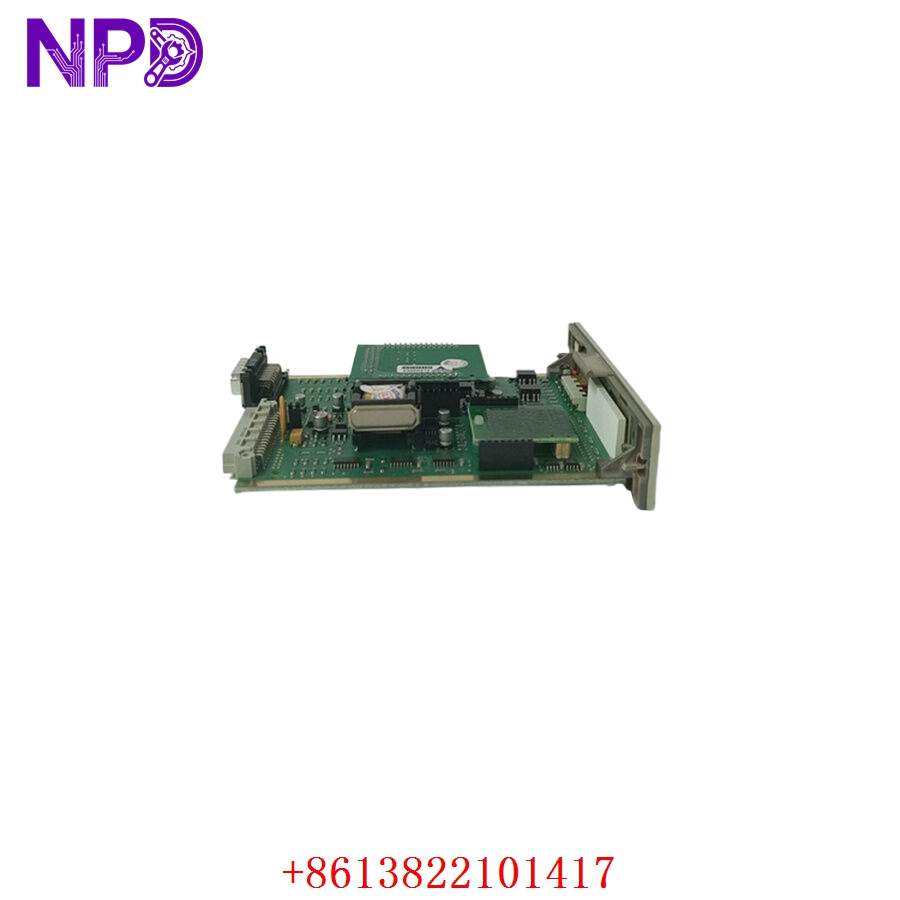

HONEYWELL 05701-A-0301

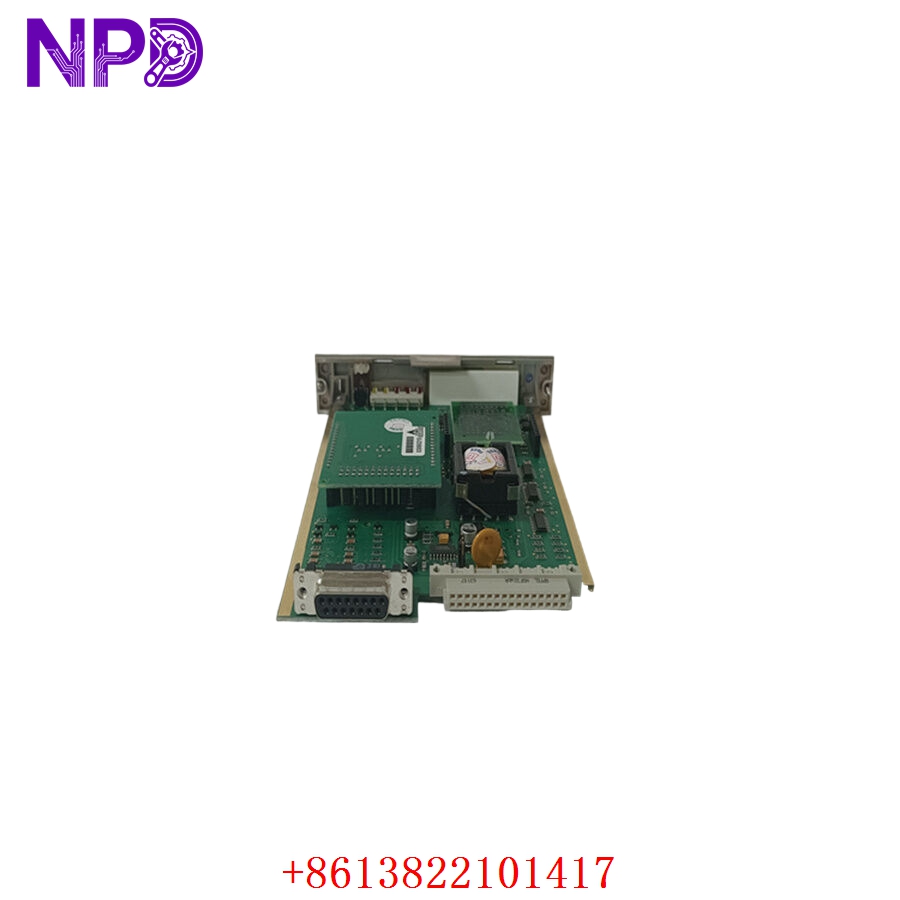

HONEYWELL 05701-A-0301

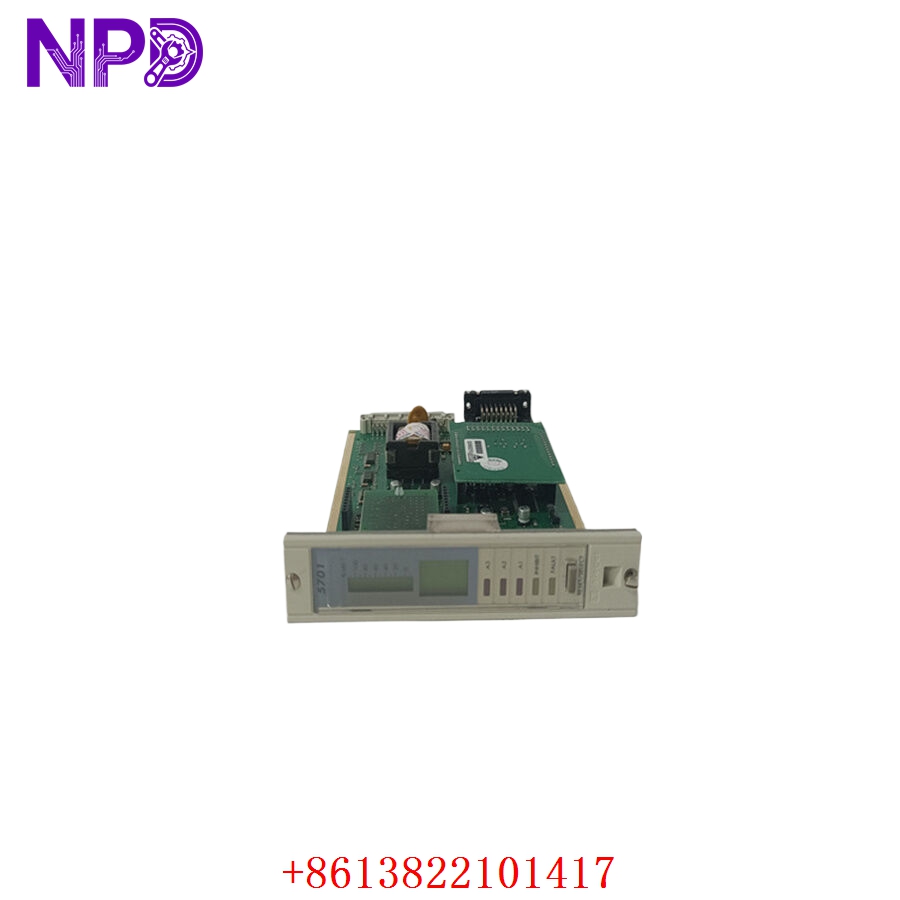

HONEYWELL 05701-A-0301
Application Fields
The 05701-A-0301 card is vital for continuous gas monitoring and safety interlock automation across various harsh environments:
- Petrochemical and Refining: Continuous monitoring of combustible hydrocarbon leaks and toxic H_2S concentrations in processing units.
- Wastewater Treatment: Detecting methane accumulations and oxygen depletion in confined wet wells and storage tanks.
- Chemical Manufacturing: Tracking volatile organic compounds (VOCs) and hazardous process gas releases near storage vessels.
- Semiconductor Fabrication: Monitoring specialized toxic gases used in wafer etching and deposition cleanrooms.
Product Installation and Usage Instructions
- Preparation and Safety: Power down the System 57 rack enclosure prior to installation. Ensure compliance with local hazardous area electrical standards and wear a grounded ESD wrist strap to protect the electronic circuits.
- Card Insertion: Slide the 05701-A-0301 control card into its designated slot within the 19-inch sub-rack chassis until the rear multi-pin DIN connector seats firmly into the backplane.
- Mechanical Locking: Fasten the two captive thumbscrews located on the front faceplate to ensure the module is locked securely in place and properly grounded to the chassis frame.
- Field Wiring: Connect the field gas detector cables to the corresponding terminals on the rear passive interface assembly block, ensuring correct polarity for 4-20 mA signal transmission.
- Calibration and Configuration: Apply power to the system. Use the front panel push-buttons (or System 57 software) to select the target gas type, set the span gas value, adjust the low/high alarm setpoints, and execute a zero calibration check.
Frequently Asked Questions (Q&A)
Q: Can the 05701-A-0301 be used with both catalytic bead and electrochemical gas detectors?
A: Yes. The card is designed to accept a standard industrial 4-20 mA signal, allowing it to interface seamlessly with various transmitter types, including catalytic, electrochemical, and infrared gas sensors.
Q: What do the different indicators on the card faceplate signify?
A: Beside the main LCD concentration display, the card features discrete LEDs: green indicates normal operation (Power/Run), amber signifies a system fault, and individual red LEDs light up when Alarm 1, Alarm 2, or Alarm 3 thresholds are crossed.
Q: Is it necessary to recalibrate the control card when replacing a field sensor?
A: Yes, it is highly recommended. To ensure accurate gas concentration readings, a complete loop calibration (zero and span adjustment) should be performed at the control card level whenever a new field sensor is connected.
Q: Are the internal relay contacts on this card latching or non-latching?
A: The configuration is fully customizable. Through the control card setup menu, you can configure the alarm relays to be latching (requiring manual reset after an alarm event clears) or non-latching (automatic reset).
