Description
The Bently Nevada 146031-01 is the primary main control card for the 3500/22M Enhanced Transient Data Interface (TDI). The TDI is the central communication heart of the Bently Nevada 3500 Machinery Protection System rack, serving as the bridge between the individual monitoring modules and host software applications like System 1 Asset Management. The 146031-01 module collects static and transient dynamic data (such as waveforms during turbine startups and shutdowns) from all active channels within the rack. It supports dual redundant Ethernet connections and integrated USB diagnostic ports, providing secure, reliable data streaming alongside critical time-synchronization functions necessary for rotating machinery protection.

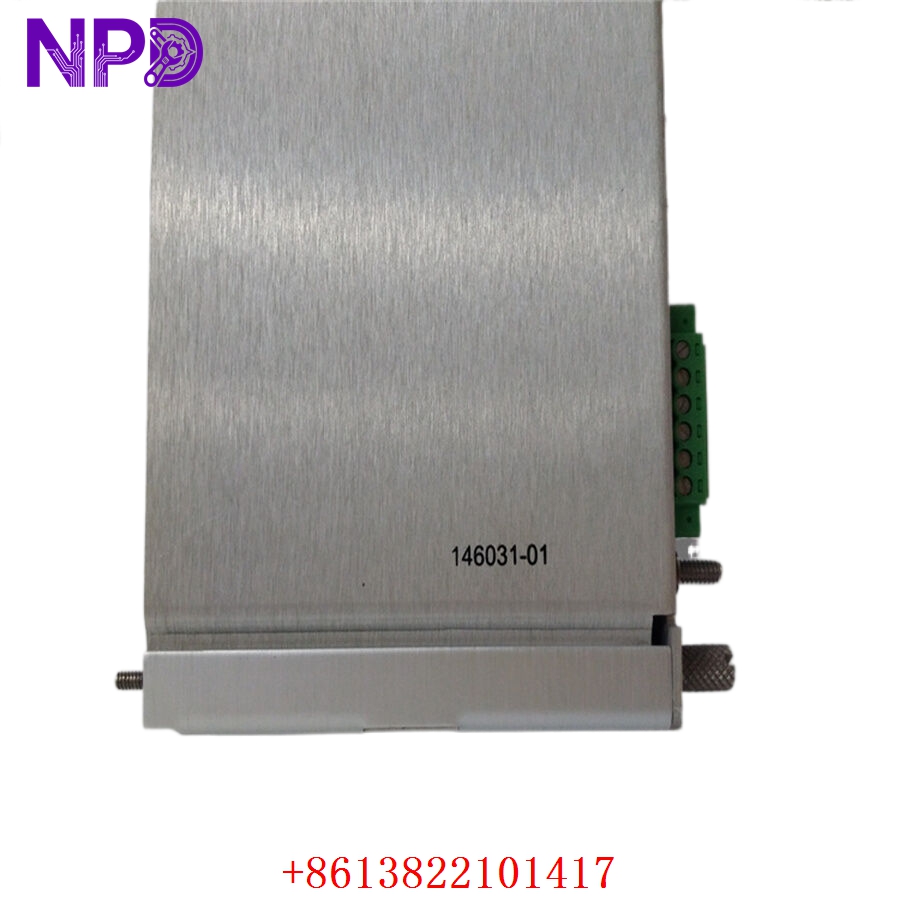

BENTLY 146031-01 3500/22M

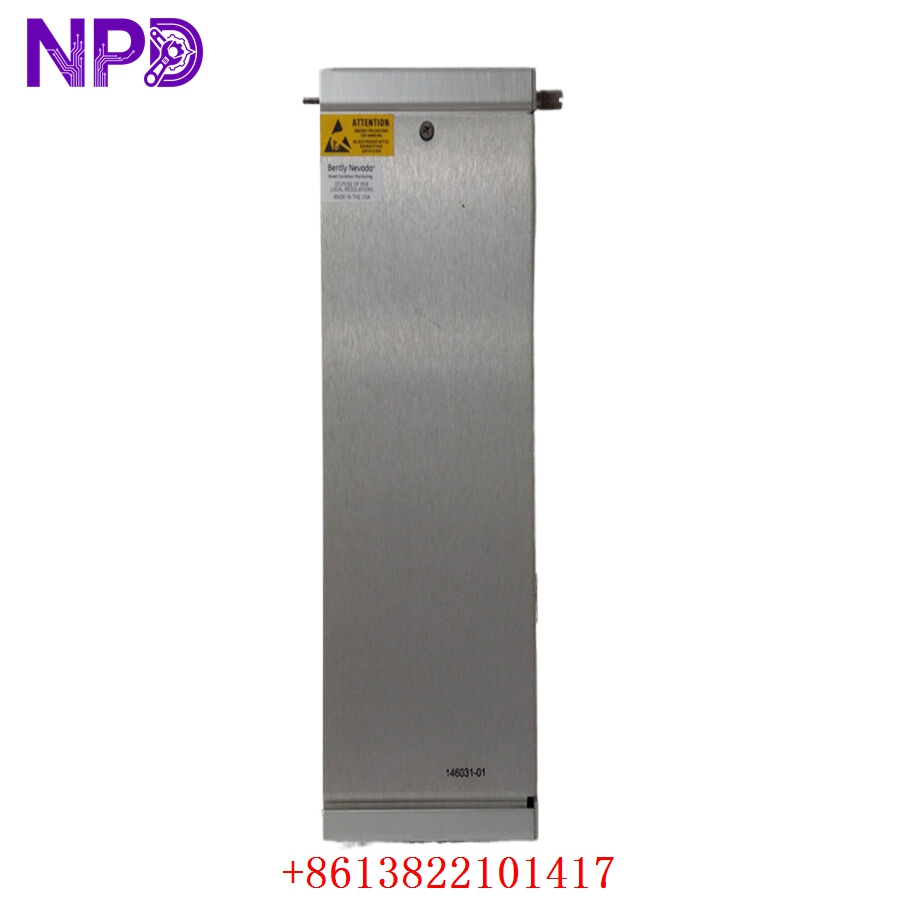

BENTLY 146031-01 3500/22M

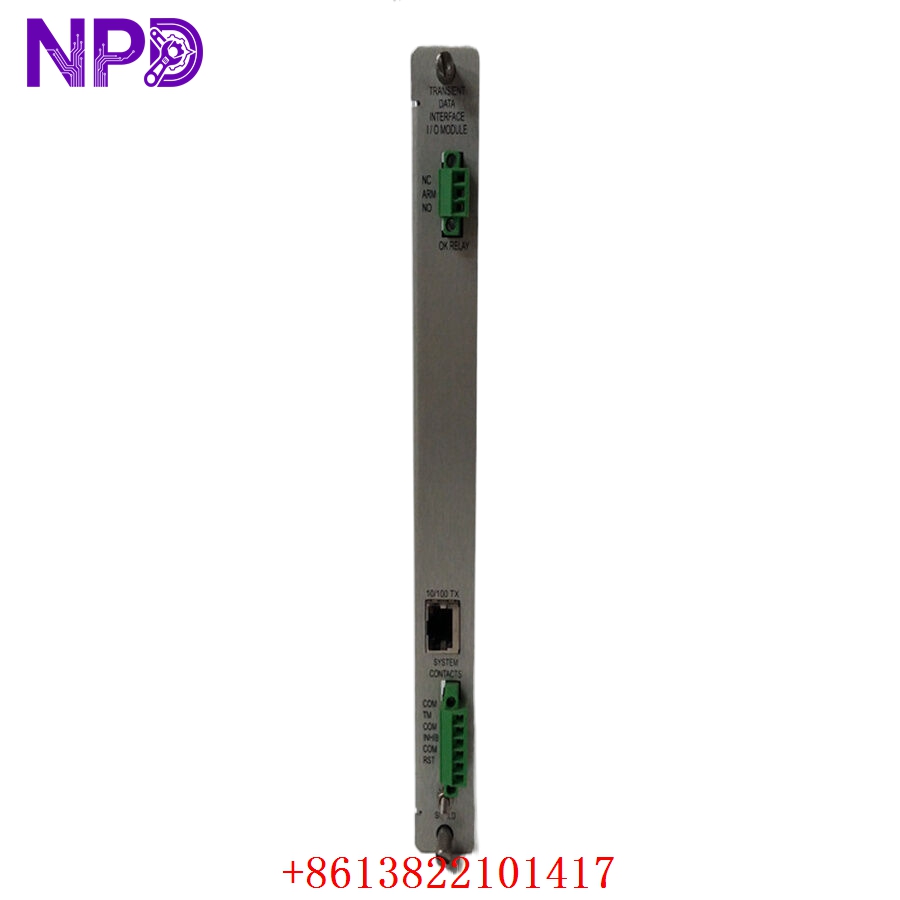

BENTLY 146031-01 3500/22M
BENTLY 146031-01 3500/22M
Technical Specifications
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3500 Series Machinery Protection System
- Model Keyword: BENTLY NEVADA 146031-01 3500/22M TDI
- Module Type: Enhanced Transient Data Interface (Full-height)
- Dimensions: 24.1 cm x 2.4 cm x 10.3 cm
- Weight: 0.58 kg (1.28 lbs)
- Country of Origin: United States (USA)
- Communications: Dual RJ45 Ethernet ports (10BASE-T/100BASE-TX) and 1 USB Type-B port
- Protocols Supported: Modbus TCP/IP, Bently Nevada proprietary host protocol
- Operating Temperature: -30°C to 65°C (-22°F to 149°F)
- Power Consumption: 5.1 Watts nominal
Application Fields
The 146031-01 TDI module is an essential integration component across industries utilizing heavy-duty turbomachinery:
- Utility Power Generation: Collecting transient startup/coast-down vibration trends from large steam and gas turbine sets.
- Petrochemical Industry: Providing deep machinery diagnostics for multi-stage centrifugal compressors and process expanders.
- Mining and Heavy Extraction: Interfacing predictive diagnostic data for massive air blowers, mill drives, and extraction fans.
- Water Utilities: Monitoring continuous performance metrics and shock profiles on large high-pressure water pump aggregates.
Product Installation and Usage Instructions
- Chassis Preparation: Locate the dedicated “TDI” slot on the far left side of the Bently Nevada 3500 rack frame (directly adjacent to the power supplies). Ensure your body is properly grounded via an ESD wrist strap before unboxing.
- Inserting the Module: Align the 146031-01 card within the top and bottom guide rails of the designated TDI slot. Slide the board slowly and firmly inward until it engages with the rack backplane connectors.
- Securing the Hardware: Tighten the two captive mounting screws positioned on the top and bottom of the front faceplate to ensure ground structural unity and prevent disconnects from plant vibration.
- Network Setup: Attach your standard RJ45 network cables to the corresponding ports on the rear 3500/22M I/O module to tie the rack into your plant’s data highway or System 1 server network.
- Software Provisioning: Launch the 3500 Rack Configuration Software via an authorized laptop or workstation. Establish a connection via the front USB port or network IP to upload configuration files, set Modbus register maps, and sync the internal clock.
Frequently Asked Questions (Q&A)
Q: What is the main difference between the 3500/22M (146031-01) and the older standard 3500/22 TDI? A: The “M” designation denotes Enhanced Transient Data Interface capabilities. The 146031-01 provides faster data processing, greater storage buffer capacity for transient waveform data during sudden trips, and standard USB connectivity for simplified field programming.
Q: Does a 3500 rack require the 146031-01 module to perform automatic machine trips? A: No. The protective machinery trip relays and logic are handled locally on individual monitor modules (like the 3500/42M). However, the TDI is strictly required to configure the rack, sync data, and communicate with external DCS or condition monitoring software.
Q: What do the front panel indicator lights signify on this board? A: The board features discrete LEDs: “OK” (green indicates normal internal operations), “TX/RX” (flashing amber implies active communication with host software), and “CONFIG” (steady amber means the module is in configuration mode or lacks a valid profile).
Q: Can I use this card without a corresponding rear I/O module? A: No. The 146031-01 is the internal processing card. It must be physically paired with a compatible rear-facing I/O module (such as the 146045-01 standard Ethernet/Modbus I/O or 147364-01 isolated I/O) to route physical communication links.
