3500/15 106M1081-01
3500/15 106M1081-01

3500/15 106M1081-01 |Bently Nevada | AC Power Input Module

Original price was: ¥99,999.00.Current price is: ¥2,201.00.

⚠️Product NO： 3500/15 106M1081-01

⚙️Brand： Bently Nevada

🏚️Delivery time:  In stock

🆕Product status:   Brandnew

🌍Sales country: All over the world

🥇Product situation: one year warranty, Origin of Manufacture

Add to quote
Category: SKU: 3500/15 106M1081-01 Tag:
Felix Sales Manager
[email protected] +86 138 2210 1417 8613822101417
WhatsApp
QR
Chat Now
There are still many products that have not been released yet. If you have any products that you cannot find, you can ask me for a quote! Reminder: The product images published on this website are not actual real products and are for reference only!

Description

The Bently Nevada 3500/15 106M1081-01 is a Universal AC Power Input Module designed for the 3500 series machinery protection system power supply.

Product Overview

This power input module accepts a wide range of universal AC voltages and works with the 3500/15 Universal AC Power Supply to provide stable DC power for the entire 3500 rack. It mounts directly behind the power supply module in designated left-side rack slots, supporting single or dual-redundant power configurations.

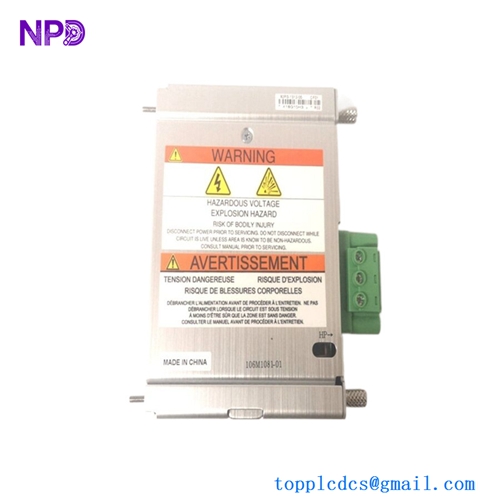

3500/15 106M1081-01
BENTLY 3500/15 106M10793500/15 106M1081-01-01

Technical Parameters

  • Type: Universal AC Power Input Module (PIM) for 3500/15
  • Input Voltage: 85-264 VAC RMS (non-hazardous), 85-250 VAC RMS (hazardous areas)
  • Input Voltage Peak: 120-373 VAC peak
  • Input Frequency: 47-63 Hz
  • Maximum Input Current: 2.5A RMS (maximum)
  • Dimensions: 120.7 mm H x 25.4 mm W x 114.3 mm D (4.75 x 1.0 x 4.5 in)
  • Weight: 0.34 kg (0.75 lb)
  • Operating Temperature: -30°C to +65°C (-22°F to +150°F)
  • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
  • Humidity: 95% non-condensing
  • Mounting: Rack-mounted behind 3500/15 power supply module

Manufacturing Origin

Manufactured by Bently Nevada, a Baker Hughes business, at their primary facility in Minden, Nevada, USA. The 3500 series serves global industrial markets requiring certified machinery protection equipment.

3500/15 106M1081-01
3500/15 106M1081-01

Common Questions

Q: What AC voltage range does this module support?
A: 85-264 VAC RMS continuous (110-220 VAC nominal), 47-63 Hz frequency range.

Q: Is this module hot-swappable?
A: No. Power down rack before installing or removing power supply modules.

Q: What’s the fuse specification for replacement?
A: 5A/500 VAC fast-blow, 6.3 x 32 mm size (standard industrial fuse).

Q: Can I mix AC and DC power supplies in one rack?
A: Yes. 3500 rack supports any combination of AC/DC supplies in top/bottom slots.

Q: Does it support hazardous area installation?
A: Yes, certified Class I Div 2 and Zone 2 when installed per drawing 149243/149244.

Similar Models

Five related Bently Nevada 3500 power modules:

  • 125840-01 – Legacy High Voltage AC Power Input Module
  • 125840-02 – Legacy Low Voltage AC Power Input Module
  • 129478-01 – High Voltage DC Power Input Module (88-140 VDC)
  • 106M1079-01 – Universal AC Power Supply Module (pairs with 106M1081-01)
  • 129486-01 – Legacy High Voltage DC Power Supply Module
