Description

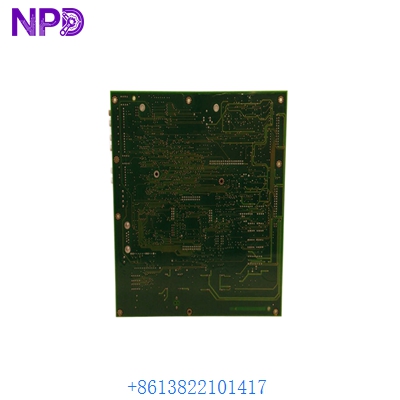

- Model: ABB 3ASC25H203 (DAPC100 / 3BSC980004R1014)
- Brand: ABB (Switzerland/Sweden)
- Series: Distributed Architecture Series
- Core Function: Processing and control module for high-speed drive or power systems
- Condition: Brand New Surplus (Original Box), Never Used
- Type: Controller Module (DAPC)
- Key Specs: High-speed communication interface | Built-in diagnostics | Advanced logic
- Processor Type: High-performance embedded RISC processor
- Interface 1: High-speed fiber optic link for I/O synchronization
- Interface 2: RS-232/485 serial for local configuration
- Operating Voltage: 24 V DC nominal (Range: 18-30 V DC)
- Power Consumption: Approx. 15 W under full load
- Memory: High-speed RAM with Flash storage for firmware
- Mounting: Sub-rack or backplane integrated mounting
- Cooling: Natural convection (Airflow required)
- Diagnostic LEDs: Power, Status, Error, and Communication Link indicators
- Protocol Support: Proprietary high-speed internal bus + Standard Modbus capability
ABB 3ASC25H203 DAPC100 3BSC980004R1014
Installation & Configuration Guide
In my experience, replacing a 3ASC25H203 isn’t just about the physical swap; it’s about ensuring the firmware and parameters match your existing system architecture. If you miss a jumper setting or a firmware revision, the module might power up but refuse to talk to the rest of the rack.
Phase 1: Pre-Installation (Estimated: 15 minutes)
⚠️ Safety First:
- Confirm the process is in a safe state. Power systems must be de-energized.
- Ensure you have a current backup of the controller configuration.
- Wear an ESD (Electrostatic Discharge) wrist strap. These DAPC100 boards are sensitive to static.
Tools Needed:
- Torque screwdriver (small flat-head/Phillips)
- Multimeter (for voltage verification)
- Flashlight and smartphone for documenting existing cable runs.
Phase 2: Removal & Setup
- Document Everything: Take a clear photo of the DIP switches and any jumper headers on the old board. The new board must match these exactly.
- Cable Labeling: If there are fiber optic cables, label them “TX” and “RX” before unplugging. Fiber ends are fragile; don’t touch the tips.
- Unlocking: Loosen the retaining screws on the front panel and pull the module straight out from the backplane to avoid bending pins.
Phase 3: Hardware Commissioning
- DIP Switch Sync: Set the Node Address on the new 3ASC25H203 to match the unit you just pulled.
- Physical Insertion: Align the card with the guides. Push firmly until the connectors seat. You shouldn’t have to force it—if it resists, check for obstructed pins.
- Power-On Self-Test (POST): Apply power. Watch the “Power” LED. It should go green immediately. If the “Error” LED flashes red, it usually indicates a configuration mismatch or a firmware version conflict.
Phase 4: System Integration
- Use the ABB engineering software to scan the bus.
- Verify that the 3BSC980004R1014 is recognized and the status is “OK.”
- If the system requires it, download the specific logic parameters. I’ve seen cases where the module needs a firmware flash to match the older rack—check your version numbers!
ABB 3ASC25H203 DAPC100 3BSC980004R1014
Customer Cases & Industry Applications
Case 1: Emergency Drive System Repair at a Steel Mill A large steel plant in northern China faced a critical failure in their rolling mill drive system. The DAPC100 controller failed after a cooling fan malfunctioned, causing the board to overheat. The original manufacturer quoted a 14-week lead time. By sourcing a New Surplus 3ASC25H203 from our stock, the plant was back online in 48 hours. Result: They avoided an estimated $400,000 in lost production.
Case 2: Preventive Maintenance for Offshore Wind Power An offshore platform operator noticed intermittent communication errors on their power conversion string. Rather than waiting for a total blackout, they procured two 3BSC980004R1014 units as “insurance stock.” During a scheduled maintenance window, they swapped the aging modules for our new units. Result: The “insurance policy” paid off; communication errors dropped to zero, and the retired modules were sent for secondary testing.
Frequently Asked Questions (FAQ)
Q: Is the 3ASC25H203 the same as the DAPC100? A: Yes. DAPC100 is the functional designation (Distributed Architecture Power Controller), while 3ASC25H203 is the hardware part number. 3BSC980004R1014 is the specific ordering code for the assembly. They are the same physical module.
Q: Why should I buy “New Surplus” instead of a cheaper refurbished unit? A: Honestly? Peace of mind. Refurbished boards often have components like capacitors that are already 10 years into their life cycle. Our New Surplus units have zero hours of operation. In high-stakes environments like power generation, the 500 you save on a “used” part isn’t worth a 50,000 unplanned shutdown.
Q: Will I need to update my firmware? A: Possibly. ABB frequently updated the firmware for this series. Check the sticker on your current module (e.g., “FW Ver 3.2”). We can check the firmware version on our stock items before shipping to ensure compatibility with your existing rack.
Q: How do you handle shipping to the US or Europe? A: We use DHL or FedEx International Priority. Typically, a 3ASC25H203 leaves our warehouse within 24 hours of payment and reaches your site in 4 to 6 business days. We provide all necessary commercial invoices and HS codes (usually 8537.10) to clear customs smoothly.
Q: Can I get a test report? A: Absolutely. Every module we sell undergoes a power-on test and a communication handshake on our test bench before it is sealed in an anti-static bag. We can provide photos or a video of the specific serial number functioning upon request.
