Description
Product Overview
The ABB 5SHX14H4502 is an advanced industrial power drive module used in medium- to high-power AC motor control and automation applications. It provides efficient power conversion, precise motor speed regulation, and reliable protection features. It incorporates key internal subassemblies — the 3BHB003230R0101 power electronics core, the 5SXE05-0152 auxiliary subsystem, and the 3BHB003023P201 control/logic interface — to deliver a complete and coordinated drive solution. This module is engineered for continuous operation in demanding industrial environments.

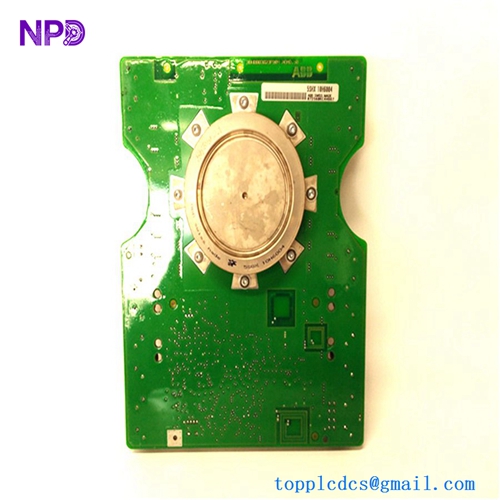

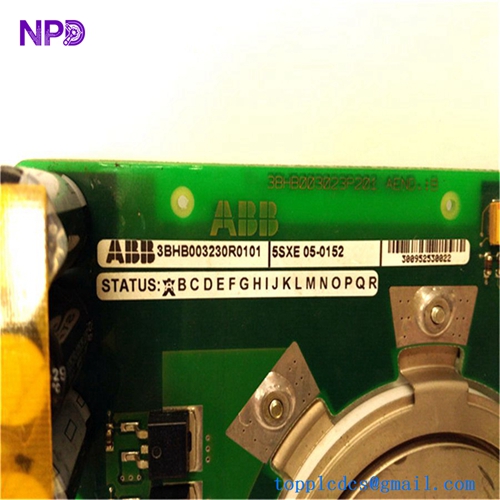

ABB 5SHX14H4502 3BHB003230R0101 5SXE05-0152 3BHB003023P201
Product Parameters
- Model: 5SHX14H4502
- Internal Part Numbers:
- Power Module: 3BHB003230R0101
- Auxiliary Subsystem: 5SXE05-0152
- Control Interface: 3BHB003023P201
- Product Type: Power drive / motor control module
- Application: Variable frequency drive for AC motors
- Input Supply: Three-phase AC supply
- Output Power Range: Medium to high power class
- Control Technique: PWM (Pulse Width Modulation)
- Cooling Method: Forced-air or heat-sink cooled design
- Protection Functions: Overcurrent, overvoltage, short-circuit and thermal protection
- Mounting: Cabinet or rack installation
- Operating Temperature: Industrial temperature range
- Electrical Isolation: Galvanic isolation between control and power circuits
Product Datasheet (Key Technical Data)
| Specification | Description |
|---|---|
| Module Category | Industrial power drive |
| Model Number | 5SHX14H4502 |
| Power Electronics | 3BHB003230R0101 |
| Auxiliary Module | 5SXE05-0152 |
| Control Interface | 3BHB003023P201 |
| Input Voltage | Three-phase AC |
| Output Frequency | Adjustable via PWM |
| Control Method | PWM with feedback control |
| Cooling | Forced air / heatsink |
| Protection | Overcurrent, overvoltage, thermal |
| Mounting | Cabinet / rack |
Country of Origin
- Original Manufacturer: ABB
- Country of Origin: Sweden
Product Technical Description
The 5SHX14H4502 is a complete drive solution designed to provide precise motor control and robust protection in industrial systems. The 3BHB003230R0101 power electronics core performs AC to controlled variable frequency AC conversion, enabling accurate motor speed and torque control. It uses advanced semiconductor switching and PWM techniques to maintain efficient and smooth power delivery across a wide operating range.
The 5SXE05-0152 auxiliary subsystem supports signal conditioning, interface power, and supplementary control functions. This ensures stable module operation and reliable interface communication under industrial operating stresses.
The 3BHB003023P201 control interface interprets setpoints and status signals from supervisory controllers or local operator panels. It executes protective logic, communicates status feedback, and coordinates module actions with the wider automation system.
Integrated protection features monitor current, voltage, and temperature parameters in real time. When abnormal conditions arise, the module initiates protective shutdowns or alerts to safeguard both the drive and the connected motor. Galvanic isolation between control and power circuitry enhances signal integrity and protects sensitive control electronics from high-energy transients.
Frequently Asked Questions (Q&A)
Q1: What type of motor is this drive module designed for?
A1: It is designed for AC induction motors requiring variable speed control.
Q2: What protections are built into the module?
A2: The drive includes overcurrent, overvoltage, short-circuit, and thermal protection.
Q3: How is the module cooled?
A3: The module is designed for forced-air or heat sink cooling within an electrical cabinet.
Q4: Can it operate continuously?
A4: Yes. It is engineered for continuous duty in industrial applications.
Q5: What does galvanic isolation provide?
A5: It protects control electronics from power-side electrical noise and transients.
