- Model Number: 1606-105
- Manufacturer: Aalborg (Emerson Process Management)
- Part Category: Mission Power Distribution / Control Panel
- Input Voltage: 115V / 230V AC (Application dependent)
- Output Configuration: Multi-channel fused power distribution
- Compatibility: Mission Boiler Systems and K-Series Control Platforms
- Mounting: Internal cabinet/backplane mounting
- Enclosure Rating: Designed for marine and industrial engine room environments
- Indicator Type: LED status indicators for power and fault detection
- Connectivity: Integrated terminal blocks for field wiring

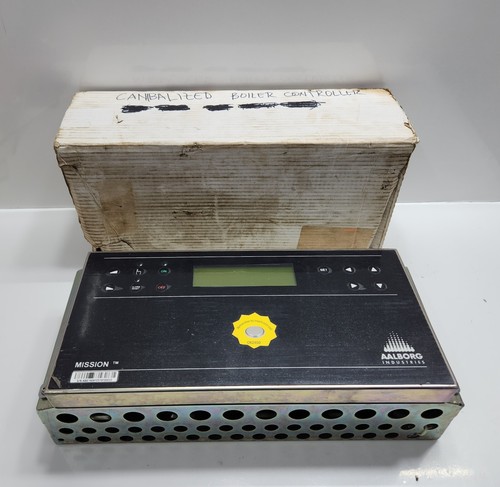

The Aalborg Emerson 1606-105 is a specialized power management module designed to regulate and distribute electrical loads within marine boiler control systems. This mission power panel ensures high availability and electrical isolation for critical control circuits, acting as a centralized hub that protects sensitive electronics from power surges and distribution faults common in heavy industrial marine environments.
Differences from Similar Models
The 1606-105 is part of a specific lineage of Aalborg boiler controls, featuring distinct characteristics compared to related units:
- Channel Density: The 105 variant is optimized for specific power-out stages required for Mission boiler configurations, whereas models like the 1606-102 may have fewer distribution branches.
- Filtering Capabilities: This model includes enhanced EMI/RFI filtering tailored for Emerson’s newer digital control modules, providing cleaner power than older legacy power panels.
- Component Tolerance: The 1606-105 utilizes high-spec industrial capacitors and fuses rated for higher vibration environments typical of shipboard installations, distinguishing it from standard onshore power strips.
- Logic Integration: While some power panels are passive, the 105 often works in tandem with the burner management system to provide feedback loops that are not present in simpler 1606-series junction boxes.
Product Operation Tips
- Fuse Verification: Always check the rating of the individual glass or ceramic fuses on the board. Replacing a blown fuse with a higher amperage than specified on the 1606-105 silk screen can cause permanent damage to the underlying PCB traces.
- Terminal Tightness: Due to the high-vibration nature of boiler rooms, perform a periodic “tug test” on all wiring terminals to ensure that thermal expansion hasn’t loosened the connections, which could lead to arcing.
- Isolation Testing: When performing insulation resistance (Megger) tests on the system, disconnect the 1606-105 module to prevent the high testing voltage from damaging the panel’s internal sensitive monitoring components.
- LED Status Mapping: Familiarize yourself with the LED patterns; a dim or flickering “Power OK” LED often indicates a failing capacitor or an overloaded branch circuit before a complete failure occurs.
