Description
The Bently Nevada 146031-01 is a high-performance Ethernet I/O module designed for the 3500/92 Communication Gateway system. It serves as the physical interface between the 3500 monitoring rack and external networks, enabling the seamless transmission of critical machinery health data to plant-wide control systems and diagnostic software.
Product Introduction
The 146031-01 is a backplane-mounted I/O module that provides the 3500 system with standard Ethernet connectivity. It works in conjunction with the 3500/92 Communication Gateway module to translate internal rack data into industry-standard protocols. By utilizing this module, users can remotely monitor vibration, temperature, and speed parameters across a localized or wide-area network.

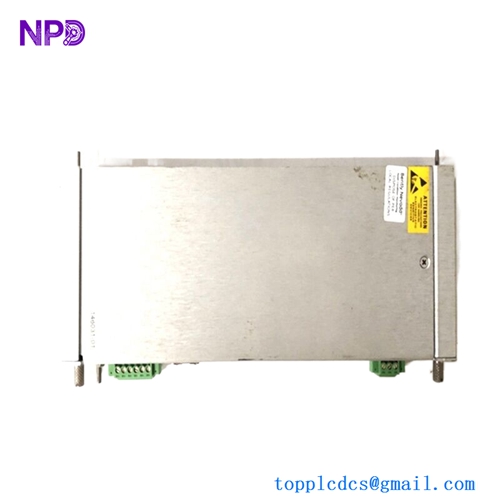

BENTLY 146031-01
Product Parameters (Datasheet)
| Parameter | Specification |
| Model Number | 146031-01 |
| Network Support | 10Base-T and 100Base-TX Ethernet |
| Connector Type | RJ-45 (Shielded) |
| Protocols | Modbus TCP/IP, Ethernet/IP (via 3500/92) |
| Compatibility | Bently Nevada 3500/92 Gateway |
| Maximum Cable Length | 100 meters (Cat5 or better) |
| Operating Temp | -30°C to +65°C |
| Humidity | 95% non-condensing |
| Mounting | 3500 Rack Rear I/O Slot |
Country of Origin
- Origin: United States (USA)
Application Areas
- Power Generation: Monitoring turbine-generator sets via centralized control rooms.
- Oil & Gas: Integrating compressor and pump vibration data into SCADA systems.
- Mining: Remote diagnostics for heavy rotating machinery in harsh environments.
- Water Treatment: Networked monitoring of large motor-driven pumping stations.

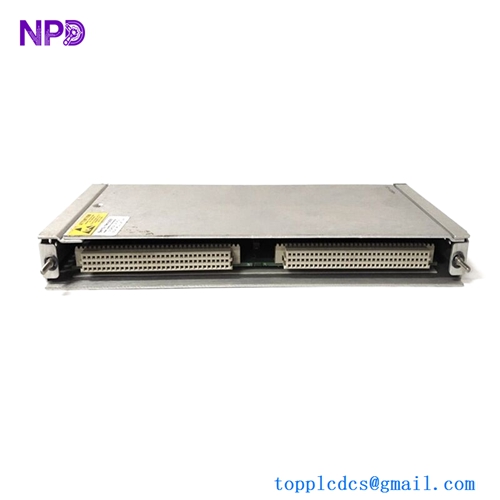

BENTLY 146031-01
Product Technical Description
- High-Speed Throughput: Supports auto-negotiation between 10Mbps and 100Mbps to ensure optimal data transfer rates based on network infrastructure.
- TMR Compatibility: Can be used in standard or redundant rack configurations to ensure no loss of communication during a single component failure.
- Isolation: Provides electrical isolation between the internal 3500 rack bus and the external Ethernet network, protecting sensitive monitoring electronics from surges.
- Plug-and-Play Integration: Designed for hot-swappability when used in redundant pairs, allowing for maintenance without interrupting the primary data stream.
Instructions for Use
- Installation: Insert the 146031-01 module into the rear slot directly behind the 3500/92 Communication Gateway main module.
- Cabling: Connect a shielded Category 5e (or higher) Ethernet cable with an RJ-45 connector to the port.
- Configuration: Use the 3500 Rack Configuration Software to assign a static IP address, subnet mask, and gateway to the module.
- Verification: Check the LED indicators on the front of the 3500/92 module to confirm “Link” and “Activity” status on the Ethernet port.
Product Q&A
- Q: Can this module be used without the 3500/92 main module?
- A: No, the 146031-01 is an I/O interface; it requires the 3500/92 main module to process the communication protocols.
- Q: Does it support fiber optic connections?
- A: This specific part is for copper (RJ-45). Fiber optic requirements require a different I/O module variant or an external media converter.
- Q: Is the module hot-swappable?
- A: Yes, in a redundant configuration, the I/O module can be replaced without shutting down the entire 3500 rack.
Recommended Similar Models
- Bently Nevada 125734-01 (Internal Termination I/O Module)
- Bently Nevada 136180-01 (3500/92 Main Gateway Module)
- Bently Nevada 133323-01 (RS-232/RS-422 I/O Module)
- Bently Nevada 146031-02 (100Base-FX Fiber Optic I/O variant)
- Bently Nevada 125720-01 (3500/22M Transient Data Interface)
