Description
The TRICONEX 3704E is a high-reliability, TMR (Triple Modular Redundancy) digital input module designed for the Tricon safety system. It provides 64 isolated input points, specifically engineered to interface with 48V AC/DC signals in safety-critical industrial environments where continuous operation and fault tolerance are mandatory.
Product Introduction
The 3704E module is a core component of the Triconex safety platform. It utilizes a Triple Modular Redundant architecture, where three independent sub-circuits on the module monitor every input signal. The results are compared and “voted” upon by the main processors to ensure that a single hardware failure cannot cause a false trip or a failure to trip. The TRICONEX 3704E is globally recognized for its ability to maintain safety integrity while maximizing plant uptime.

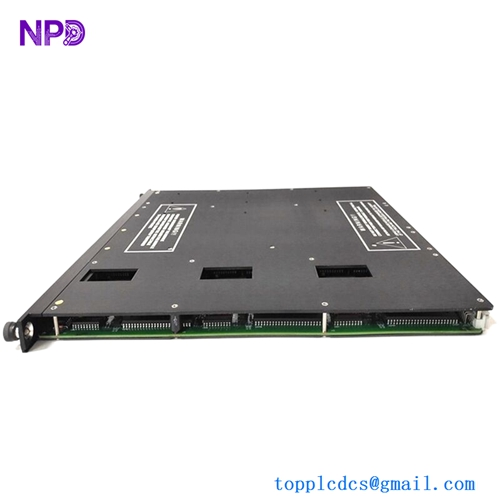

- TRICONEX 3704E
Product Parameters (Datasheet)
| Parameter | Specification |
| Model Number | 3704E |
| Input Type | High-Density Digital Input |
| Number of Points | 64 (Isolated) |
| Nominal Voltage | 48V AC/DC |
| Voltage Range | 30V to 60V AC/DC |
| Redundancy | Triple Modular Redundancy (TMR) |
| Self-Test Interval | Every 500 milliseconds |
| Point Isolation | 1500V DC |
| Power Consumption | < 10 Watts |
| Status Indicators | Pass, Fault, Active, Load |
Country of Origin
- Origin: United States (USA)
Application Areas
The TRICONEX 3704E is primarily used in Safety Instrumented Systems (SIS) and Critical Control applications:
- Emergency Shutdown (ESD): Monitoring critical push-buttons and field switches.
- Fire and Gas (F&G): Interfacing with smoke, heat, and gas flame detectors.
- Burner Management Systems (BMS): Ensuring safe startup and shutdown of boilers.
- Nuclear Power: Safety-related control and monitoring circuits.
- Turbine Control: Monitoring overspeed switches and hydraulic status.

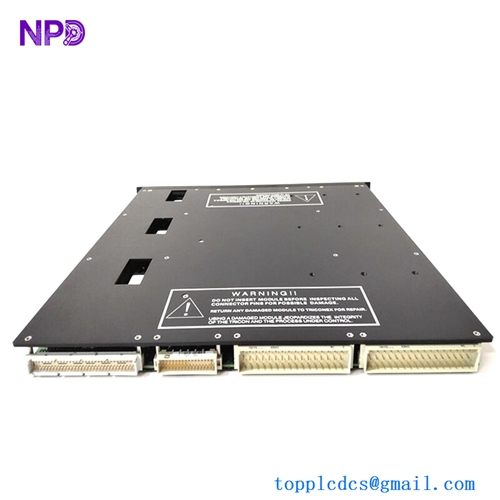

- TRICONEX 3704E
Product Technical Description
- Triple Modular Redundancy (TMR): The module contains three identical processing paths. If one path fails, the other two continue to provide the correct data to the system, allowing for online replacement without stopping the process.
- Comprehensive Diagnostics: The module continuously performs self-tests to detect “stuck-on” or “stuck-off” conditions and field wiring faults.
- Hot-Swappable: Supports online replacement. A faulty module can be pulled and a new one inserted while the process remains running.
- High Density: Consolidates 64 input points into a single chassis slot, reducing the overall footprint of the safety system.
Instructions for Use
- Installation: Slide the module into the designated slot of the Tricon chassis. Ensure the module is fully seated and the locking levers are engaged.
- Configuration: Use the TriStation 1131 software to define the input points as 48V AC or DC and set the appropriate filter times.
- Wiring: Connect the field signals via the External Termination Panel (ETP) associated with the 3704E module to ensure proper signal isolation.
- Verification: Observe the “PASS” LED on the front panel. A solid green light indicates the module has passed all internal diagnostics and is communicating with the main processors.
- Maintenance: Periodically check the system diagnostic logs for any reported “intermittent” faults on specific input points.
Recommended Similar Models
- TRICONEX 3700: 32-point TMR Digital Input Module (24V DC).
- TRICONEX 3703E: 125V AC/DC Digital Input Module.
- TRICONEX 3721: 32-point TMR Digital Input Module (24V DC, Common Ground).
- TRICONEX 3805E: TMR Analog Output Module.
- TRICONEX 3604E: TMR Digital Output Module (24V DC).
Product Manual & Documentation
For detailed wiring diagrams, termination panel options, and safety certifications:
Download TRICONEX 3704E MANUAL datasheet
