Description
Honeywell 05704-A-0121 is a relay interface module used to provide four independent relay output channels for industrial control, protection, and signaling applications. It is designed to be installed in a control system rack and to drive external loads such as alarms, indicators, and interlocks.
Product overview

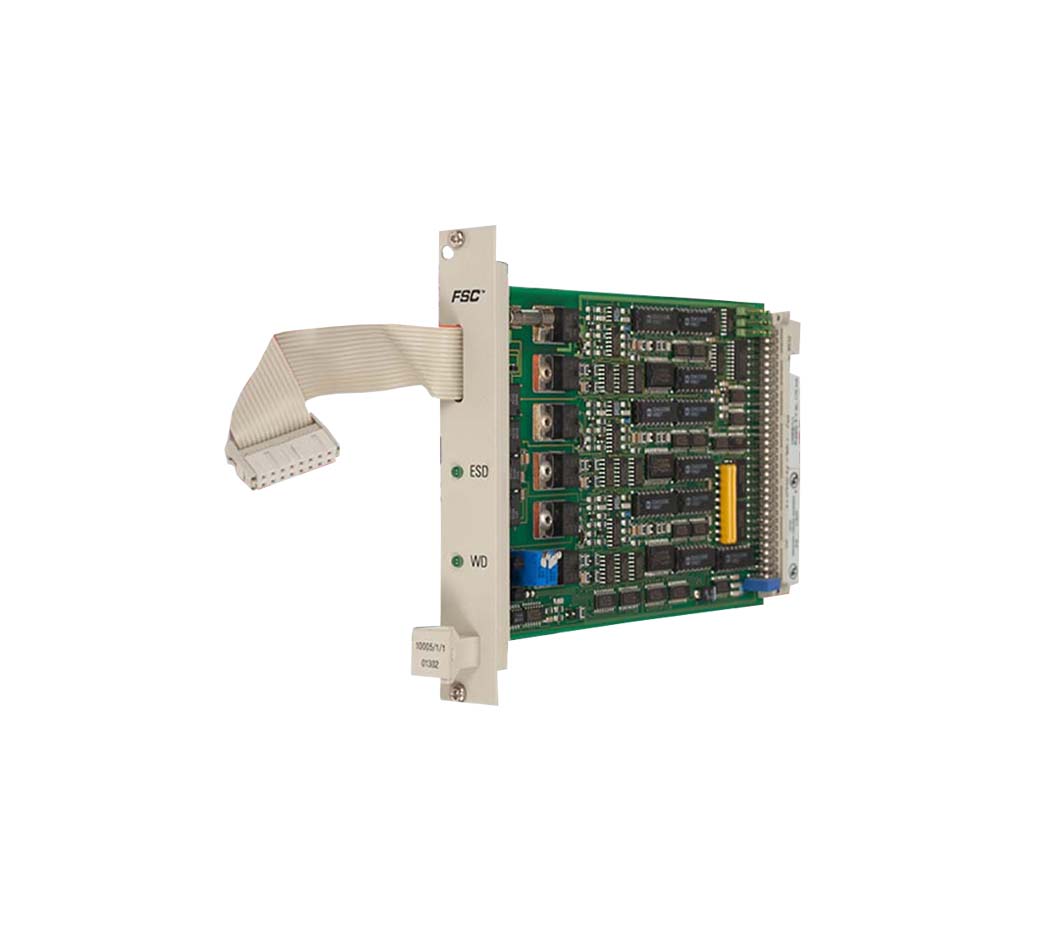

The 05704-A-0121 is a compact card‑type module that offers four electrically isolated relay outputs on a single board.
It is typically used as an output expansion or interface board between a control/monitoring system and field devices that require dry contacts or power switching.
- HONEYWELL 05704-A-0121
Main technical parameters
- Product type: Quad relay interface module (4 relay channels).
- Relay type: Single‑pole changeover (SPCO / SPDT / Form C) contacts for each channel.
- Number of channels: 4 independent, individually driven relay outputs.
- Typical contact rating: Suitable for switching low to moderate power loads such as signal lamps, buzzers, contactor coils, and small solenoids (AC or DC, within industrial low‑voltage ranges).
- Contact configuration: Each relay provides common (C), normally open (NO), and normally closed (NC) terminals.
- Power consumption: Low overall power demand suitable for dense rack installation.
- Isolation: Galvanic isolation between control circuitry and relay contacts to help protect the host system.
- Electrical connection: Screw‑type terminals for field wiring, sized for typical industrial control cables.
- Mounting: Plug‑in or rack‑mounted board for insertion into a matching backplane or card cage.
- Operating environment: Industrial temperature and humidity ranges, intended for control rooms or protected enclosures.
Datasheet-style summary
| Item | Description |
|---|---|
| Model | Honeywell 05704-A-0121 |
| Function | Quad relay interface module |
| Channels | 4 independent relay outputs |
| Relay contacts | SPCO / SPDT / Form C per channel |
| Terminals | C, NO, NC for each relay channel |
| Usage | Drives alarms, indicators, interlocks, valves |
| Installation | Rack / card cage mounting |
| Field wiring | Screw terminals for control cables |
| Isolation | Electrical isolation between logic and contacts |
Country of origin
This model is supplied as an industrial automation component from Honeywell’s global manufacturing network.
Actual country of origin can vary by production batch and should be confirmed on the product label or packing list if required for customs or project documentation.
Product technical notes
The use of single‑pole changeover contacts on every channel provides flexibility to implement both normally energized and normally de‑energized schemes without extra hardware.
By combining four isolated relays in a single compact board, the 05704-A-0121 helps reduce panel space and simplifies wiring from a control system to multiple field loads.
Manual / datasheet and link
For detailed installation drawings, terminal assignments, and exact electrical ratings, please refer to the official product manual and datasheet supplied with the goods or by your authorized Honeywell distributor.
You can also obtain related manuals and datasheets through the following link: www.newplcdcs.com.
