Description
- Product Parameters
- Model Number: 07KT98
- Order Number: GJR5253100R3160
- Series: Advant Controller 31 (AC31) / Advant OCS
- Processor Type: High-performance CPU with integrated I/O
- Memory: 1 MB Flash EPROM / 1 MB RAM
- Interfaces: * 2 x CS31 System Bus (Standard)
- 2 x Serial Interfaces (Modbus or ASCII)
- ARCNET Interface (for peer-to-peer communication)
- Digital Inputs: 24 x 24V DC
- Digital Outputs: 16 x 24V DC (0.5A Transistor)
- Analog Inputs: 8 x (Configurable for 0-10V, 0-20mA, or Pt100/Pt1000)
- Analog Outputs: 4 x (0-10V or 0-20mA)
Product Description The ABB 07KT98 GJR5253100R3160 is a powerful, decentralized control station belonging to the Advant Controller 31 series. This “all-in-one” PLC module combines a high-speed central processing unit with a comprehensive array of onboard digital and analog I/O, making it a highly efficient solution for complex automation tasks. The 07KT98 is designed for both standalone operation and integration into larger networks via the CS31 system bus or ARCNET. Its robust hardware architecture and extensive memory capacity allow it to handle demanding logic, closed-loop control, and data processing requirements in real-time industrial environments.

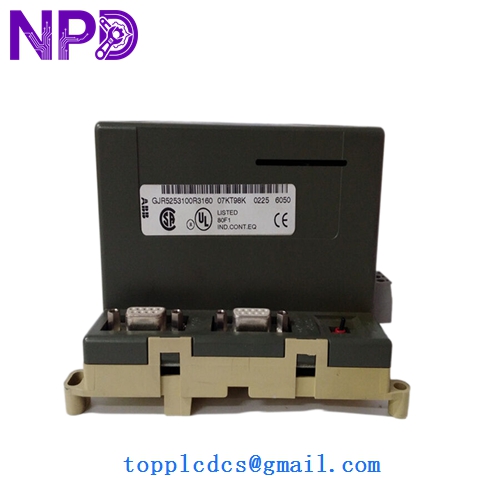

ABB 07KT98 GJR5253100R3160

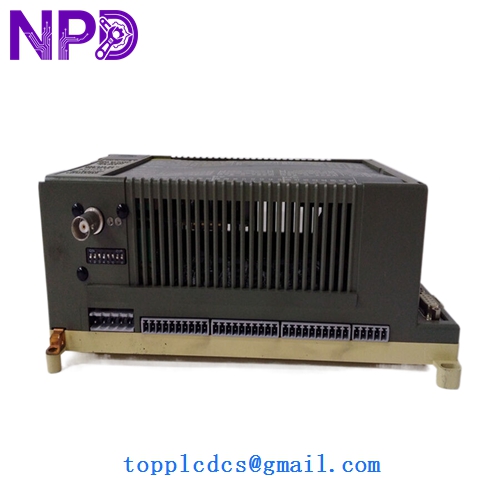

ABB 07KT98 GJR5253100R3160
ABB 07KT98 GJR5253100R3160
-
Application Areas This module is widely utilized in factory automation, infrastructure projects, and maritime applications. It is particularly effective for controlling complex machine tools, water treatment sequences, and energy distribution systems where localized intelligence and decentralized I/O processing are required to reduce wiring costs and improve system response times.
Product Specifications
- Weight: 1.20 kg
- Dimensions: 140 mm x 200 mm x 85 mm
- Country of Origin: Germany
- Supply Voltage: 24V DC (19.2V to 30V range)
- Mounting: DIN rail or screw mounting
Operational Precautions
- Programming Cable: Use only the authorized ABB 07SK90 or 07SK91 serial cables for programming; non-standard pinouts can damage the serial communication ports.
- I/O Configuration: Ensure that the analog input jumpers or software parameters are correctly set to match the sensor type (Voltage vs. Current) before applying power to the field terminals.
- Battery Replacement: The internal RAM and real-time clock are backed by a lithium battery. Replace the battery only while the unit is powered to prevent loss of volatile data and configuration settings.
- Bus Termination: When utilizing the CS31 system bus, ensure that the termination resistors are correctly engaged at the first and last nodes of the network to prevent signal reflections.
Recommended Similar Product Models
Model Number Product Category Feature Set 07KT97 Control Processor Lower memory capacity variant 07KR91 Control Processor Compact AC31 Series PLC 07KT94 Control Processor Standard Performance CPU 07MK92 Communication Module ARCNET Interface Expansion 07AI91 Analog Input 8-Channel Expansion Module
