Description

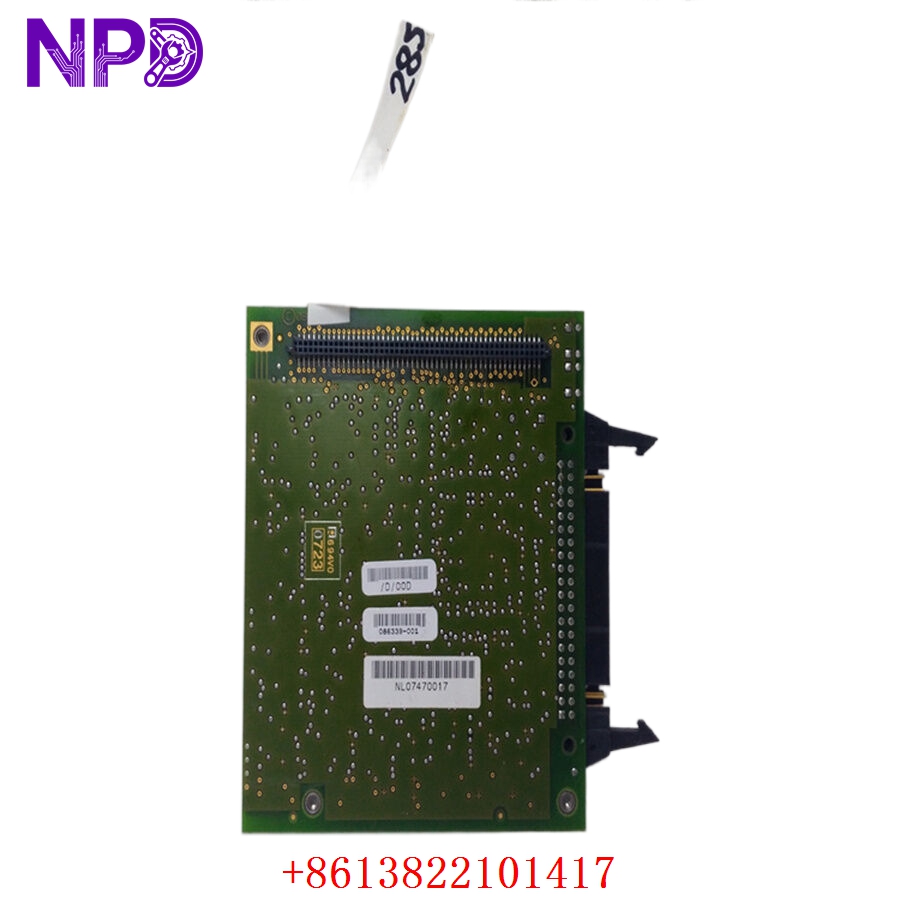

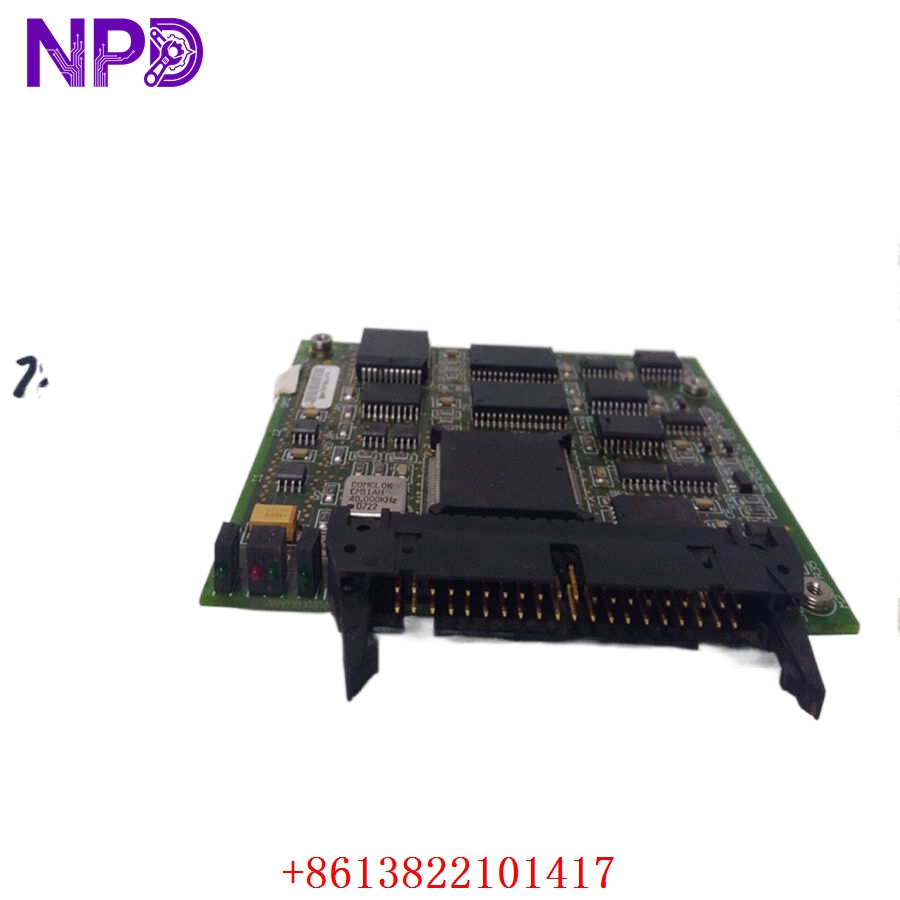

The ABB 086339-001 004707001474 is a specialized circuit board assembly designed for high-performance industrial control and power management systems. This 086339-001 004707001474 component functions as a critical interface within the ABB automation ecosystem, providing precise signal regulation and logic processing for heavy-duty motor drives or power conversion units. Built with high-grade industrial laminates and surface-mount technology, it is engineered to withstand the thermal stress and electrical noise common in refinery, mining, and large-scale manufacturing environments.
Technical Specifications
- Model Number: 086339-001
- Part Number: 004707001474
- Component Type: Printed Circuit Board (PCB) / Interface Assembly
- Input Requirements: Logic-level DC voltages (System dependent)
- Mounting: Multi-point screw-down or stand-off mounting
- Interface: Multi-pin ribbon cable or header connectors
- Surface Finish: Lead-free or conformal coating for corrosion resistance
- Application: Industrial Drive Systems / PLC Interface
- Weight: Approx. 0.30 kg This assembly serves as the backbone for localized signal conditioning, ensuring that low-voltage control signals are accurately translated into mechanical or power-level actions while providing feedback loops that the central controller uses for real-time system adjustments.
ABB 086339-001 004707001474
ABB 086339-001 004707001474
ABB 086339-001 004707001474
Model Comparison
The ABB 086339-001 004707001474 is often distinguished by its specific 004707001474 sub-assembly number, which denotes a specific hardware revision or firmware pre-load compared to the standard 086339-001 base board. Unlike general-purpose I/O boards, this variant is typically hardware-mapped for specific ABB drive families or specialized power electronics, offering higher clock speeds or more robust surge protection than the generic 0863 series predecessors.
Operational Tips
- Revision Matching: Always confirm both the 086339-001 and the 004707001474 numbers when replacing boards, as slight variations in the secondary part number can indicate different voltage tolerances or jumper configurations.
- Handling Precautions: This board contains sensitive CMOS components; utilize an grounded ESD mat and wrist strap during installation to prevent latent electrostatic damage.
- Connector Inspection: Before powering the system, inspect all multi-pin headers for bent pins or debris, as the high-density interconnects on this model are vital for stable data transmission.
- Firmware Synchronization: After physical installation, verify if the board requires a “Flash” update or parameter synchronization via the ABB software tool to match the current system configuration.
