Description
- Model: ABB 086351-004
- Brand: ABB (Asea Brown Boveri)
- Series: Legacy Power Electronics / Rectifier Series
- Core Function: High-voltage interface and gate driver synchronization
- Product Type: Power Electronic Control Board
- Key Specs: Multi-rail voltage monitoring Pulse-width modulation (PWM) interface
- Operating Voltage: 24 V DC internal logic (supplied from power backplane)
- Gate Drive Output: High-speed switching signals for SCR/IGBT modules
- Isolation: High-dielectric isolation between control and power circuits
- Connector Type: High-density multi-pin header (Gold-plated for reliability)
- Monitoring: Real-time feedback for over-current and thermal trips
- Mounting: Card-guide rack mount or chassis screw-down
- PCB Finish: Industrial-grade green/blue solder mask with conformal coating
- Dimensions: Standard 160 mm x 100 mm (Eurocard format compatible)

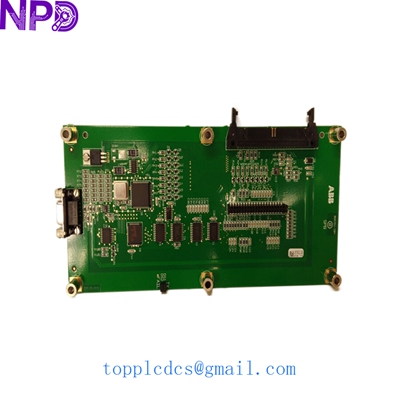

ABB 086351-004
Application Scenarios & Pain Points
The 086351-004 is a specialized board often found in ABB’s high-power rectifier or excitation systems. In my experience, these boards are the “nervous system” of large power converters. They take the low-voltage logic from a PLC and translate it into the high-energy pulses required to trigger power thyristors or transistors. Because they live near high-current equipment, they are subject to extreme electrical noise and heat. When a capacitor on this board dries out or a trace degrades, the whole power bridge can fail, potentially damaging the expensive power modules it controls.
Typical Application Scenarios:
- Large Motor Starters: Managing the soft-start sequence for multi-megawatt motors in water pumping stations.
- Electrolysis Plants: Precision current control for aluminum or chemical processing.
- Power Grid Stability: Used in excitation systems for synchronous condensers or generators.
- Heavy Traction: Controlling power conversion in marine or rail propulsion systems.
Case Study: The Silent Generator
Background: A hydroelectric plant in Southeast Asia was using an ABB excitation system for one of its 50 MW generators. The control heart was an 086351-004 board.
The Problem: The generator began tripping intermittently on “Excitation Under-voltage.” The site team checked the main power cables and the transformer, but everything seemed fine. The issue was getting worse—from once a week to three times a day.
The Solution: We were contacted to provide a replacement 086351-004. Before shipping, we put the board through a 48-hour “heat-soak” test in our environmental chamber to simulate the humid generator room conditions.
The Result: After swapping the board, the trips stopped completely. Analysis of the old board showed a failing opto-isolator that was losing its switching speed as it warmed up. By having a tested spare ready, the plant avoided a catastrophic breakdown of the generator’s field winding.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Effort Level |
| 086351-004 | 086351-004 Rev. B/C | ✅ Direct Replace | Improved noise filtering components | Zero (Drop-in) |
| 086351-004 | 086351-001 | ❌ Incompatible | Different voltage scaling resistors | High (Do not swap) |
| 086351-004 | P-DFA Series | ⚠️ Software Compatible | Requires adapter and firmware update | High (Consult support) |
SOP & Quality Transparency
Power boards require more than just a “power-on” test. A failure here can be explosive. Here is how we ensure your 086351-004 is safe:
- Visual X-Ray (Optional/Requested): For high-power boards, we check for internal layer delamination which can happen in older boards kept in humid storage.
- Capacitor ESR Testing: We use an ESR (Equivalent Series Resistance) meter to check every electrolytic capacitor. If a cap is outside of 10% of its factory spec, we don’t sell the board.
- PWM Pulse Validation: We use a Rigol digital oscilloscope to capture the output pulse train. We look for “ringing” or signal noise that could cause misfiring in your power modules.
- Isolation Hi-Pot Test: We perform a 1,000 V DC isolation test between the control pins and the chassis ground to ensure no internal shorts exist.
- Trace Integrity: We verify the integrity of the high-current traces using a 4-wire Kelvin resistance measurement.

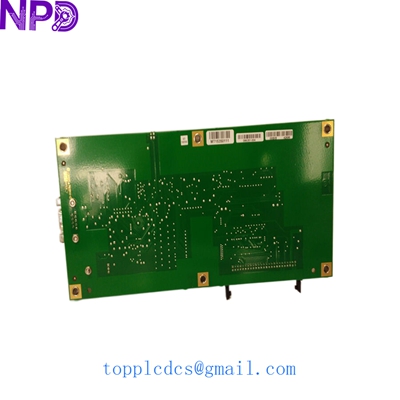

ABB 086351-004
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relation to 086351-004 | Quick Check |
| Misfiring / Rough Operation | Opto-isolator Lag | ✅ High | Check the pulse rise-time with an oscilloscope. |
| “Over-current” Trip (False) | Feedback Resistor Drift | ✅ High | Measure resistance of the R-sense network on the board. |
| Board Unresponsive | Regulator Failure | ⚠️ Medium | Check for 5V and 12V test points on the PCB surface. |
| Intermittent Shutdowns | Cold Solder Joint | ✅ High | Gently tap the board with a plastic tool while running (carefully!). |
Integrator’s Warning: ❗ Check your snubber circuits. In my experience, if an 086351-004 fails suddenly, it’s often because an external snubber capacitor or resistor has failed, allowing a voltage spike to travel back into the board. Always check your external components before installing a new board!
ABB 086351-004
