Description

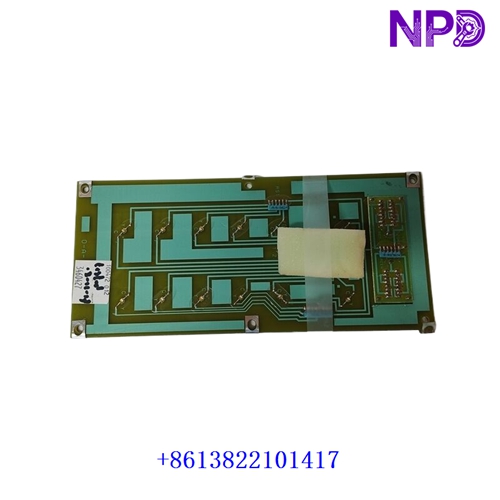

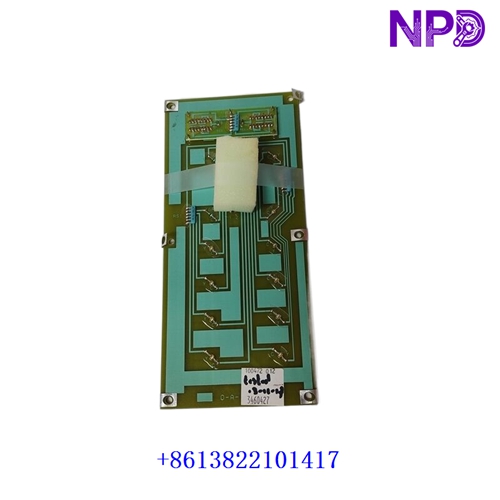

The ABB 100472-012 is a specialized operator interface component (commonly categorized as an operator control panel, keypad, or interface circuit board) designed for industrial automation systems, human-machine interfaces (HMI), and machine control hardware. It provides reliable operator input functionality and signal routing for monitoring and managing system processes.
- Manufacturer: ABB / ASEA Brown Boveri
- Part Number: 100472-012 (100472012)
- Product Type: Operator Control Panel / Keypad / Interface Circuit Board
- Manufacturing Status: Discontinued / Industrial Replacement Part
- Physical Interface Connections:
- 9-pin connector port
- 25-pin ribbon cable connector interface
- Approximate Dimensions: 10 inches × 4.5 inches (approx. 25.5 cm × 12 cm)
- Approximate Weight: 0.2 kg (0.44 lbs)
Inspection & Installation Guidelines
- Packaging Check: Unpack the unit carefully on an ESD-safe surface and verify that anti-static shielding and transit protection are intact.
- Part Verification: Confirm that part number 100472-012 matches your legacy hardware inventory and operator panel schematics.
- Visual Inspection: Check the circuit board traces, keypads, and connector pins (including the 9-pin and 25-pin ports) for any debris, corrosion, or physical wear.
- Secure Connection: Align ribbon cables and connectors carefully without applying excessive bending force to ensure proper pin seating before fastening housing enclosures.
Maintenance Recommendations
- Dust Control: Keep enclosure panels and operator stations free of dust and particulate buildup using dry, oil-free compressed air during scheduled maintenance windows.
- Cable & Connector Audit: Periodically inspect ribbon cables and pluggable connectors to ensure firm seating and prevent vibration-induced signal loss.
- Environmental Control: Ensure that control room or panel operating temperatures and humidity remain within safe industrial electronics thresholds.
- Functional Testing: Regularly verify tactile response and signal communication across the interface keys during routine operational checks.
Troubleshooting & Common Faults
- Unresponsive Keypad / Panel: Check the 25-pin ribbon cable and 9-pin communication connectors to ensure they are securely plugged in and free of oxidation.
- Intermittent Input Signals: Inspect ribbon cable integrity for micro-fractures or loose pins caused by continuous panel vibration.
- Power / Communication Drop: Verify that upstream interface modules or display controllers supplying power and data signals to the unit are operating normally.
Safety & Handling Precautions
- Power Isolation: Always disconnect system power and lock out the control station before servicing, removing, or replacing operator interface hardware.
- Qualified Personnel: Hardware installation and internal wiring must be performed exclusively by certified automation technicians or qualified maintenance engineers.
- ESD Protection: Always wear a properly grounded wrist strap when handling the bare circuit board or exposed connector pins to prevent electrostatic discharge damage.
Frequently Asked Questions (Q&A)
- Q: What is the primary function of the ABB 100472-012?
- A: It serves as an operator control panel or interface keypad assembly, enabling users to input commands and monitor system statuses on legacy industrial setups.
- Q: What physical connection ports does this unit utilize?
- A: It typically features a 9-pin connector and a 25-pin ribbon cable connector interface for internal communication and signal routing.
