Description
The ABB 1TGE120021R0010 is a critical Phase Control Unit (PCU) designed for the ABB ACS 6000 series of high-power medium voltage drives, serving as the essential interface for controlling and firing the power semiconductors within a specific phase module.
Product Parameters (Datasheet)
- Model Number: 1TGE120021R0010
- Component Type: PCU (Phase Control Unit)
- System Compatibility: ABB ACS 6000 Medium Voltage Drive
- Logic Voltage: 24V DC (Internal system bus supplied)
- Fiber Optic Interface: Integrated optical ports for high-speed, noise-immune communication with the AC 800PEC controller
- Gate Drive Outputs: Multi-channel outputs for triggering IGCT (Integrated Gate-Commutated Thyristor) modules
- Diagnostics: Integrated monitoring for phase temperature, gate status, and DC link voltage
- Protection Class: IP00 (Designed for integration within a screened cabinet)
- Cooling: Natural convection or forced air within the drive enclosure
Country of Origin
This high-precision power electronics module is engineered and manufactured in Switzerland by ABB Power Grids / ABB Drives, adhering to stringent global utility standards.

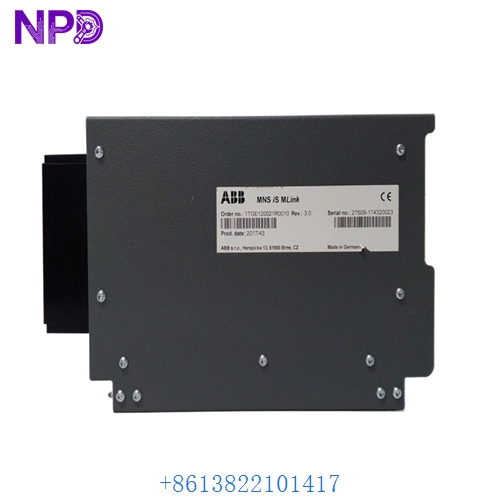

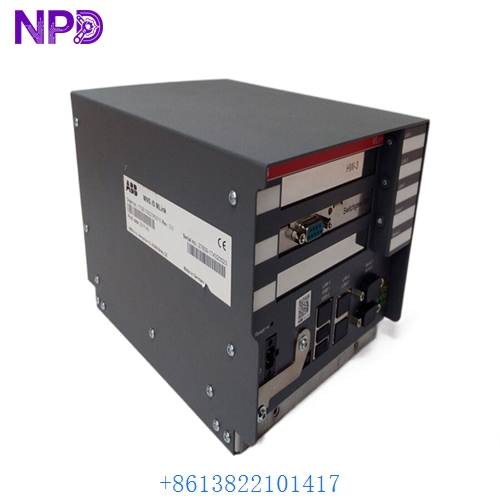

ABB 1TGE120021R0010
ABB 1TGE120021R0010
ABB 1TGE120021R0010
Application Fields
The 1TGE120021R0010 is a specialized part used exclusively in large-scale power conversion systems:
- Metal Industry: Controlling motor speeds for massive rolling mills and blast furnace fans.
- Mining & Minerals: Managing power for large conveyors, grinders, and crushers.
- Marine Propulsion: Integrated into the electric propulsion drives of cruise ships and LNG carriers.
- Oil & Gas: Controlling large compressors and pumps in pipeline stations.
- Water Management: High-power drive control for regional water distribution pumps.
Product Usage Instructions
- Chassis Mounting: The PCU must be mounted securely on the dedicated mounting plate within the phase module of the ACS 6000.
- Fiber Optic Connections: Ensure the fiber optic cables are clean and properly seated in the optical ports. These provide the galvanic isolation necessary between the high-voltage phase and the low-voltage control unit.
- Gate Lead Routing: Route the gate leads to the IGCT modules carefully, ensuring they are kept away from high-current busbars to prevent electromagnetic interference (EMI).
- Electrostatic Safety: This unit contains extremely sensitive components. Use full ESD protection (wrist straps and grounded mats) when handling the board.
- Initialization: Upon power-up, the AC 800PEC master controller will perform a handshake with the PCU to verify firmware compatibility and gate circuit integrity.
Product Technical Description
Technically, the 1TGE120021R0010 acts as the localized “brain” for a single phase of the inverter. It receives complex pulse-width modulation (PWM) commands from the central drive controller via fiber optics and translates them into precise electrical pulses to fire the IGCTs. It also performs high-speed local monitoring; if a fault is detected within its phase (such as a gate failure or overcurrent), the PCU can autonomously initiate a fast-stop to protect the expensive power semiconductor stack from catastrophic damage.
Q&A (Common Questions)
Q: Can this unit be used in an ACS 5000 drive? A: No, the 1TGE120021R0010 is specifically designed for the ACS 6000 architecture. Using it in different drive families may cause hardware mismatch and system failure.
Q: What is the significance of the “R0010” suffix? A: This suffix denotes the specific hardware revision and feature set. It is critical to match this suffix exactly when replacing units to ensure timing and diagnostic compatibility.
Q: Do the optical ports require specialized cleaning? A: Yes, use specialized fiber optic cleaning tools to ensure there is no dust or oil on the terminals, as signal attenuation can cause intermittent drive tripping.
Q: Is there any onboard firmware that needs manual flashing? A: Firmware is typically managed and downloaded by the central AC 800PEC controller during system initialization, but version compatibility must be verified during installation.
Similar Model Recommendations
- ABB 1TGE120021R0001 (Earlier revision of the PCU)
- ABB 1TGE102010 (Control interface for power modules)
- ABB 3BHE022293R0101 (GUSP Gate Unit Supply Board)
- ABB 3BHE014231R0001 (ACS 6000 Master Controller Card)
- ABB 1TGE120021R0020 (Later hardware revision)
For technical assistance or inventory availability for the ABB 1TGE120021R0010 and other ACS 6000 spare parts, please contact our support team.
