Description
- The ABB 216AB61 HESG324013R0100 is a specialized power supply and interface module integrated into the ABB Advant and Procontic control systems. Engineered for high-precision industrial automation, this 216AB61 HESG324013R0100 unit ensures a stabilized voltage distribution and robust signal isolation between the controller and external peripherals. Its design prioritizes long-term reliability in harsh electromagnetic environments, making it a staple in power plant and substation automation where consistent logic execution is non-negotiable.
Technical Specifications
- Model Number: 216AB61
- Product ID: HESG324013R0100 / HESG435572P1
- Module Type: Power Supply / Connection Unit
- Input Voltage: 24V DC / 48V DC (depending on rack configuration)
- Output Stability: Low ripple, high-precision regulated output
- Isolation Voltage: Up to 500V DC between internal and external circuits
- Cooling: Natural convection
- Housing: Compact metal-cased for heat dissipation
- Installation: Subrack mounting within standard ABB control cabinets This module acts as a critical bridge within the system architecture, facilitating high-speed data flow and power management while incorporating advanced internal filtration to protect sensitive electronic components from voltage spikes.

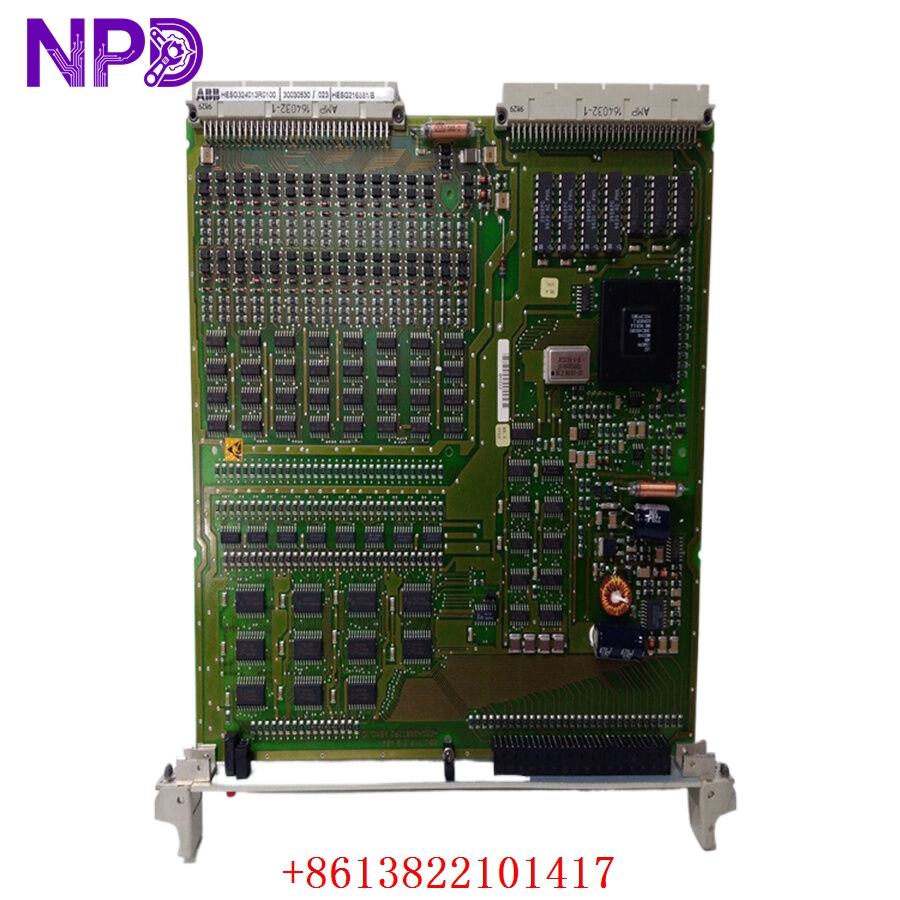

ABB 216AB61 HESG324013R0100 HESG435572P1

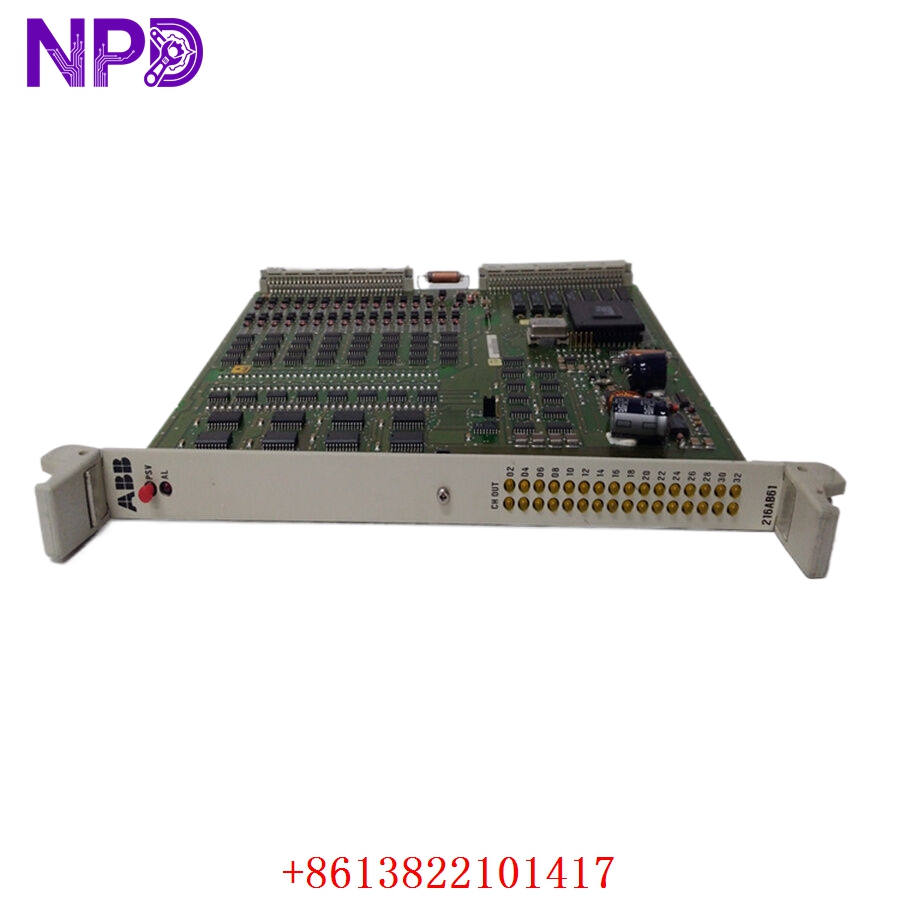

ABB 216AB61 HESG324013R0100 HESG435572P1

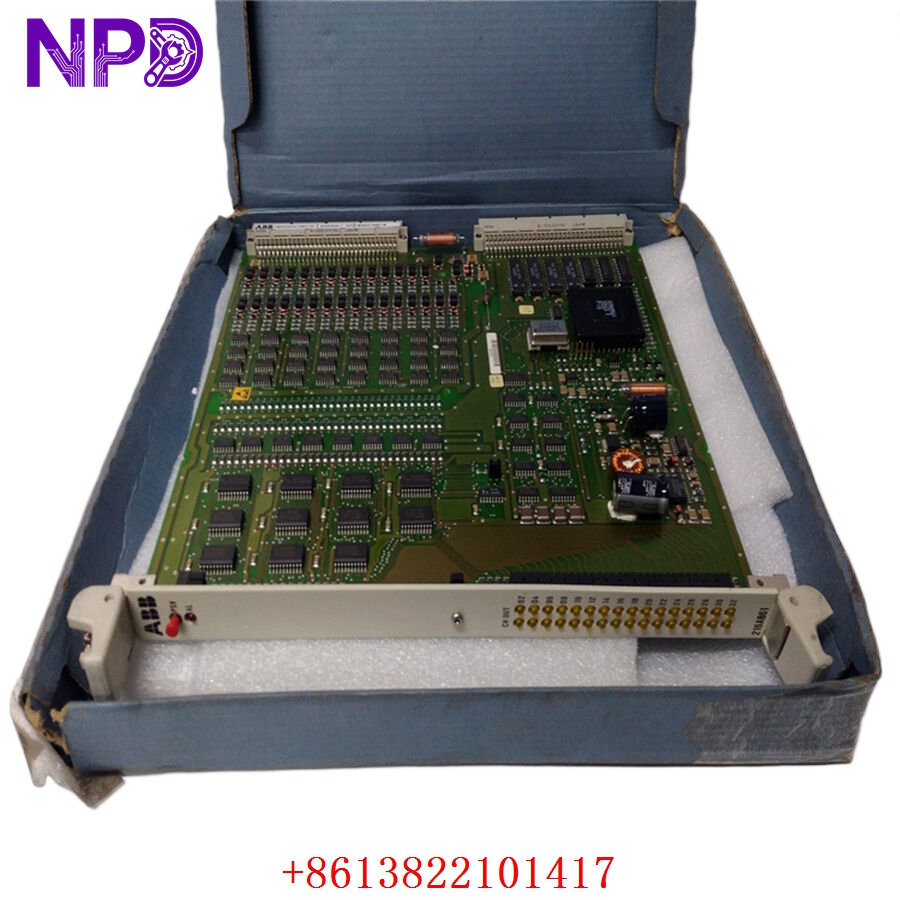

ABB 216AB61 HESG324013R0100 HESG435572P1
Model Comparison
The 216AB61 HESG324013R0100 differs from the standard 216EA or 216VC series by its specific focus on high-voltage isolation and power conditioning rather than pure processing or communication. Compared to the older HESG324013R0001 revision, the R0100 version features updated circuit protection layouts and improved terminal durability (P1 specification), allowing for more secure wire connections in high-vibration industrial settings.
Operational Tips
- Voltage Verification: Before installation, verify that the input voltage matches the specific HESG324013R0100 requirements, as variations in subrack power can lead to undervoltage errors.
- Ventilation Clearance: Ensure that at least 20mm of clearance is maintained above and below the module to allow for proper airflow and prevent thermal throttling.
- Terminal Torque: Use a calibrated screwdriver to tighten the HESG435572P1 terminals to the manufacturer-specified torque; overtightening can damage the internal PCB traces.
- Redundancy Check: In systems utilizing redundant power supplies, ensure the “Ready” contact is properly wired to the monitoring unit to receive immediate alerts if the module fails.
