Description
- Model: ABB 216DB61 (Full Part No: HESG324063R100J)
- Brand: ABB (Switzerland)
- Series: Advant Controller / Procontrol P13/14 Series
- Core Function: Logic and Analog Signal Processing Module
- Product Type: Controller/Logic Module
- Key Specs: 24 VDC Supply Multi-channel Analog/Digital Bus-Interface Capability

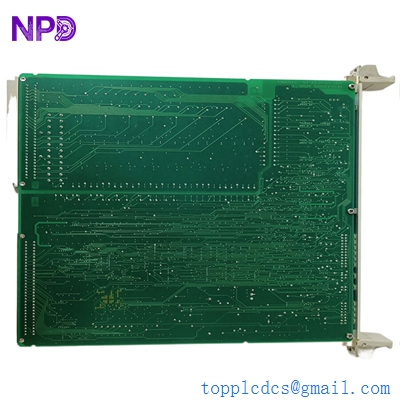

ABB 216DB61 HESG324063R100J
Key Technical Specifications
- Power Supply: +24 VDC (Typical range 18-30 V)
- Architecture: Microprocessor-based logic processing
- Inputs: Integrated analog and digital input channels (Configurable)
- Outputs: High-speed digital and analog output capability
- Communication Interface: Standard ABB internal bus (P13/P14 compatible)
- Diagnostic Display: Front panel LED status indicators (Run/Fault/I/O)
- Connector Type: Eurocard format (96-pin DIN 41612)
- Isolation: Galvanic isolation between field signals and internal logic
- Operating Temperature: 0 °C to +55 °C
ABB 216DB61 HESG324063R100J
Application Scenarios & Pain Points
The 216DB61 is a critical piece of the puzzle in ABB Advant or Procontrol systems, often found in the heart of large-scale power generation or heavy industrial process lines. Because these boards manage both logic and analog signals simultaneously, they act as a local “brain” for specific machine sections. If this board fails, you don’t just lose an I/O point—you likely lose the entire PID loop or sequencing logic for a turbine auxiliary or a boiler feed pump.
Typical Application Scenarios:
- Power Plant Turbine Control Used in the Procontrol P13/14 racks to manage governor logic and steam valve positioning where millisecond response times are non-negotiable.
- Boiler Control Systems Handling complex analog loops for fuel-to-air ratios and water level maintenance in utility-scale boilers.
- Substation Automation Acting as a logic solver for interlocking and protection schemes in high-voltage switchgear environments.
- Metals & Mining (DCS) Integrated into Distributed Control Systems (DCS) for synchronous motor control and heavy conveyor synchronization.
Case Study: The “Intermittent Watchdog” Reset
Background: A thermal power plant in Eastern Europe reported that their cooling water sequence would randomly reset. There were no hard “Fault” lights, but the logic would just “jump” back to the start.
The Problem: After pulling the 216DB61 HESG324063R100J, we found that the internal 5V voltage regulator on the board was beginning to oscillate due to aging electrolytic capacitors. This caused the microprocessor to perform a “warm restart” without ever triggering a permanent red “FAIL” LED.
The Solution: We supplied a fully refurbished and tested 216DB61. We also advised the client to check the rack’s power supply ripple, as a noisy 24V bus was accelerating the wear on these older logic boards.
Result: The sequence became stable, and the plant avoided a potential $50,000 “tripped unit” scenario during peak winter load.
ABB 216DB61 HESG324063R100J
Similar Product Recommendations
ABB’s numbering system for the 216 series can be tricky. The “HESG” number is your “Source of Truth” for hardware compatibility.
| Model Number | Compatibility | Main Difference | Integration Note |
| 216DB61 HESG324063R1 | ✅ Direct | Base version of the same hardware | Fully interchangeable with R100J. |
| 216DB62 | ❌ Incompatible | Different I/O count/Memory | Requires software/configuration changes. |
| 216VC61 | ⚠️ Related | Communication version | Often used alongside the DB61 in the same rack. |
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Action |
| “RUN” LED Off | Power/Firmware Error | ✅ High | Check 24V supply at the backplane pins; Reseat module. |
| “FAULT” LED Solid Red | Processor Crash | ✅ High | Attempt a hardware reset; if it stays red, internal ROM/RAM is dead. |
| I/O Errors (Software) | Bus Address Conflict | ⚠️ Medium | Verify the DIP switch settings on the side of the board match the old unit. |
| Analog Signals Drifting | Calibration Decay | ⚠️ Medium | Clean the 96-pin connector with contact cleaner; check field grounding. |
Technical SOP & Quality Guarantee
The 216DB61 is a complex board with multiple layers. Our quality process ensures it doesn’t just “power up” but actually “thinks” correctly:
- Backplane Communication Test: We mount the board in a Procontrol P13 test rack and verify it can communicate with a central bus master without timeout errors.
- Analog Precision Check: We inject 4-20mA signals into the inputs and verify the digital representation in the diagnostic buffer is within 0.1% accuracy.
- Burn-in Test: Every board is run for 24 hours at 50 °C in our environmental chamber to weed out “infant mortality” issues in the electronic components.
- Pin Integrity: We use a high-resolution microscope to check the 96-pin DIN connector for any “pushed back” or bent pins that could cause intermittent contact.
A “Trap” to avoid: Honestly, the most common mistake with these modules is the “Address Jumpers.” ABB uses a specific set of jumpers or DIP switches to define where this board lives in the software map. Take a high-res photo of the side of your old board before you send it for repair or swap it out. If those jumpers don’t match, your DCS will think the module has vanished.
