Description
-
Product Core Brief
- Model: 216EA61b (Sub-components: HESG324015R1, KHESG324258R3I, HESG448230R1)
- Brand: ABB (Switzerland)
- Series: Advant Controller / Procontrol P14
- Core Function: Central processing and communication interface for industrial automation
- Type: Main Processor / Controller Board
- Key Specs: High-speed system bus Multi-layer PCB design Rack-mount form factor
-
Key Technical Specifications
- Input Voltage: +5 V DC / +24 V DC (via backplane)
- Processor Architecture: High-performance microprocessor optimized for real-time control
- Memory Interface: Onboard RAM and EPROM for firmware/application storage
- Communication Protocol: Proprietary ABB System Bus / AF 100 compatible
- Sub-Assembly 1: HESG324015R1 (Base board hardware)
- Sub-Assembly 2: KHESG324258R3I (Specific revision/component set)
- Sub-Assembly 3: HESG448230R1 (Logic/Firmware specific assembly)
- Module Width: Standard 6U Rack Slot
- Diagnostic Indicators: Front-facing LEDs for System Run, Halt, and Bus Error
- Environmental Rating: 0°C to +55°C Operating Temperature

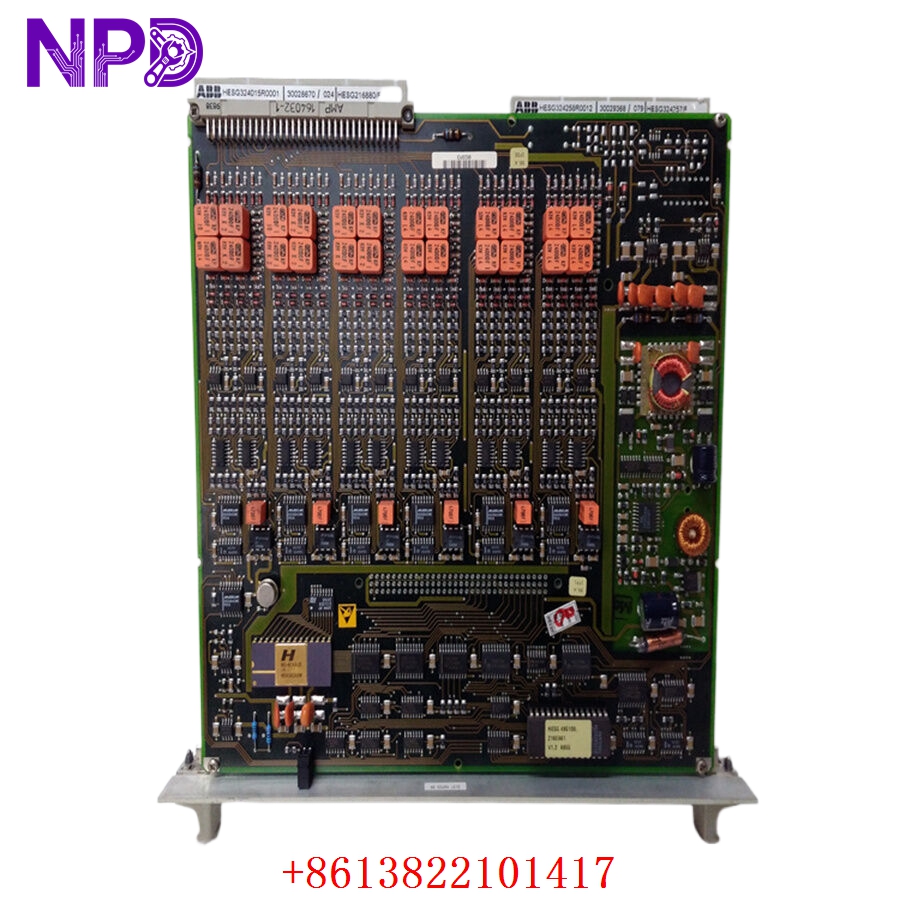

ABB 216EA61b HESG324015R1 KHESG324258R3I HESG448230R1

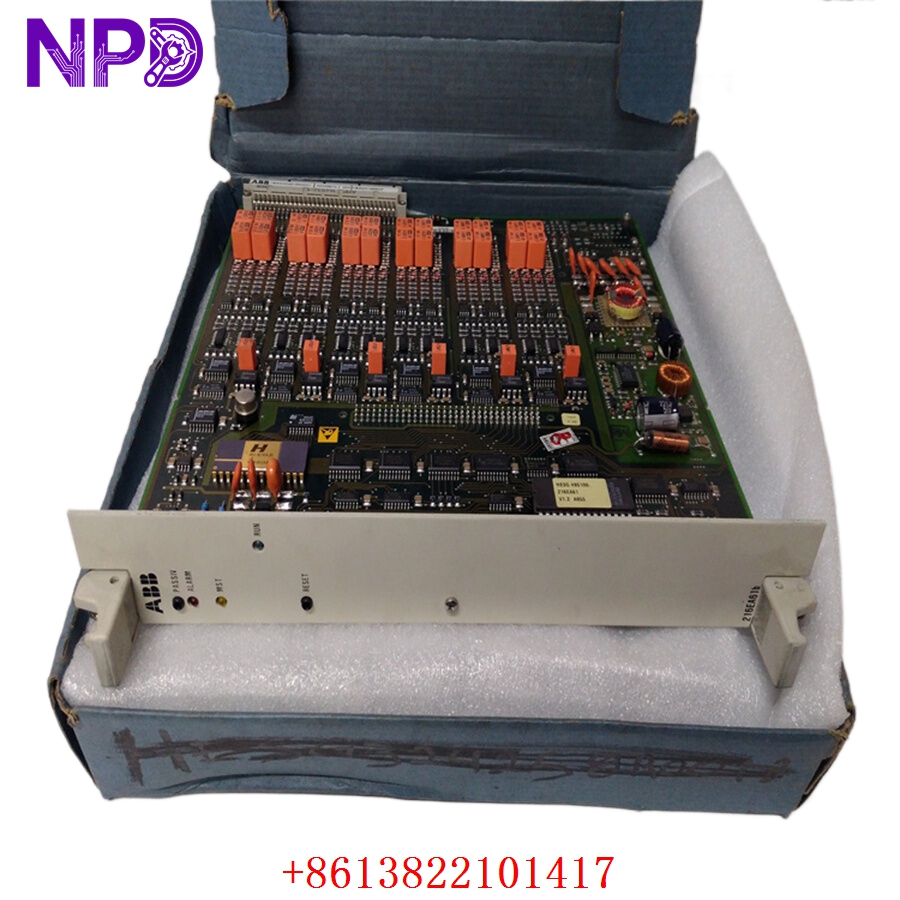

ABB 216EA61b HESG324015R1 KHESG324258R3I HESG448230R1

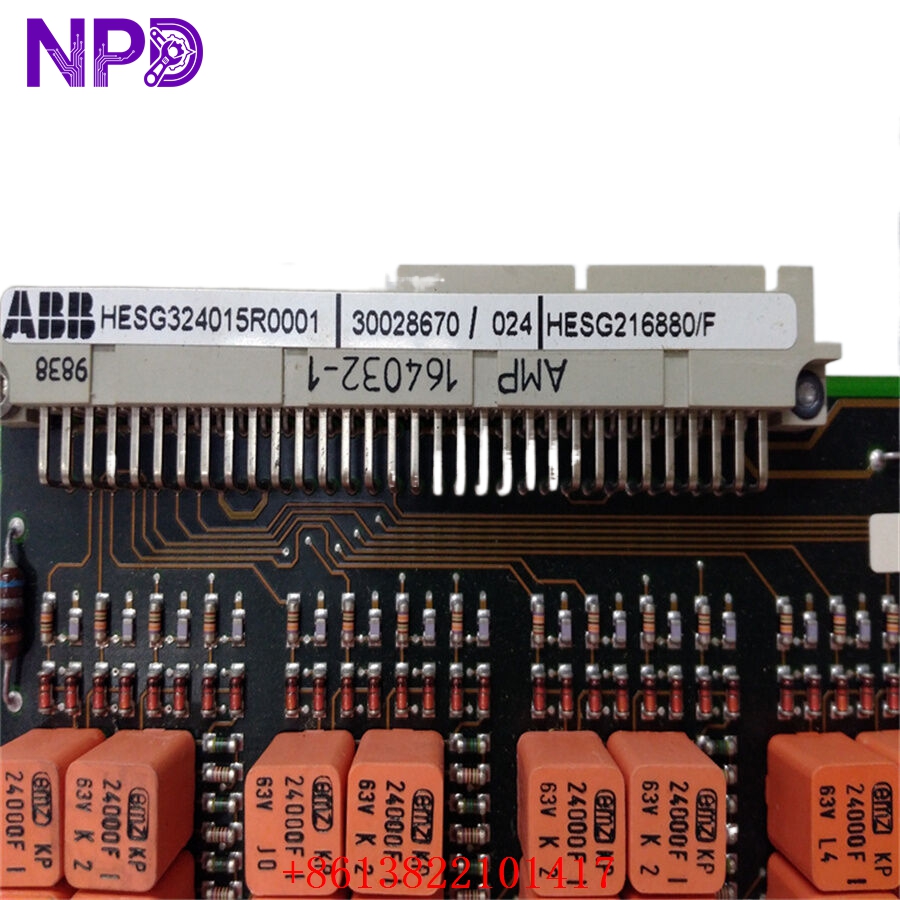

ABB 216EA61b HESG324015R1 KHESG324258R3I HESG448230R1

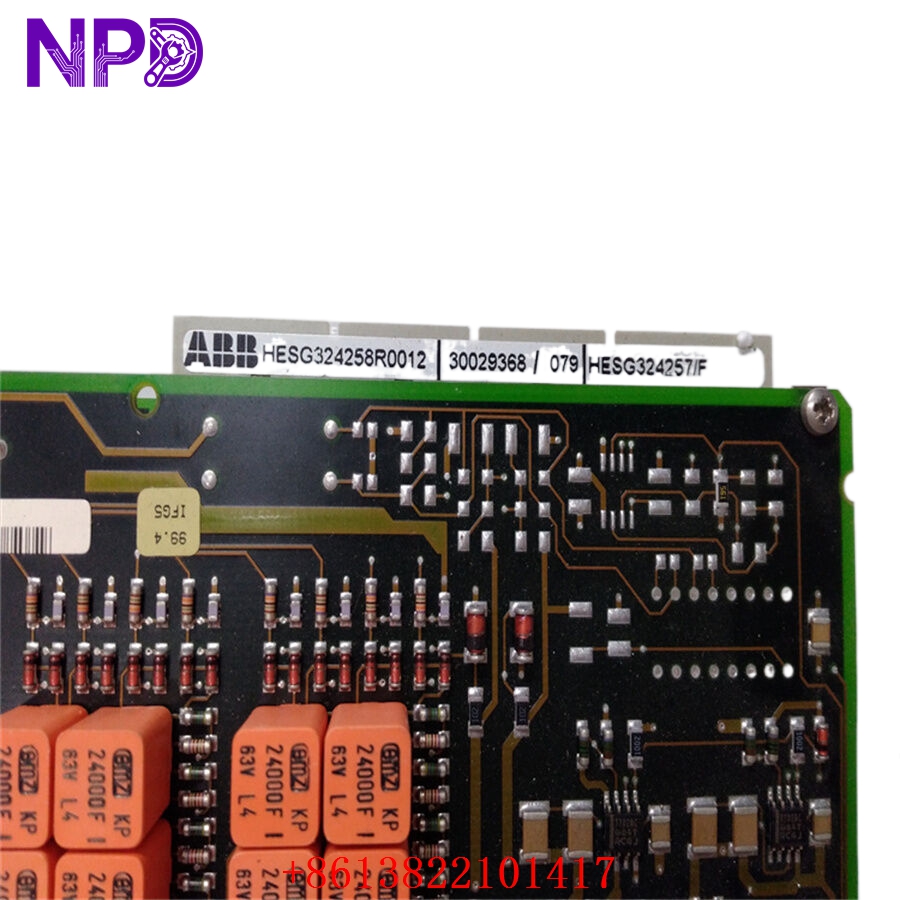

ABB 216EA61b HESG324015R1 KHESG324258R3I HESG448230R1
Installation & Configuration Guide
Phase 1: Pre-Installation (Estimated time: 20 minutes)
⚠️ Critical Warning: The 216EA61b is a complex multi-part module. Static electricity is its worst enemy. Ensure you are working on an ESD-safe surface.
Preparation:
- Perform a full backup of the controller configuration using Advant Station or equivalent engineering software.
- Confirm the hardware revision of the new unit matches the old one. These long HESG numbers are specific—ensure the suffix (e.g., R1, R3I) is identical to avoid firmware mismatch.
Phase 2: Removal (Estimated time: 10 minutes)
- Power Down: This module is not hot-swappable. Power down the entire subrack.
- Cable Mapping: If there are front-facing communication cables (AUI or Serial), label them before disconnecting.
- Extraction: Use a small flat-head screwdriver to release the locking screws. Pull the card out slowly, keeping it level to avoid scraping the adjacent modules.
Phase 3: Configuration (Estimated time: 15 minutes)
- Firmware Check: Look at the HESG448230R1 component. If there are socketed EPROMs, verify the labels match your original card.
- Jumper Synchronization: In my experience, these boards often have small surface-mount jumpers or DIP switches on the inner layers of the PCB stack. Compare the “KHESG” board settings between the two units and replicate them exactly.
- Address Settings: Ensure the station ID or bus address is correctly set on the new module.
Phase 4: Commissioning (Estimated time: 30 minutes)
- Seating: Slide the board into the rack. It should seat firmly into the backplane. Do not force it—if you feel resistance, check for bent pins.
- Cold Start: Power on the subrack. Watch the LED sequence. If the “Halt” light stays on for more than 60 seconds, there is a configuration error.
- Reloading: Connect your engineering tool and download the application software to the new 216EA61b.
- Verification: Test the communication link with I/O stations and ensure the watchdog timer is active.
Customer Cases & Industry Applications
Case 1: Power Grid Frequency Control Stability
Situation: A regional power dispatch center in Eastern Europe utilized an ABB Advant system to manage frequency regulation. The main processing unit (216EA61b) failed after 15 years of continuous service. Task: Without the controller, the automated load-shedding protocols were offline, forcing manual intervention. The OEM lead time was quoted at over 20 weeks due to the “Classic” status of the hardware. Action: The utility provider sourced a New Surplus unit from us. We provided detailed photos of the HESG324015R1 and HESG448230R1 labels to ensure 100% compatibility before shipping. Result: The module was delivered and installed within 72 hours. The system passed all redundancy tests on the first try, saving the utility from potential grid instability fines.
Case 2: Metal Refinery Continuous Casting Line
Situation: An aluminum refinery’s casting line stopped when the master controller threw a memory parity error. The culprit was a degraded 216EA61b board. Task: In high-heat refinery environments, electronic components often age faster. The customer needed a “New” unit, not a “Refurbished” one, to ensure another 10+ years of life. Action: We supplied a verified “New Surplus” board. We included a Fluke 115 measurement report showing stable rail voltages during our 48-hour bench test. Result: The customer was able to resume production with confidence. They subsequently purchased our last remaining unit as a strategic “insurance policy” for their sister plant.
Frequently Asked Questions (FAQ)
Q: These HESG numbers are confusing. Which one is the “real” model number? A: 216EA61b is the overall module designation. The HESG numbers (like HESG324015R1) refer to the specific circuit board assemblies that make up the module. When ordering, it is best to provide all of them so we can ensure the versioning matches your existing system.
Q: My current board has a KHESG324258R1. Is your R3I compatible? A: Usually, a higher “R” suffix (like R3I) indicates a later, backward-compatible revision that fixes known bugs or uses more modern components. However, I always recommend verifying the firmware version on the HESG448230R1 logic board first. We can help you check this if you send us a photo of your board.
Q: Why choose this over a repaired unit from a local shop? A: Repair shops often just fix the “obvious” fault—like a blown capacitor. They don’t replace the hundreds of other components that have also been running for 15 years. Buying our New Surplus means you are getting a board where all components have zero hours of operational wear. It’s the difference between a new engine and a patched-up old one.
Q: Can you ship this today? My plant is down. A: If you order before 4:00 PM (GMT+8), we can typically get it out the same day. For critical “Plant Down” situations, we use DHL Express or FedEx Priority, which usually delivers to Europe or North America in 3-5 business days.
Q: Does this board come with the application software pre-loaded? A: No. Industrial controllers are shipped with “factory default” firmware only. You will need to use your engineering software (like ABB Control Builder) to download your specific project files onto the module after installation.
