Description
The ABB 216EA62 (1MRB150083R1/F, 1MRB178066R1/F) is an industrial analog signal acquisition module designed for ABB REG216 generator and transformer protection systems. It performs analog signal measurement, conditioning, and A/D conversion functions for power system protection applications. The module receives voltage and current signals from CT/PT transformers and converts them into digital data for protection processing and monitoring.
The 216EA62 module is used in power plants, substations, and industrial electrical protection systems where accurate measurement and reliable signal processing are required. It supports modular rack installation and is designed for integration with ABB protection platforms.

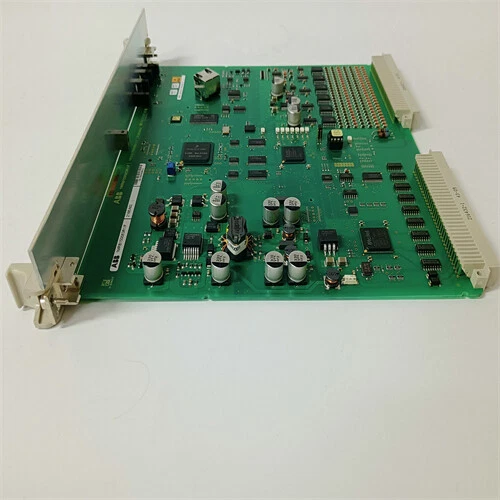

216EA62 1MRB150083R1/F 1MRB178066R1/F
⚙️ Product Features
• Designed for ABB REG216 generator and transformer protection systems.
• Provides analog signal acquisition and analog-to-digital conversion.
• Supports voltage and current measurement inputs from protection transformers.
• High-accuracy sampling for electrical protection calculations.
• Rack-mounted modular design for easy replacement and maintenance.
• Suitable for generator protection, transformer protection, and substation automation applications.
• Provides stable operation in industrial environments with continuous-duty requirements.
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | 216EA62 |
| Series | REG216 Protection System |
| Product Name | Analog Input Module / A-D Converter Unit |
| Place of Manufacture | Sweden |
| Product Status | New Surplus / Original Replacement |
| Dimensions | Approx. 210 × 230 × 80 mm |
| Weight | Approx. 1.2 kg |
| Country of Origin | Sweden |
| Power Requirements | 24 VDC via system rack backplane |
| Discontinued | Legacy product, no longer part of current ABB product portfolio |
❓ Frequently Asked Questions
🔹 Q: What is the main function of ABB 216EA62?
A: The 216EA62 is an analog input acquisition module used to collect electrical signals and convert them into digital values for ABB protection system processing.
🔹 Q: Which ABB system uses this module?
A: It is mainly used in ABB REG216 generator and transformer protection systems.
🔹 Q: What type of signals can the module process?
A: The module is designed for electrical measurement signals such as voltage and current inputs from protection transformers.
🔹 Q: Is ABB 216EA62 a PLC module?
A: No. It is primarily a protection system analog acquisition module rather than a standard PLC I/O module.
🔹 Q: Can 1MRB150083R1/F and 1MRB178066R1/F replace each other?
A: Replacement compatibility depends on the installed REG216 system configuration and hardware revision.
🔹 Q: What industries use this module?
A: Typical applications include power generation plants, substations, industrial electrical systems, and generator protection equipment.
🔹 Q: Does the module require configuration before installation?
A: System parameter verification and compatibility checking are recommended before installation into an operating protection system.
