Description
The ABB 216EA62 is a sophisticated Analog Interface Module designed for the ABB HES 100 system, frequently utilized within high-end power plant automation and complex industrial control architectures. This module serves as a critical bridge between field instruments and the central control system, processing analog signals with high precision. It is built to meet the rigorous demands of power generation environments, offering exceptional reliability, electromagnetic compatibility, and long-term stability. The 216EA62 ensures that sensitive process variables are accurately digitized and communicated to the controller for real-time monitoring and feedback loops.
Technical Specifications and Datasheet
Model Number: 216EA62 Part Numbers: 1MRB178066R1E / 1MRB150083R1E / 1MRB300162R0008 Product Family: HES 100 / Procontrol P13 Module Type: Analog Interface / Input Module Signal Types: Standard Analog (0-20mA, 4-20mA, 0-10V) Resolution: 12-bit to 16-bit processing (application dependent) Operating Temperature: 0 to +55 °C Storage Temperature: -25 to +70 °C Dimensions: 170 mm x 20 mm x 220 mm Weight: 0.65 kg Country of Origin: Switzerland Interface Connection: Rack-mounted backplane connector

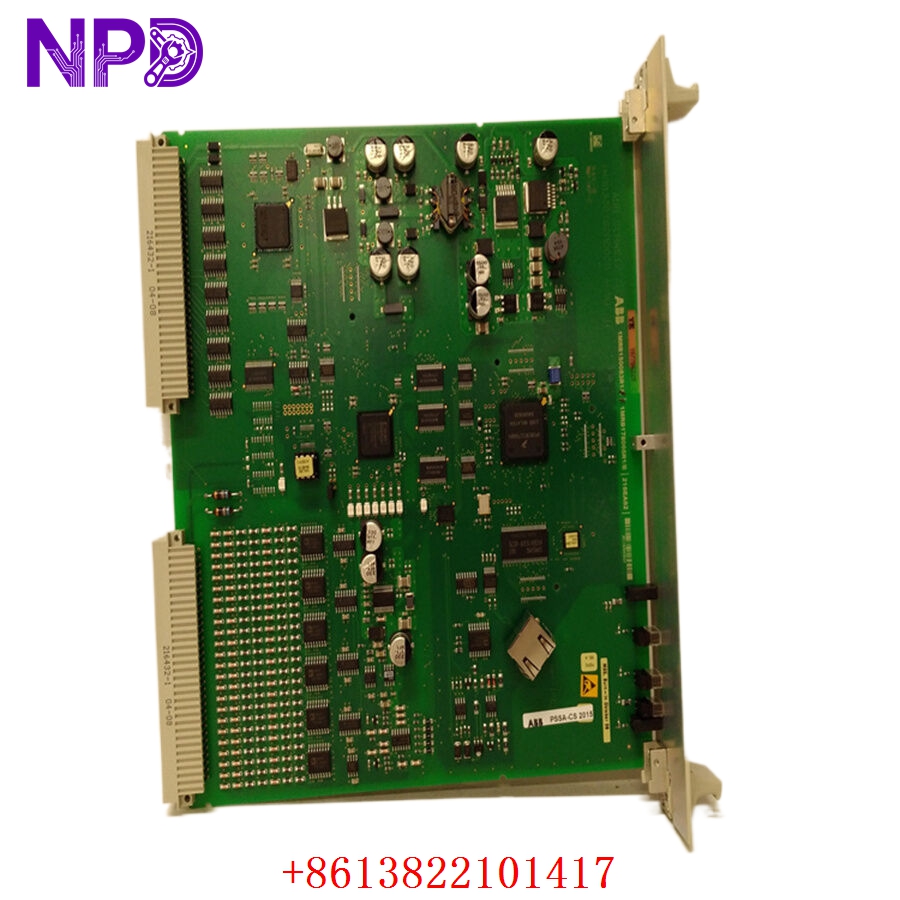

ABB 216EA62 1MRB178066R1E 1MRB150083R1E 1MRB300162R0008

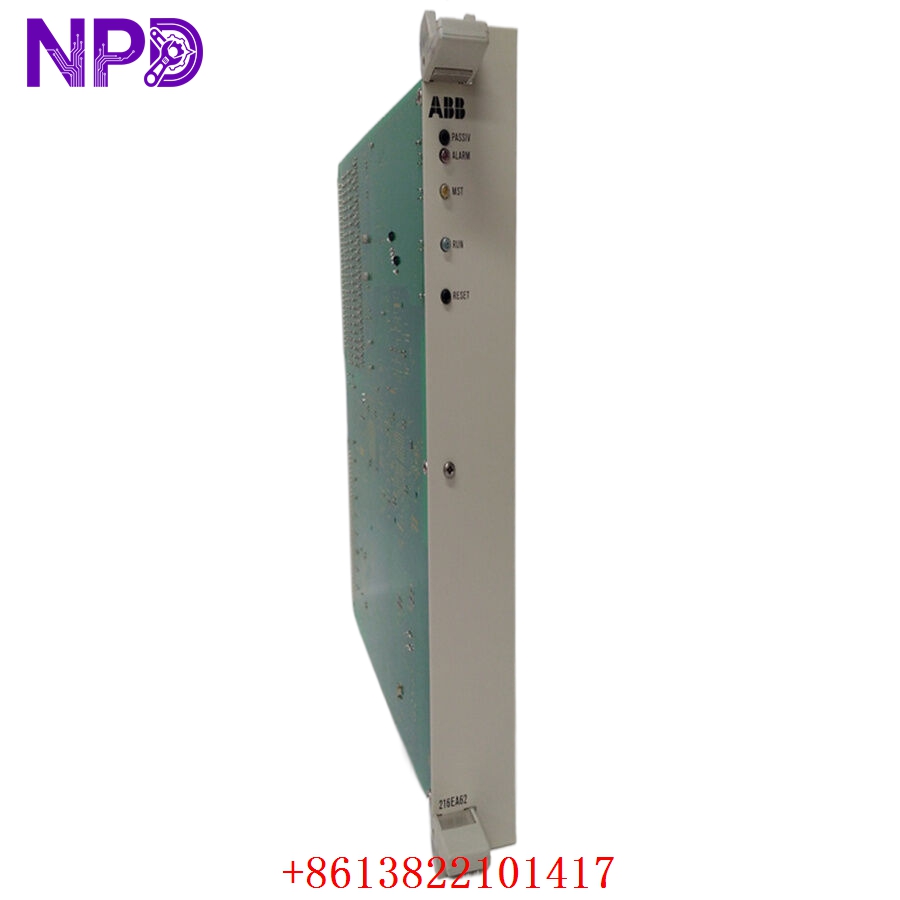

ABB 216EA62 1MRB178066R1E 1MRB150083R1E 1MRB300162R0008

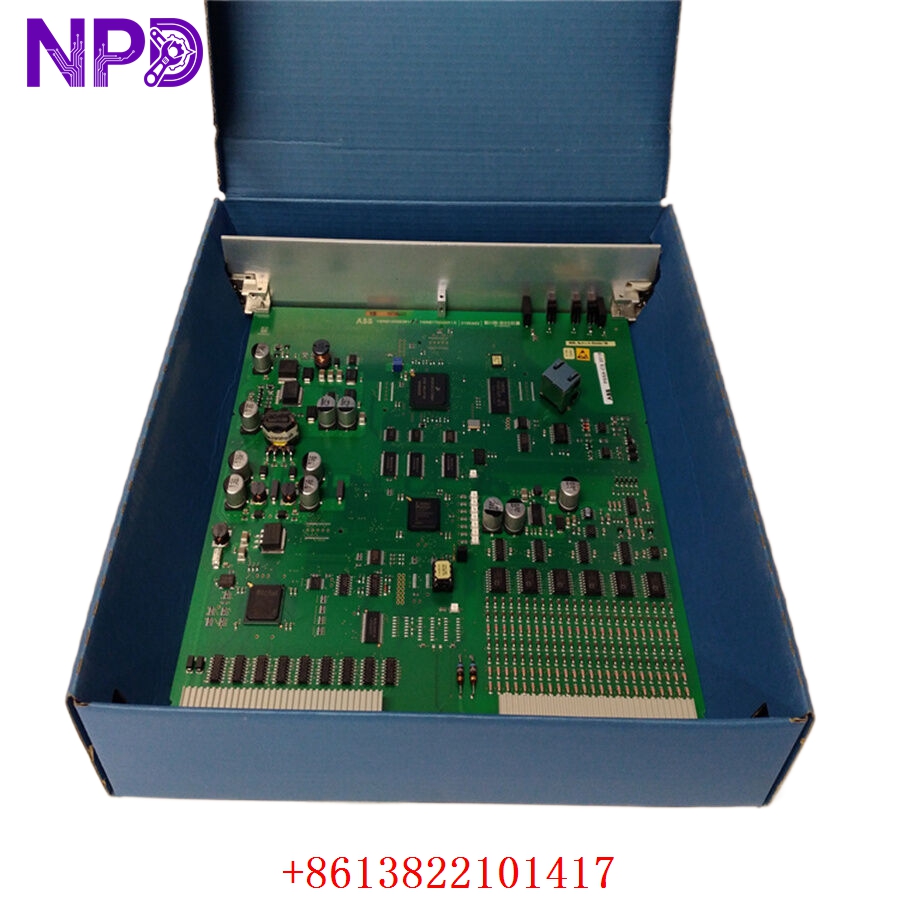

ABB 216EA62 1MRB178066R1E 1MRB150083R1E 1MRB300162R0008
Application Fields
The 216EA62 is primarily found in heavy-duty utility and industrial sectors, including:
- Power Plants: Monitoring turbine parameters, temperature sensors, and pressure transmitters in hydro and thermal facilities.
- Grid Automation: High-precision signal acquisition for substation control systems.
- Heavy Industry: Integration of sensor data in large-scale manufacturing processes.
- Heritage Systems: Maintenance and expansion of existing ABB Procontrol and HES architectures.
Product Instructions and Usage
This module is designed for vertical insertion into a standard ABB system subrack. Before installation, confirm that the module’s hardware address settings (via jumpers or DIP switches if applicable) match the system configuration plan. Ensure the subrack is grounded correctly to protect the analog inputs from electrical noise. The 216EA62 supports front-panel diagnostics via LEDs; a green light typically indicates the “Run” status, while red indicators signify a system or channel fault. When replacing a module, strictly follow the plant’s safety protocols regarding “hot-plugging,” as certain legacy racks may require power-down procedures.
Common Questions and Answers (Q&A)
What is the difference between the multiple part numbers provided? The 1MRB178066R1E is the primary product ID, while the other numbers (1MRB150083R1E and 1MRB300162R0008) often refer to specific hardware revisions, assembly levels, or sub-component IDs used by ABB’s manufacturing system.
Is the 216EA62 compatible with Procontrol P13? Yes, this module is a core component often used in Procontrol P13 and HES 100 architectures for analog signal interfacing.
Does the module require external calibration? The module is calibrated at the factory; however, loop calibration of the entire signal chain (from sensor to software) is recommended during commissioning and annual maintenance.
How do I troubleshoot a signal failure on one channel? Check the field wiring and the sensor first. If the field signal is healthy, use the system diagnostic tools to check for internal module errors or overflow conditions on that specific channel.
Are the inputs isolated? Yes, the 216EA62 typically features high-quality galvanic isolation to protect the internal bus from field-side electrical surges.
