Description
- Model: 216VC62a
- Part Numbers: HESG324442R13E / HESG324442R112F
- Brand: ABB (Switzerland)
- Series: UNITROL 5000 / UNIGLYPH / Advant Controller
- Core Function: Voltage coding and signal conditioning for excitation control
- Product Type: Input/Output Interface Board (New Surplus)
- Key Specs: High-precision analog-to-digital conversion | Galvanic isolation | 6U Eurocard format
- Hardware ID: 216VC62a
- Ordering Code: HESG324442R13E (Standard version) / HESG324442R112F (Enhanced revision)
- Application: Measurement of generator stator voltage and field voltage in UNITROL 5000 systems
- Input Range: Configurable for standard PT (Potential Transformer) secondary levels
- Accuracy: High-resolution measurement for precise Automatic Voltage Regulation (AVR)
- Interface: Standard VME-style backplane connector (96-pin DIN)
- Isolation: Reinforced insulation between high-voltage measurement circuits and low-voltage control logic
- Status Monitoring: Front-panel LEDs for power health and channel activity
- Mounting: Rack-mounted within the excitation control cubicle
- Firmware: Logic integrated into onboard PLDs (Programmable Logic Devices)

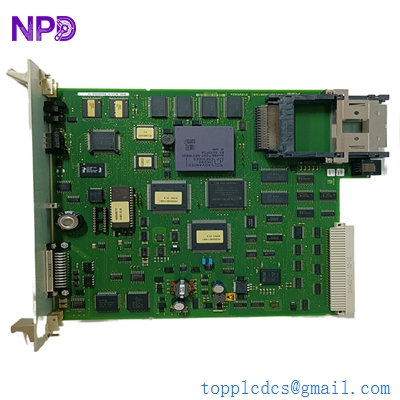

ABB 216VC62a HESG324442R13E HESG324442R112F
Installation & Configuration Guide
Phase 1: Preparation (Pre-Installation)
⚠️ Safety First:
- The 216VC62a interfaces directly with voltage measurement circuits. Ensure all PT fuses are pulled and the generator is de-excited.
- Backup: Document the current jumper settings on the old board. These often define the voltage scaling ratios.
- ESD Protocol: Use a grounded wrist strap. The analog components on this board are sensitive to static-induced offset errors.
Phase 2: Removal of Faulty Module
- Terminal Check: Some versions use front-mounted screw terminals or ribbon connectors for sensing leads. Label these clearly—reversing the polarity of a PT lead can lead to a “Phase Loss” trip.
- Ejection: Release the top and bottom locking levers. Pull the board straight out to avoid damaging the backplane pins.
- Visual Inspection: Check the old board for “heat blooming” around the input resistors. This can indicate a fault in the external PT circuit.
Phase 3: New Module Installation
- Jumper Match (Critical): On the HESG324442R13E, there are typically several jumper banks. You must match these to the old board. These jumpers set the input gain—if set incorrectly, the AVR will “read” the wrong generator voltage.
- Seating: Align the 216VC62a with the rack guides. Push firmly until the levers can be snapped into the locked position.
- Connectivity: Reattach the measurement leads. Ensure the shield wire is connected to the designated ground lug to minimize signal noise.
Phase 4: Commissioning & Testing
- Control Power Test: Switch on the 24V DC control power only. Verify the green “OK” LED is lit.
- Signal Verification: Use the ABB Control Builder or UNITROL Tool to view the “Measured Stator Voltage” value. It should show 0.0V (or residual) while the unit is stopped.
- Excitation “Soft-Start”: During the first startup after replacement, perform a “Soft-Start” to 50% rated voltage to verify the feedback loop is stable and the scaling is correct.

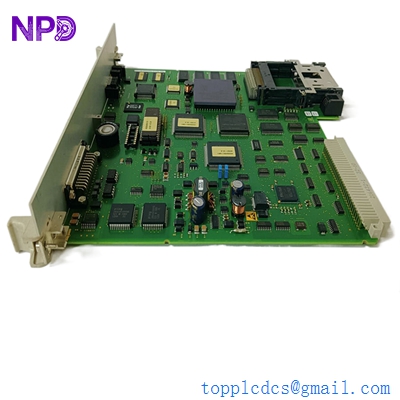

ABB 216VC62a HESG324442R13E HESG324442R112F
Customer Cases & Industry Applications
Case 1: Generator Stability Issues in a Gas Turbine Plant
Situation: A power plant in the Middle East reported unstable reactive power (VAR) oscillations. The UNITROL 5000 system diagnostics indicated “Noisy Voltage Feedback” coming from the 216VC62a unit in the R-core.
Task: The plant was operating at peak ambient temperatures (50°C), and the failure of this feedback board meant the generator had to be switched to “Manual” mode—a high-risk operation for the grid. ABB quoted a long lead time for a replacement board.
Action: We supplied a New Surplus HESG324442R13E. Because it was New Surplus and not “Refurbished,” the internal analog components had zero operational drift.
Result: The board was installed and the jumpers were matched to the site’s PT ratios. The voltage feedback became rock-steady, and the oscillations vanished. The plant engineer noted: “The reliability of a new-old-stock board is far superior to a repaired one in this heat.”
Case 2: Redundancy Failure in a Pumped-Storage Hydro Plant
Situation: A hydro facility used a redundant UNITROL system. A “Diagnostic Error” occurred on the standby channel, pinpointed to the HESG324442R112F board.
Task: While the plant was still running on the primary channel, safety protocols required the unit to be taken offline if redundancy wasn’t restored within 7 days.
Action: We provided the specific HESG324442R112F revision. Since this was a New Surplus part, it included the latest hardware updates that the plant’s original 20-year-old spares lacked.
Result: Redundancy was restored within 48 hours. The facility subsequently ordered another unit to refresh their entire strategic spare parts inventory.

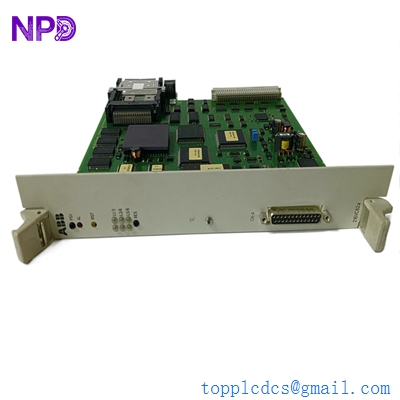

ABB 216VC62a HESG324442R13E HESG324442R112F
Frequently Asked Questions (FAQ)
Q: What is the difference between the R13E and R112F versions? A: Both are 216VC62a hardware. The R112F is typically a later revision with improved noise filtering or component updates for better thermal performance. In most UNITROL 5000 systems, they are backward compatible, but it is always best practice to match the exact R-number of your existing board.
Q: Do I need to calibrate the board after installation? A: Not directly on the board. Calibration is handled by the jumper settings (Hardware) and the scaling parameters in the PLC software (Software). If you match the jumpers from your old board, the “Zero” and “Span” should align perfectly.
Q: Why is this board called a “Coding” unit? A: It “codes” the high-voltage analog signals from the generator PTs into a low-voltage format that the digital processor can understand, while maintaining a strict electrical barrier (coding) for safety.
Q: Is “New Surplus” better than “Refurbished”? A: Honestly, yes. Refurbished boards often have aged electrolytic capacitors or optocouplers that have already seen thousands of hours of heat. New Surplus parts have sat on a shelf in a box—the components are “fresh,” leading to a much longer lifespan once installed.
Q: What if the board doesn’t fix the “Voltage Measurement” error? A: If the error persists, check your PT fuses and the backplane ribbon cables. However, we offer a 12-month warranty. if the 216VC62a itself is faulty, we will replace it or refund you immediately.
