Description
The ABB 216VC62A (Part Number HESG441655R1) is a specialized voltage control module used within the ABB UNITROL series of excitation systems and static frequency converters. It is designed to provide high-precision voltage regulation for large synchronous generators and motors.
Product Parameters (Datasheet)
- Model Number: 216VC62A
- Global ID: HESG441655R1
- Function: Voltage Control and Processing Unit
- System Compatibility: UNITROL 5000 / UNITROL 6000 Excitation Systems
- Operating Voltage: 24V DC (Internal system bus)
- Analog Inputs: High-resolution channels for stator voltage and current sensing
- Processing: Integrated high-speed DSP (Digital Signal Processor)
- Communication: Proprietary ABB high-speed internal bus (ARC-net or similar)
- Mounting: Rack-mount within a 19-inch subrack (System 216/UNITROL)
- Status Indicators: Front-panel LEDs for “Power,” “Run,” and “Error” diagnostics

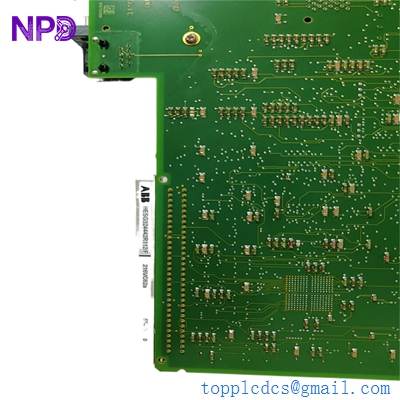

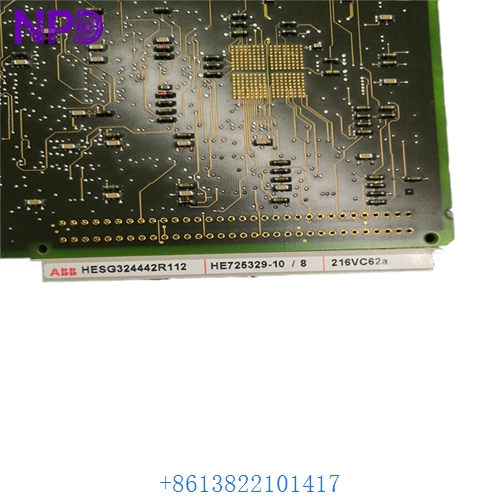

ABB 216VC62A
ABB 216VC62a HESG324442R13E HESG324442R112F
ABB 216VC62a HESG324442R13E HESG324442R112F
ABB 216VC62a HESG324442R13E HESG324442R112F
Country of Origin
This advanced control board was engineered and manufactured in Switzerland by ABB Power Electronics.
Application Fields
The 216VC62A is a critical component in large-scale power infrastructure, including:
- Hydroelectric Plants: Providing stable excitation control for water-driven turbines.
- Thermal Power Plants: Managing voltage regulation for steam and gas turbine generators.
- Nuclear Power: Serving as part of the high-reliability excitation system for main generators.
- Industrial Synchronous Motors: Controlling large motor starters in mining and chemical processing.
- Grid Stabilization: Integrated into Static Var Compensators (SVC) for reactive power control.
Product Usage Instructions
- Rack Installation: Ensure the subrack is powered down. Align the 216VC62A with the guide rails and slide it into the slot until the backplane connector is fully seated.
- Electrostatic Discharge (ESD): This board contains sensitive microprocessors. Always wear a grounded ESD wrist strap when handling the unit.
- Fiber Optic Connections: Many versions of this board use fiber optics for signal isolation. Ensure the optical cables are clean and have a minimum bend radius to prevent signal loss.
- Software Calibration: After replacement, the unit typically requires parameter synchronization via the ABB local HMI or engineering tool (e.g., Control IT or UNITROL software) to match the generator’s specific protection curves.
- LED Diagnostics: During startup, verify the “Run” LED is solid green. A red “Error” LED indicates a hardware mismatch or a failure in the internal self-test.
Product Technical Description
Technically, the 216VC62A acts as the primary regulator loop for the excitation system. It processes the feedback from the generator’s potential transformers (PTs) and current transformers (CTs) to calculate the necessary field current required to maintain a constant terminal voltage. It utilizes a PID (Proportional-Integral-Derivative) control algorithm optimized for high-inertia power systems. The board also includes specialized limiters (V/Hz, over-excitation, and under-excitation) to ensure the generator remains within its Safe Operating Area (SOA).
Q&A (Common Questions)
Q: Is the 216VC62A interchangeable with the 216VC61? A: No. While they belong to the same family, the 216VC62A often features upgraded processing capabilities or different I/O mapping. Always check the specific HESG part number.
Q: Does this board store the system parameters? A: System parameters are usually stored in the central controller’s non-volatile memory and downloaded to the 216VC62A during the boot sequence.
Q: Can this board be used in a UNITROL 1000 system? A: No. The UNITROL 1000 is a compact AVR, while the 216VC62A is designed for the modular, rack-based UNITROL 5000/6000 systems.
Q: What is the most common cause of failure for this board? A: Failures are often related to thermal stress over decades of operation or voltage surges on the sensing inputs from the generator.
Similar Model Recommendations
- ABB 216VC61A (Earlier version of the voltage controller)
- ABB 216CC62 (Central Control Unit)
- ABB 3BHE022293R0101 (Gate Unit for UNITROL)
- ABB 216EA61 (Analog Input/Output Board)
- ABB UNITROL 6000 (The complete excitation system series)
For more information on the ABB 216VC62A and other UNITROL excitation system spares, please contact our technical sales team.
