ABB 3ASC25H209 3BSC980004R784 DATX110 | I/O Terminal Block

Description

• Model: ABB 3ASC25H209 DATX110 (3BSC980004R784)
• Brand: ABB
• Series: MasterPiece 200 / Advant DCS Series
• Core Function: I/O Interface and Terminal Board for signal distribution
• Product Type: I/O Terminal Unit / Interface Board
• Key Specs: Multi-channel connectivity, DIN-rail mountable, 24 V DC compatible

• Designation: DATX110
• Input Voltage: Nominal 24 V DC
• Mounting Type: Standard DIN rail or specialized subrack
• Connector Type: Multi-pin ribbon cable header and screw terminals
• Operational Temperature: 0 to +55°C
• Storage Temperature: -40 to +70°C
• Humidity: 5% to 95% non-condensing
• Dimensions: Standard ABB MasterPiece form factor
• Weight: Approx. 0.45 kg

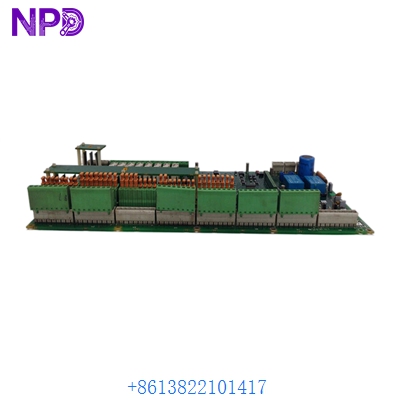

ABB 3ASC25H209 DATX110 3BSC980004R784

Application Scenarios & Pain Points

In many legacy Advant or MasterPiece 200 installations, the physical interface between the field wiring and the controller is often the weakest link. Over years of operation in humid or corrosive environments, terminal boards like the DATX110 can suffer from oxidized contacts or traces that “ghost” intermittently. When a channel fails during a critical process, finding an exact match that hasn’t been sitting in a damp warehouse for a decade is the real challenge.

Typical Application Scenarios:

1. Pulp & Paper Mills: Managing high-density I/O for paper machine drives where vibration and chemical exposure are constant.
2. Power Plant Control: Acting as the interface for auxiliary turbine monitoring where signal integrity is non-negotiable for safety.
3. Marine Systems: Used in older vessel automation for engine monitoring; space is tight, and reliability in salty air is key.
4. Metals Processing: Handling feedback from rolling mills where electromagnetic interference (EMI) requires robust board design.

Real-World Case: The “Ghost” Signal at a Chemical Plant

Background: A regional chemical plant was running an older ABB MasterPiece system. Suddenly, the flow rate readings on Tank 4 began fluctuating wildly, though the manual gauges were rock steady.

Problem: The maintenance team swapped the AI (Analog Input) module, but the problem persisted. They suspected the field transmitter, but it calibrated perfectly. The culprit? A hairline crack on the ABB 3ASC25H209 DATX110 board caused by years of thermal cycling.

Solution: They couldn’t wait 4 weeks for a “refurbished” unit from a local scavenger. We supplied a New Surplus unit from our climate-controlled stock. It was tested on our Advant rack and shipped via overnight express.

Result: The board was swapped in 15 minutes during a scheduled shift change. The signals stabilized immediately, saving the plant from a potential $50,000-per-day emergency shutdown.

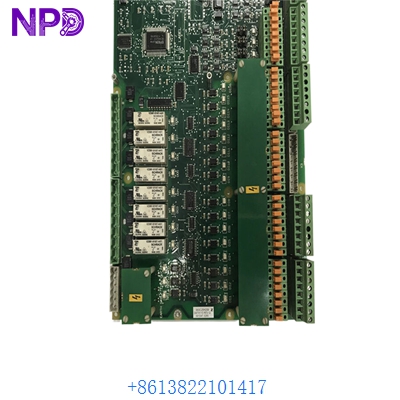

ABB 3ASC25H209 DATX110 3BSC980004R784

Compatible Replacement Models

If the 3ASC25H209 is unavailable, you might look at these options, but be careful with the “Revision” levels.

Pro Tip: Always check the “3BSC” number on your existing board. While “DATX110” is the functional name, the 3BSC number identifies the specific manufacturing revision.

Troubleshooting Quick Reference

Important Note: In my experience, 70% of DATX110 issues are actually mechanical. Before buying a new one, Take a Photo of the wiring, disconnect it, and spray the connectors with a high-quality electronic contact cleaner. If that doesn’t fix the “flickering” signal, the internal traces are likely compromised, and it’s time for a replacement.

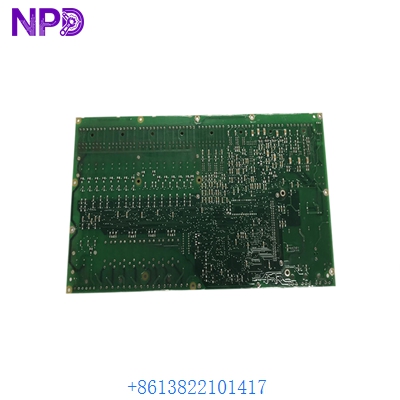

ABB 3ASC25H209 DATX110 3BSC980004R784
