Description

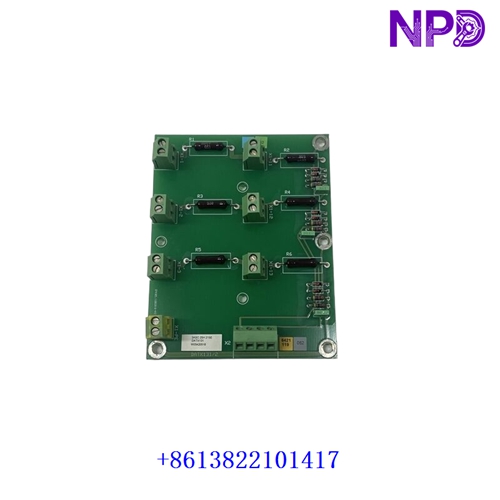

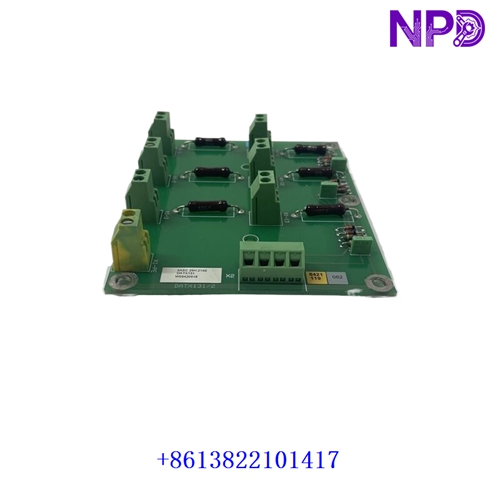

The ABB 3ASC25H215E DATX131 is an industrial electronic board associated with ABB automation and power-control equipment. Available references identify DATX131 as a signal-conditioning / voltage-divider type board used for processing electrical measurement signals within industrial control equipment.
The board is intended for integration into an existing ABB control architecture rather than operation as a standalone PLC CPU. Its role is related to conditioning or scaling electrical signals so that the connected control electronics can process measurement information correctly.
🔧 Main Function
The DATX131 can be used for voltage signal conditioning and measurement-interface functions. A voltage-divider circuit scales an incoming electrical signal to an appropriate level for downstream measurement or control electronics.
Because several aftermarket listings incorrectly describe this part as a generic communication adapter or CPU, the exact function should be confirmed from the original cabinet drawing, board markings, and hardware revision before replacement.
🏭 Typical Applications
• ABB industrial control systems
• Power electronics equipment
• Motor and drive control systems
• Electrical measurement circuits
• Process automation cabinets
• Power-generation equipment
• Legacy ABB automation installations
• Industrial control-system maintenance
📋 Product Datasheet
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | DATX131 |
| Part Number | 3ASC25H215E |
| Product Type | Signal Conditioning / Voltage Divider Board |
| Main Function | Voltage Signal Scaling & Conditioning |
| Application | Industrial Control / Measurement |
| Board Technology | Industrial Electronic PCB |
| Signal Type | Electrical Voltage Measurement |
| Input Range | Application-dependent |
| Output Range | Application-dependent |
| Power Supply | System-dependent |
| Communication | Not applicable as primary function |
| Installation | ABB Equipment / Control Cabinet |
| Mounting | Internal Equipment Mounting |
| Operating Temperature | System-dependent |
| Dimensions | Approx. 100 × 100 × 50 mm* |
| Weight | Approx. 1.0–1.5 kg* |
| Country of Origin | ABB manufacturing location dependent |
| Hardware Revision | Application-dependent |
*Publicly available reseller specifications are inconsistent for this legacy part, so dimensions, weight, electrical ranges, and environmental specifications should be verified from the actual unit before use.
⚡ Key Features
• ABB DATX131 industrial board
• Voltage-divider / signal-conditioning function
• Designed for electrical measurement circuits
• Suitable for industrial control equipment
• Compact PCB-based construction
• Useful for ABB legacy-system maintenance
• Intended for integration into existing equipment
🔌 System Integration
The DATX131 is used as part of a larger ABB electrical or automation assembly. It should be connected according to the original wiring diagram and signal-conditioning design.
For replacement work, compare terminal locations, board markings, resistor networks, connectors, hardware revision, and surrounding boards. A visually similar board should not be substituted solely on the basis of the DATX131 designation.
🛠️ Installation Notes
Before installation, verify 3ASC25H215E / DATX131, hardware revision, electrical schematic, connector arrangement, and the equipment in which the board is installed.
Disconnect power before replacement and discharge stored electrical energy where applicable. Record the original wiring and board orientation before removing the existing unit.
After installation, check signal levels before connecting the board to sensitive control electronics. Verify that the scaled measurement signal corresponds with the expected system value.
⚙️ Commissioning Checklist
• Verify complete part number
• Confirm board revision
• Check original wiring
• Inspect connectors
• Verify signal polarity
• Check input voltage
• Measure conditioned output
• Compare signal scaling
• Check connected control-system diagnostics
• Record final measurement values
⚠️ Compatibility Notice
The ABB 3ASC25H215E DATX131 should be treated as a dedicated ABB industrial board rather than a generic PLC or communication module. Public listings provide conflicting descriptions of its function, so exact compatibility should be established from the equipment documentation and the physical board identification before installation.
📦 Product Identification
Brand: ABB
Model: DATX131
Part Number: 3ASC25H215E
Product Type: Voltage Divider / Signal Conditioning Board
Function: Electrical Signal Conditioning
Application: Industrial Automation & Power Control
Installation: ABB Control Equipment
