Description

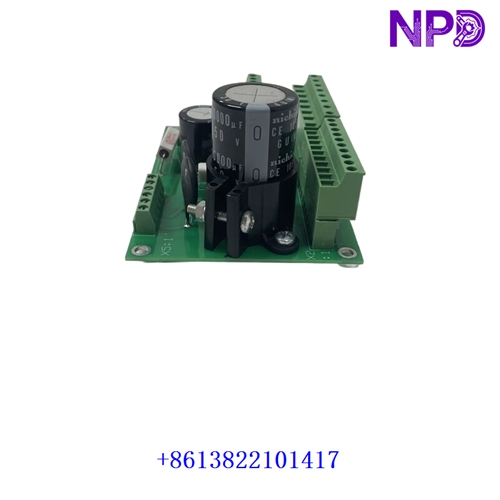

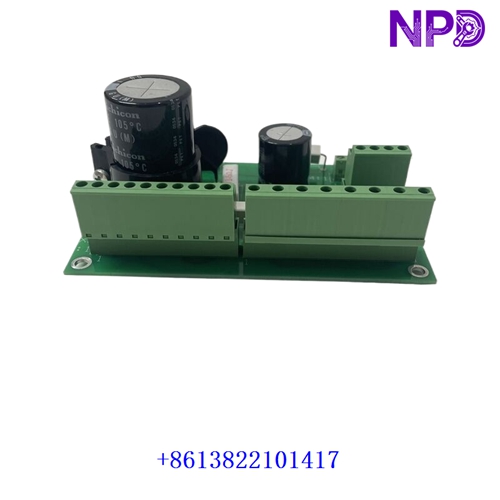

The ABB 3ASC25H705-7 (also written as 3ASC25H7057) is an industrial control and signal interface board manufactured by ABB for high-power drive electronics, converter cabinets, and industrial drive systems (such as ABB DCS series DC drives, PSR/PPD power electronic systems, and high-capacity AC converters). Installed within the drive’s main control rack or chassis, the 3ASC25H705-7 handles internal control signal routing, gate pulse timing distribution, and backplane bus interfacing with system processor cards.
Key Specifications & Identification
| Attribute | Details |
| Manufacturer | ABB |
| Part / Model Code | 3ASC25H705-7 / 3ASC25H7057 |
| Product Category | Drive Control & Signal Interface Board |
| System Compatibility | ABB High-Power Drives, Converter Systems, PSR / DCS Series Power Electronics |
| Signal Processing | High-speed firing pulse distribution and rack interface signal routing |
| Form Factor | Open circuit board assembly engineered for slot mounting in ABB drive racks |
| Status / Indicators | Onboard LED status indicators and diagnostic test points |
Primary System Functions
- Drive Signal Interfacing: Connects central processor units to power-stage gate drivers and feedback transducers, routing speed/torque setpoints and system diagnostic data across internal buses.
- Noise Suppression & Signal Isolation: Provides onboard optical or galvanic isolation barriers to isolate low-voltage processing logic from high-power converter switching noise and voltage spikes.
- Gate & Pulse Distribution: Assists in translating control commands into precisely timed firing sequences for high-power thyristor (SCR) or IGBT bridges.
- Fault Diagnostics & Protection: Continuously monitors channel integrity and onboard power rails, sending real-time hardware trip/inhibit signals to the drive controller if an anomaly is detected.
Servicing & Handling Guidelines
- High Voltage & Stored Energy Safety: High-power converter assemblies operate with lethal AC/DC voltages and large capacitive banks. Completely de-energize the system, execute Lockout/Tagout (LOTO), and verify zero residual energy before opening cabinet doors or handling the board.
- Electrostatic Discharge (ESD) Controls: Onboard ICs and precision logic chips are sensitive to static electricity. Always wear a grounded anti-static wrist strap when removing, installing, or servicing the card.
- Jumper & DIP Switch Verification: Inspect the card for hardware jumpers or address switches prior to installation, ensuring all settings strictly mirror the configuration of the original board.
- Secure Slot Alignment & Latching: Ensure the board is fully seated into the backplane connector and retaining hardware is tightened to protect against contact degradation from industrial vibration.
