Description
The ABB 3BDH000033R1 is a specialized industrial network interface module designed for integration within ABB’s premium Distributed Control System (DCS) platforms, including the Freelance and System 800xA control ecosystems. This module establishes a deterministic, high-speed bridge between the primary controller backplane and peripheral serial networks, facilitating seamless communication protocols like Modbus RTU or proprietary serial data streams. Engineered for sub-millisecond process updates, it provides the robust isolation, processing speed, and error checking necessary to prevent network latency and maintain absolute process synchronization in heavy-duty automated facilities.

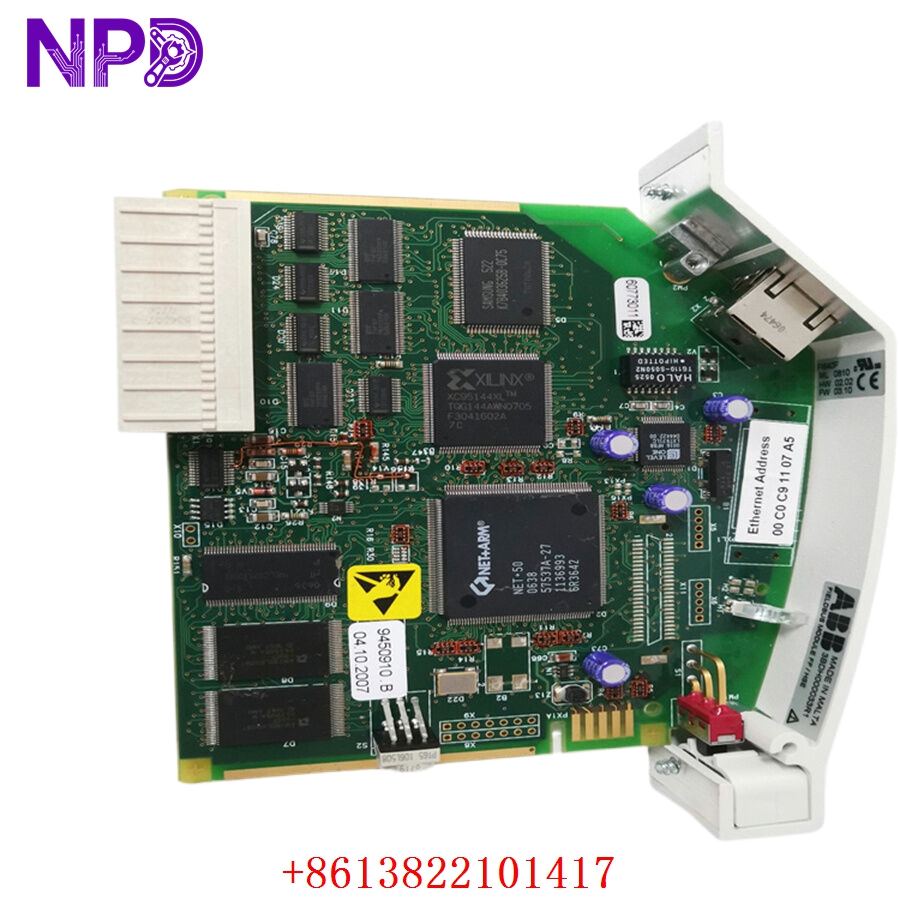

ABB 3BDH000033R1

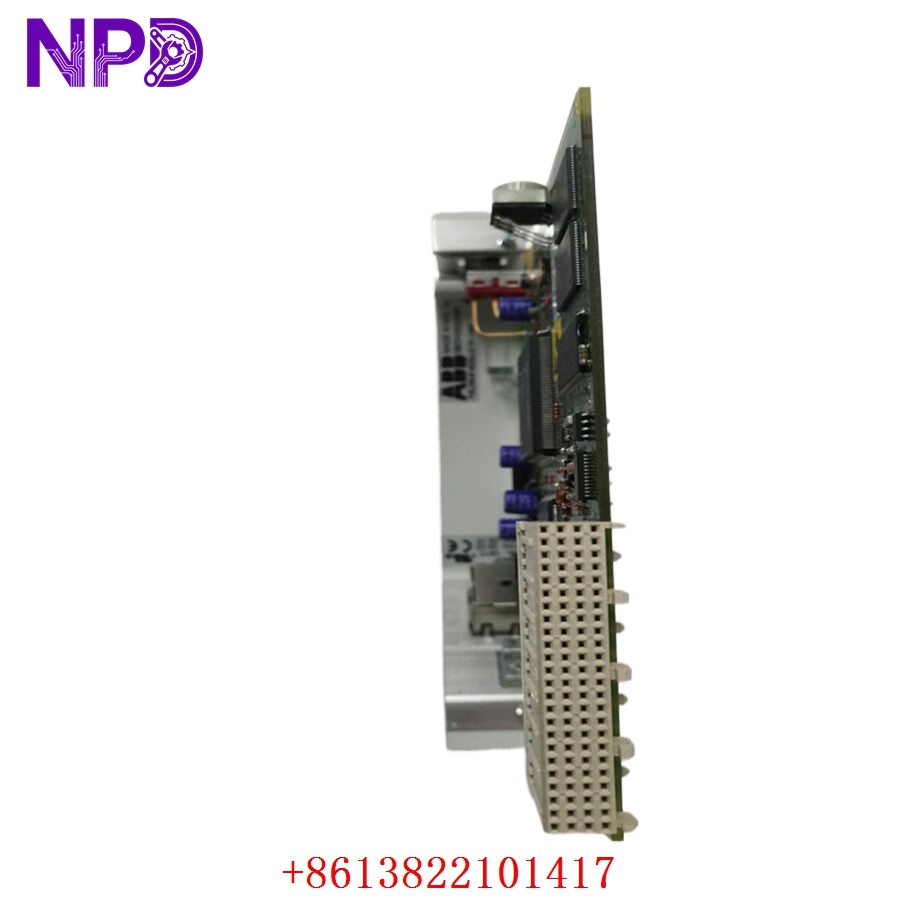

ABB 3BDH000033R1

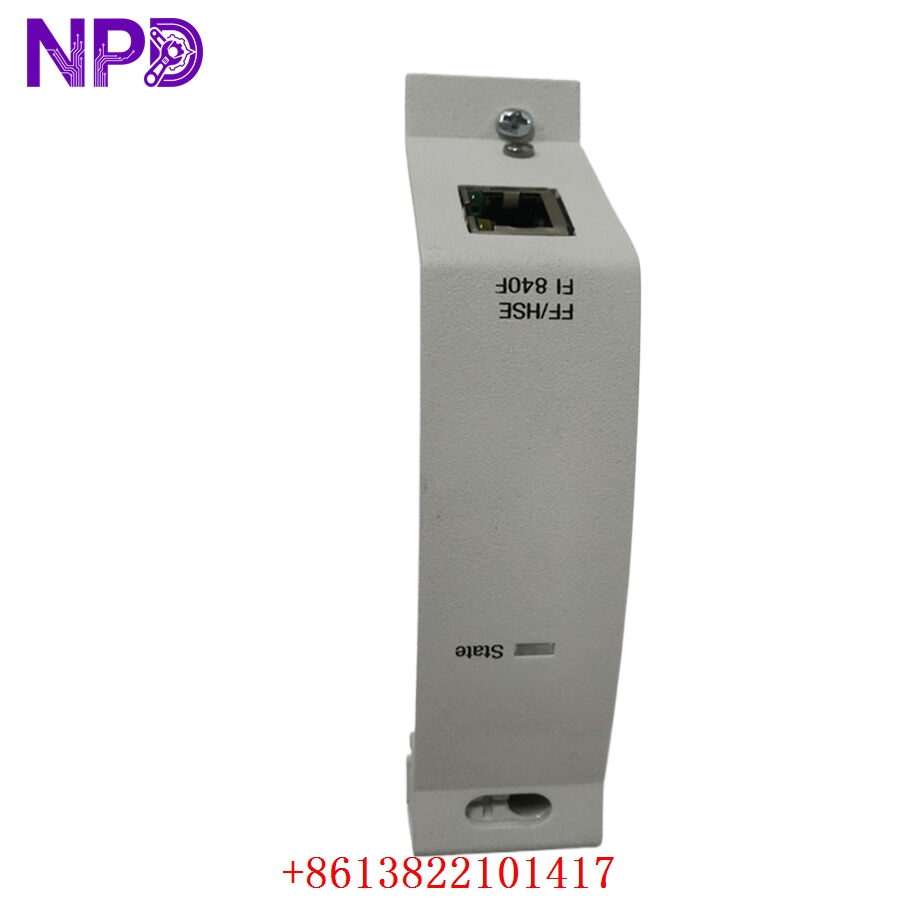

ABB 3BDH000033R1
Product Datasheet & Specifications
- Manufacturer: ABB
- Part Number: 3BDH000033R1
- Functional Designation: Serial Master/Slave Communication Interface
- Protocol Compatibility: Modbus RTU, RS-232, RS-485, and specialized serial subsystems
- Internal Power Supply: Derived directly from the standard module rack bus
- Transmission Rate: Up to 115.2 kbps configuration-dependent
- Isolation Protection: Integrated galvanic isolation up to 1500 V DC
- Approximate Dimensions: 13.8 cm x 4.2 cm x 11.5 cm
- Approximate Weight: 260 grams (0.26 kg)
- Country of Origin: Germany / Sweden
- Certification Standards: CE, UL Listed, CSA, ATEX Zone 2 Compliant
Key Application Fields
- Power Generation Utilities: Interfaces localized burner management systems and auxiliary turbine instrumentation loops into the central DCS.
- Petrochemical & Refining Processes: Connects remote chemical analyzers, flow meters, and smart valve positioners securely across the plant network.
- Manufacturing Automation Cells: Manages coordination loops between central controllers and localized Variable Frequency Drives (VFDs) or CNC sub-systems.
- Water Treatment Operations: Integrates distributed dosing pumps and remote telemetry units (RTUs) across large processing networks.
- Marine Control Networks: Handles sensor aggregation on shipboard monitoring grids, resisting ambient vibration and electrical interference.
Product Instructions & Guidelines
- Slot Alignment and Insertion: Ensure the main DCS rack or carrier base is entirely powered down before module installation. Slide the 3BDH000033R1 along the designated rack guide rails until the backplane multi-pin plug clicks firmly into position.
- Signal Wiring and Grounding: Terminate the communication lines to the matching terminal block or DB9 interface. Use high-quality shielded twisted-pair cabling and ensure the outer shield drain wire connects cleanly to the rack earth ground to filter out electromagnetic noise.
- Address and Jumper Settings: Verify whether any physical address wheels or internal DIP switches must be set according to your system architecture documentation before locking the front-panel tab.
- Control Software Mapping: Use ABB Control Builder or CBF engineering toolsets to import the module hardware definition, map the relevant input/output database variables, and set up your communication parameters (baud rate, parity, stop bits).
- Preventive Maintenance Checks: Periodically monitor the status indicator LEDs to ensure normal communication states. Clean any cumulative dust off the faceplate vents using non-conductive, anti-static cleaning instruments.
Q&A – Frequently Asked Questions
- Q: What do the different diagnostic LEDs on the front panel of the module indicate?
- A: Typically, a steady green “Run” or “OK” LED indicates normal hardware operation, while alternating “Rx/Tx” LEDs signal active data transmission. A solid or flashing amber/red LED indicates a communication timeout, a CRC error, or a localized hardware fault.
- Q: Can this module run both RS-232 and RS-485 networks simultaneously on different channels?
- A: No, individual ports must be explicitly configured via software or internal wiring configurations to operate as either RS-232 or RS-485, depending on the requirements of your field devices.
- Q: Is this component hot-swappable if a communication failure occurs?
- A: In specific ABB redundant carrier setups, hot-swapping is supported. However, in standard simplex configurations, a complete power-down is strongly advised to safeguard configuration data and protect against voltage surges.
- Q: How long is the standard warranty period for this industrial module?
- A: Like most industrial spare parts, it carries a standard 12-month warranty from the date of shipment, covering any potential defects in manufacturing or materials.
