Description
- Model: 3BHB003154R0101 (GVC707AE01)
- Brand: ABB (Switzerland)
- Series: ACS6000 / MEGADRIVE-LCI / Power Electronics
- Core Function: Gate pulse distribution and feedback monitoring for IGCT/Thyristor stacks
- Product Type: Gate Variable Control (GVC) / Interface Board
- Key Specs: Fiber-optic isolation | High-speed firing logic | 3BHB003149 Sub-assemblies
- Control Voltage: 24 V DC internal logic
- Communication: High-speed fiber-optic links (HFBR series)
- Board Revision: AE01 (Check for compatibility with older AD/AC versions)
- Sub-components: Includes 3BHB003149P201 and P104 daughter cards
- IGCT Support: Designed for high-current Integrated Gate-Commutated Thyristors
- Diagnostic LEDs: Power, Status, Fault, and Fiber Link Activity
- Insulation Class: Medium Voltage isolated interface
- Environmental: Conformal coating for industrial contaminants
Application Scenarios & Pain Points
Engineering Pain Points: In medium voltage (MV) drives, timing is everything. If the GVC707 unit has even a microsecond of jitter in its firing pulses, you risk a catastrophic “shoot-through” in the phase module, which can blow an IGCT stack worth $10k+. The biggest headache for integrators is fiber-optic signal degradation. Dust or micro-cracks in the fiber leads can cause intermittent “External Fault” trips that are a nightmare to track down during commissioning.
Typical Application Scenarios:
- Oil & Gas – Large Compressor Drives Driving 10 MW+ compressors in LNG plants. These systems require the GVC707 to maintain perfect synchronization with the grid during start-up.
- Marine Propulsion Used in cruise ships or LNG carriers with electric propulsion. The 3BHB003154R0101 handles the high-torque commutation logic required for heavy seas.
- Mining – Grinding Mills Controlling massive SAG mills where high starting torque and variable speed are critical for processing ore.
- Metals – Rolling Mills Precision speed control for steel rolling where load steps are aggressive and the drive must react in milliseconds.
The “Ghost Trip” Case Study
Background: A steel mill in East Asia was experiencing random “Phase U Overcurrent” trips on an ACS6000 drive. The site team replaced the IGCTs twice, but the problem persisted.
Problem: We analyzed the firing pulses using a high-speed oscilloscope and found that the 3BHB003149P201 board was intermittently dropping the pulse width on one channel due to a failing capacitor in the gate-drive power circuit. It looked like a load fault, but it was actually a control fault.
Solution: We swapped the entire 3BHB003154R0101 (GVC707AE01) assembly.
Result: The drive returned to 24/7 operation immediately. The plant saved roughly $120,000 in avoided downtime and further unnecessary IGCT replacements. This is why we always recommend keeping a full GVC assembly in stock—trying to repair these at the component level during a shutdown is a recipe for disaster.

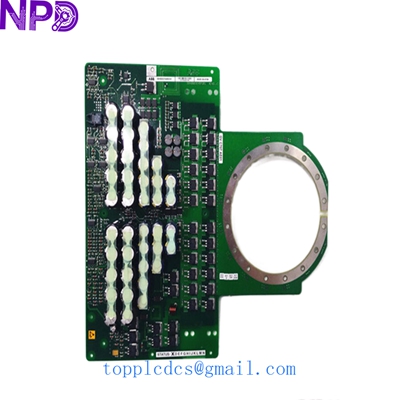

ABB 3BHB003154R0101 GVC707AE01 3BHB003149P201 3BHB003149P104 5SXE05-0156
Compatible Replacement Models
| Original Model | Replacement/Related | Compatibility | Role |
| 3BHB003154R0101 | GVC707AE02 | ✅ Direct Replace | Newer hardware revision, improved thermal stability |
| 3BHB003149P201 | 3BHB003149P101 | ⚠️ Limited | Different logic gate configuration; check circuit diagram |
| GVC707AE01 | GVC736 Series | ❌ Incompatible | Designed for different frame sizes/power ratings |
Integrator’s Warning: ABB often updates the firmware on the PEC (Power Electronic Controller) that talks to these GVC boards. When replacing a 3BHB003154R0101, ensure your PEC version supports the AE01 hardware revision. If you see a “Board Mismatch” error on the CDP control panel, a firmware flash may be required.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Related Part | Check Method |
| No “Link” LED on Fiber Port | Fiber cable snap or Dirty Port | 3BHB003149P201 | Use a fiber light tester to check continuity |
| “Gate Supply Fault” | 5SXE05-0156 failure | ✅ 5SXE05-0156 | Check 24V DC input at the module pins |
| Intermittent “Firing Error” | AE01 Logic jitter | ✅ GVC707AE01 | Check for heat marks on the board surface |
| Commutation Failure | Logic/Pulse sync loss | ✅ 3BHB003154 | Verify fiber pulse timing with a scope |
Field Note: ❗ NEVER unplug the fiber optic cables while the MV cabinet is energized. Even if the control power is on, the potential for high-voltage discharge in the vicinity is high. Always follow the “LOTO” (Lock-Out Tag-Out) procedure for the main breaker before touching the GVC assembly.

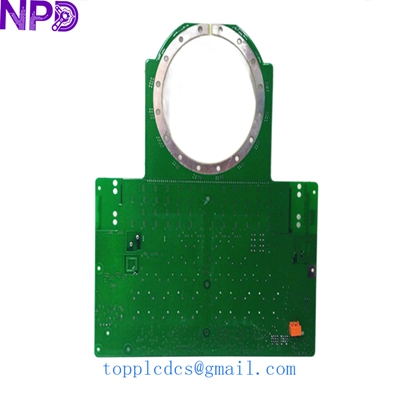

ABB 3BHB003154R0101 GVC707AE01 3BHB003149P201 3BHB003149P104 5SXE05-0156
Strategic Quality Assurance (Our SOP)
- Source Verification: All boards undergo serial number tracking to ensure they are genuine ABB Swiss-made parts.
- Fiber-Optic Loopback Test: We test every HFBR port for signal attenuation using an optical power meter.
- Static Load Test: The 3BHB003149P201 is powered up to check for stable rail voltages (+5V, +15V, -15V).
- Component Health: We use thermal imaging to ensure no “hot spots” exist on the gate drive capacitors.
