Description
The ABB 3BHB003688R0101 is a high-reliability Integrated Gate-Commutated Thyristor (IGCT) gate driver unit. It is engineered for precision control in high-power semiconductor applications, specifically designed to interface with ABB’s power conversion systems and medium-voltage drives.
Technical Parameters
- Model: 3BHB003688R0101
- Component Type: Gate Driver Board / Pulse Amplifier
- Compatibility: ACS6000, ACS5000, and Megadrive-LCI systems
- Power Supply: Integrated via system backplane or dedicated DC input
- Signal Transmission: Fiber optic interface for high-voltage isolation
Product Specifications
- Dimensions: 230mm x 160mm x 35mm
- Weight: 1.2 kg
- Cooling: Natural air convection within the drive cabinet
- Connector Type: Multi-pin PCB header and HFBR fiber optic ports

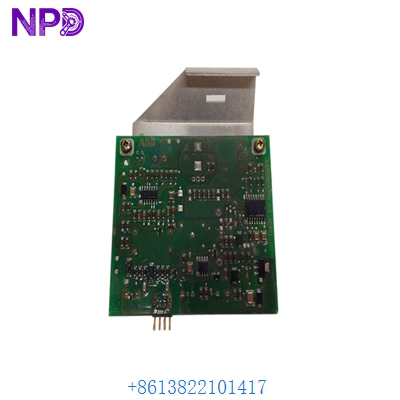

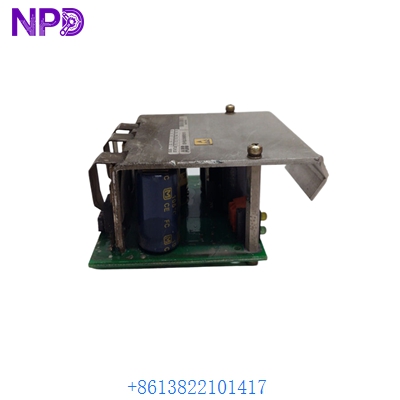

ABB 3BHB003688R0101
Application Fields
- Medium Voltage AC Drives (MV Drives)
- Wind Power Converters
- Marine Propulsion Systems
- Static Var Compensators (SVC) in Grid Automation
Origin & Operating Requirements
- Origin: Switzerland / Estonia (ABB Power Electronics Facilities)
- Temperature: -25°C to +70°C (Storage); 0°C to 55°C (Operating)
- Installation: Must be handled in an ESD-safe environment to prevent semiconductor damage
- Maintenance: Periodic inspection of fiber optic connections for signal integrity
Q&A
- Q: Can this board replace older 3BHB series versions?
- A: It is typically backward compatible within the same drive family, but firmware revision checks are recommended.
- Q: Why are fiber optics used for this board?
- A: Fiber optics provide total electrical isolation between the control logic and the high-voltage power stage.
- Q: Does this unit include the IGCT semiconductor?
- A: No, this is the driver board; the IGCT power module is sold separately
